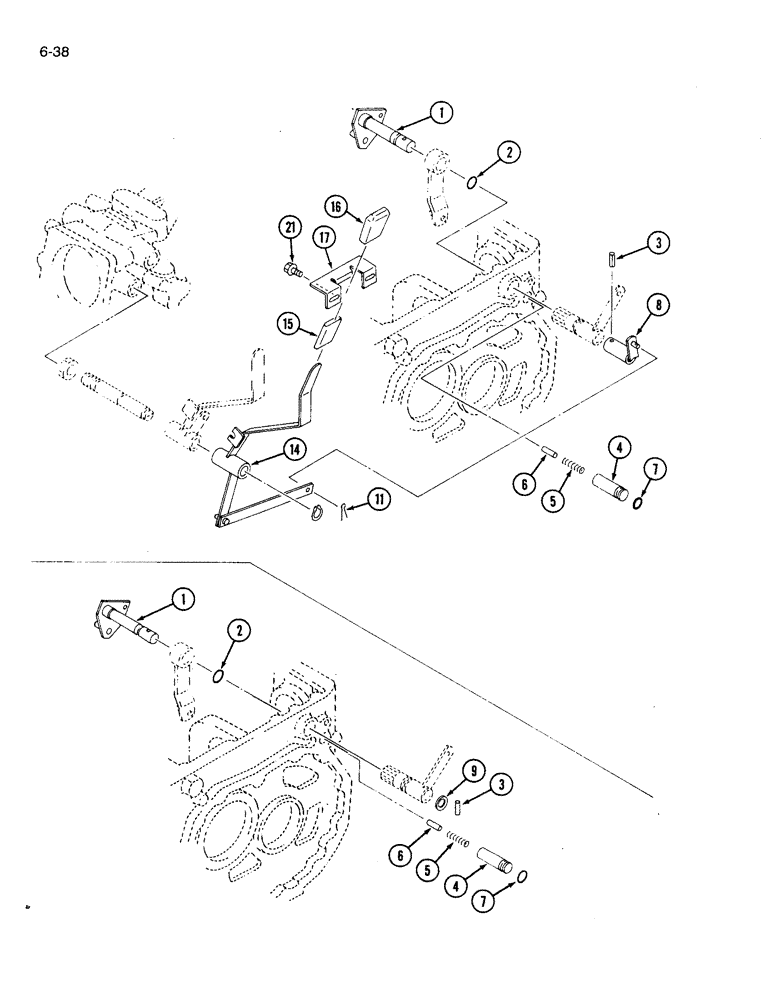

Запчасти Case IH 1120 (6-38) - MID PTO CONTROLS (06) - POWER TRAIN

1

1991342C1

SHIFTING UNIT

LEVER shift, mid PTO

1шт.

2

1273523C1

O-RING

O-RING, 12 mm ID

1шт.

3

838-1632

LOCK PIN,6mm OD x 32mm L, Slotted

Spring M6 x 32, Slotted

1шт.

4

1991343C1

BOSS

1шт.

5

1273482C1

VALVE SPRING

SPRING shift cover

1шт.

16

99396C1

KEY

PIN shift position

1шт.

7

1288101C1

O-RING

O-RING, 16 mm ID

1шт.

8

1991345C1

ARM

pivot, mid PTO

1шт.

9

1991346C1

WASHER

1шт.

11

632-602

PIN

cotter, 2.5 x 16 mm

1шт.

1992582C1

LEVER

MID PTO LEVER ASSEMBLY, Includes Ref. 14 and 15

1шт.

14

1991348C1

LEVER

mid PTO

1шт.

15

1992321C1

TUBE

PTO lever

1шт.

16

99326C1

KNOB

power takeoff lever

1шт.

17

1991349C1

PLATE

BRACKET lever, mid PTO

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.
