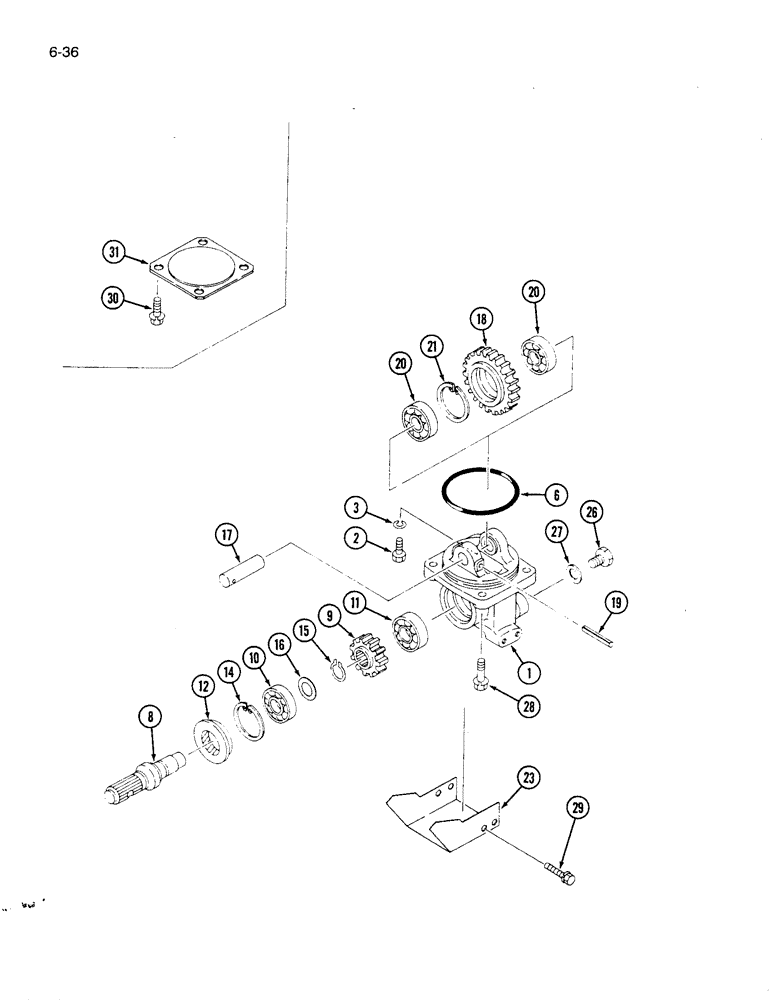

Запчасти Case IH 1120 (6-36) - MID PTO (06) - POWER TRAIN

1

1991336C1

CASE

HOUSING mid PTO

1шт.

2

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

6

1962513C1

O-RING

O-RING bearing holder

1шт.

8

1991338C1

SHAFT

mid PTO

1шт.

9

1991339C1

GEAR

21 tooth

1шт.

10

1271857C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

11

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

12

1273188C1

OIL SEAL

SEAL oil

1шт.

14

933032R1

SNAP RING,M52, Int

RING retaining, internal, 56 mm OD

1шт.

15

933128R1

SNAP RING,M25, Ext

RING retaining, extrenal, 23 mm ID

1шт.

16

1275063C1

THRUST WASHER

thrust

1шт.

17

99117C1

SHAFT HOUSING

SHAFT bearing

1шт.

18

1991340C1

GEAR

35 tooth

1шт.

19

838-5545

LOCK PIN,M5 x 45, Slotted

PIN spring

1шт.

20

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

21

933032R1

SNAP RING,M52, Int

RING retaining, internal, 56 mm OD

1шт.

23

1991341C1

COVER

mid PTO

1шт.

26

1992844C1

PLUG

1шт.

27

1963085C1

SEALING WASHER

seal

1шт.

28

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

3шт.

892-11010

LOCK WASHER,M10

3шт.

29

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

30

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

Tractors without mid PTO Hex, M10 x 1.25 x 25, 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

Tractors without mid PTO M10

4шт.

31

1991337C1

COVER

tractors without mid PTO

1шт.
