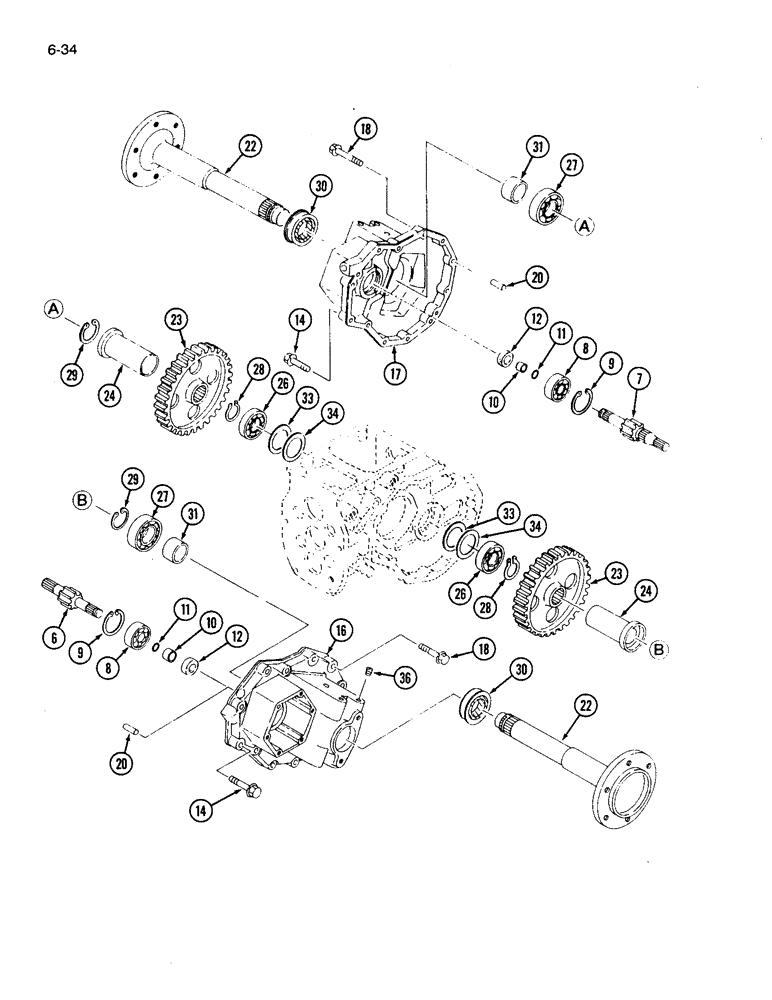

Запчасти Case IH 1120 (6-34) - REAR AXLE FINAL DRIVE (06) - POWER TRAIN

6

1991319C1

SHAFT

differential, left

1шт.

7

1991320C1

SHAFT

differential, right

1шт.

8

1962986C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

BEARING clutch

2шт.

9

933108R1

SNAP RING,M62, Int

RING retaining, internal, 66.74 mm OD

2шт.

10

1269470C1

SPACER

BUSHING differential shaft

2шт.

11

1269875C1

O-RING

25 mm ID

2шт.

12

1273186C1

OIL SEAL

SEAL oil

2шт.

14

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

hex, 10 - 1.25 x 45 mm, class 5.6

18шт.

892-11010

LOCK WASHER,M10

18шт.

16

1991322C1

CASE

HOUSING rear axle, left

1шт.

17

1991323C1

CASE

HOUSING rear axle, right

1шт.

18

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

hex, m10-1.25 x 55 class 8.8 znd cc 6/96

6шт.

892-11010

LOCK WASHER,M10

6шт.

20

837-10020

DOWEL,M10 x 20

M10 x 20

4шт.

22

1991324C1

SHAFT

rear axle

2шт.

23

1991325C1

GEAR

72 tooth

2шт.

24

1991326C1

COLLAR

2шт.

26

1271859C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

27

1271860C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

28

933283R1

SNAP RING,M45, Ext

RING retaining, external, 41 mm ID

2шт.

29

933288R1

SNAP RING,M85, Int

RING retaining

2шт.

30

1991327C1

OIL SEAL

oil

2шт.

31

1991328C1

BUSHING

2шт.

1992581C1

SHIM KIT

KIT Shim, axle, Includes Ref. 33 and 34

2шт.

33

1271873C1

SHIM

72 mm OD

1шт.

34

1271874C1

SHIM

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG drain

8шт.
