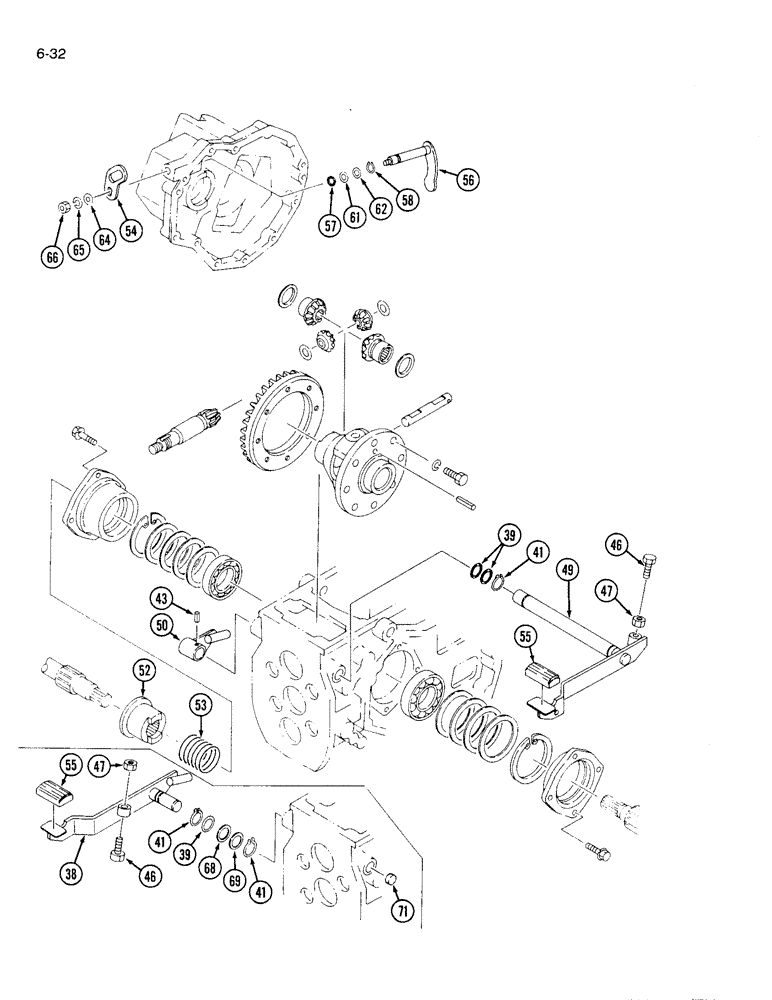

Запчасти Case IH 1120 (6-32) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

38

1991311C1

PEDAL

differential lock, for syncromesh transmission

1шт.

39

1288101C1

O-RING

O-RING, 16 mm ID

2шт.

41

933123R1

SNAP RING,M20, Ext

RING retaining, external, 18 mm ID

1шт.

43

838-1840

LOCK PIN,8mm OD x 40mm L, Slotted

PIN roll, for tractors with hydrostatic transmission

1шт.

46

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

47

825-1410

NUT,M10, Cl 8

1шт.

49

1991314C1

PEDAL

differential lock, for tractors with hydrostatic transmission

1шт.

50

1991315C1

ARM

differential lock, for tractors with hydrostatic transmission

1шт.

52

1991316C1

COLLAR

shaft

1шт.

53

1269469C1

VALVE SPRING

SPRING hub

1шт.

54

1991317C1

ARM

lever

1шт.

55

1992272C1

PEDAL

COVER pedal

1шт.

56

1991318C1

SHIFTING UNIT

ARM shift

1шт.

57

1269870C1

O-RING

O-RING, 11 mm ID

1шт.

58

1271818C1

CIRCLIP,M13

RING retaining

1шт.

1269551C1

SET

KIT Shim, lever, Includes Ref. 61 and 62

1шт.

61

NSS

NOT SOLD SEPARAT

SHIM

1шт.

62

NSS

NOT SOLD SEPARAT

SHIM

1шт.

64

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened

1шт.

65

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

66

825-1408

NUT,M8, Cl 8

1шт.

1992320C1

SET

KIT Shim, for syncromesh transmission

1шт.

68

NSS

NOT SOLD SEPARAT

SHIM

1шт.

69

NSS

NOT SOLD SEPARAT

SHIM

1шт.

71

1962638C1

SEAL

CAP seal, for tractors with hydrostatic transmission

1шт.
