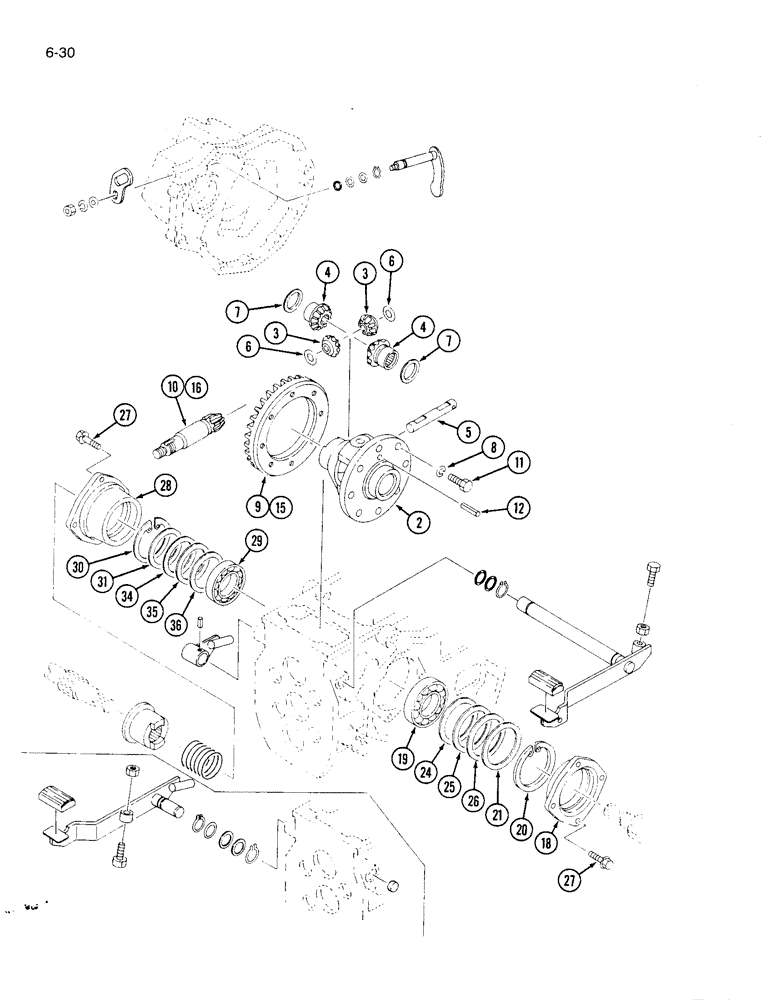

Запчасти Case IH 1120 (6-30) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

1992578C1

CASE ASSY.

DIFFERENTIAL ASSEMBLY, for wheel drive tractors, Includes Ref. 2 - 12

1шт.

1991303C1

CASE ASSY.

DIFFERENTIAL ASSEMBLY, for MFD tractors, Includes Ref. 2 - 16

1шт.

2

1269473C1

CASE

HOUSING differential

1шт.

3

1269483C1

GEAR WHEEL

GEAR pinion, 10 tooth

2шт.

4

1269479C1

GEAR WHEEL

GEAR side, 16 tooth

2шт.

5

1269465C1

SHAFT HOUSING

SHAFT pinion gear

1шт.

6

1269466C1

THRUST WASHER

thrust

2шт.

7

1269467C1

THRUST WASHER

thrust

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

1992579C1

GEAR-SET

SET Gear, pinion shaft, used with 2 wheel drive tractors, Includes Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT pinion

1шт.

11

1991305C1

BOLT

hex

8шт.

12

838-1640

LOCK PIN,M6 x 40, Slotted

PIN spring

1шт.

1991306C1

GEAR

SET Gear, pinion shaft, used with MFD tractors, Includes Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT pinion

1шт.

18

1991307C1

HOLDER

bearing, for mechanical and hydrostatic transmissions

1шт.

19

1271861C91

BALL BEARING

BALL BEARING ASSEMBLY

1шт.

20

933077R1

SNAP RING,M90, Int

RING retaining, internal, 96 mm OD

1шт.

21

1991308C1

SLEEVE CYLINDER

SHIM liner

1шт.

1992580C1

SET

KIT Shim, Includes Ref. 24, 25 and 26

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.07 mm

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.20 mm

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.40 mm

1шт.

27

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

892-11010

LOCK WASHER,M10

8шт.

28

1991309C1

HOLDER

bearing

1шт.

29

1271854C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

30

1271817C1

CIRCLIP,M9

RING retaining

1шт.

131

1991310C1

SLEEVE CYLINDER

SHIM liner

1шт.

1273173C1

SHIM

KIT Shim, differential, Includes Ref. 34, 35 and 36

1шт.

34

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.1 mm

1шт.

35

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.2 mm

1шт.

36

NSS

NOT SOLD SEPARAT

SHIM bearing, 0.4 mm

1шт.
