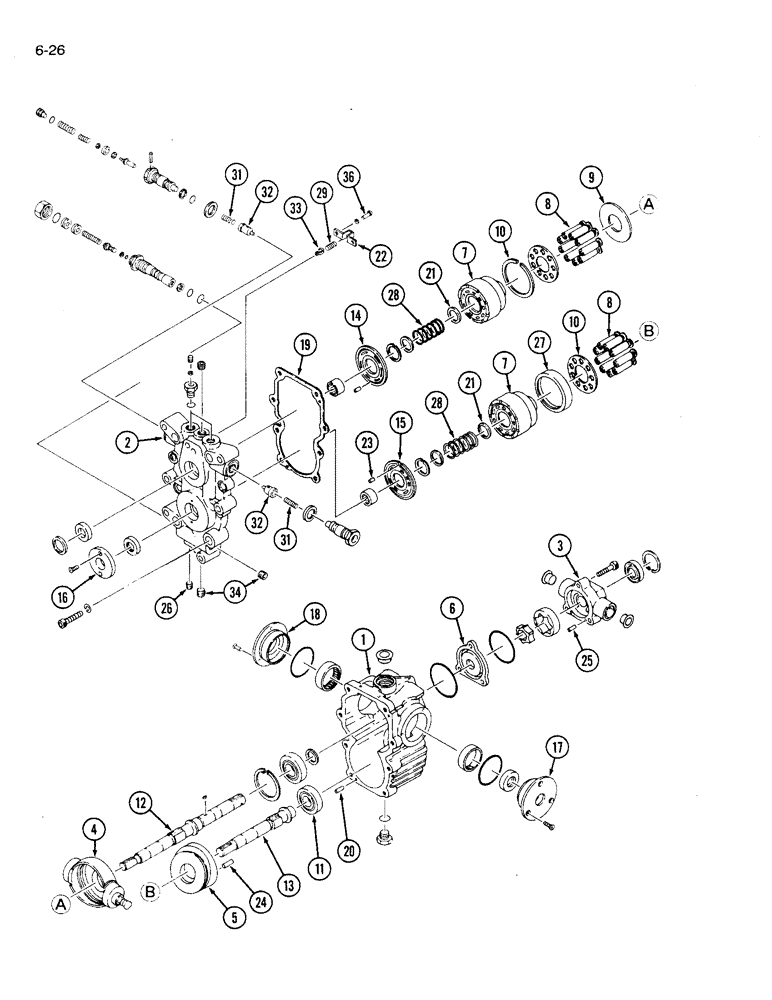

Запчасти Case IH 1120 (6-26) - HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1991467C1

TRANSMISSION

HOUSING transmission

1шт.

2

1991610C1

BLOCK

port

1шт.

3

1992243C1

PUMP

HOUSING charge pump

1шт.

4

1991612C1

PLATE

swash

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE swash

1шт.

6

1991615C1

PLATE

transmission housing

1шт.

7

NSS

NOT SOLD SEPARAT

BLOCK cylinder

2шт.

8

NSS

NOT SOLD SEPARAT

TRANSMISSION PISTON ASSEMBLY

18шт.

9

1991618C1

PLATE

thrust

1шт.

10

1991665C1

PLATE

RETAINER piston assembly

2шт.

11

1991080C1

BALL BEARING

ASSEMBLY

1шт.

12

1991760C1

SHAFT

hydrostatic transmission

1шт.

13

1991771C1

SHAFT

hydrostatic transmission

1шт.

14

1991772C1

PLATE

valve

1шт.

15

1991773C1

PLATE

valve

1шт.

16

1991774C1

PLATE

bearing

1шт.

17

1992244C1

COVER

housing, left

1шт.

18

1992245C1

COVER

housing, right

1шт.

19

1991775C1

GASKET

transmission block

1шт.

Part of Seal Kit P/N 1992240C1

1шт.

20

1991776C1

PIN

dowel

2шт.

21

NSS

NOT SOLD SEPARAT

RETAINER spring

4шт.

22

1991777C1

RETAINER

spring

1шт.

23

1991778C1

PIN

dowel

2шт.

24

1991795C1

PIN

1шт.

25

1991796C1

PIN

2шт.

26

1991797C1

PLUG

drain

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER block

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING compression

2шт.

29

1991798C1

SPRING

compression

1шт.

31

1991800C1

SPRING

valve

2шт.

32

1991812C1

VALVE POPPET

POPPET valve

2шт.

33

1991816C1

VALVE

1шт.

34

1991820C1

PLUG

3шт.

35

1991869C1

RING

retaining, not shown

1шт.

36

863-6010

HEX SOC SCREW,M6 x 10mm, Cl 12.9

BOLT, Hex Soc Hd, M6 x 10, 12.9

2шт.

1992240C1

SEAL KIT

Seal, Includes Ref. 19 and Ref. 45, 49, 50, 55, 56, 76, 77, 78, 80 and 81 on Figure 6-28

1шт.

1992242C1

MOTOR, HYDRAULIC

BLOCK ASSEMBLY, not shown

1шт.
