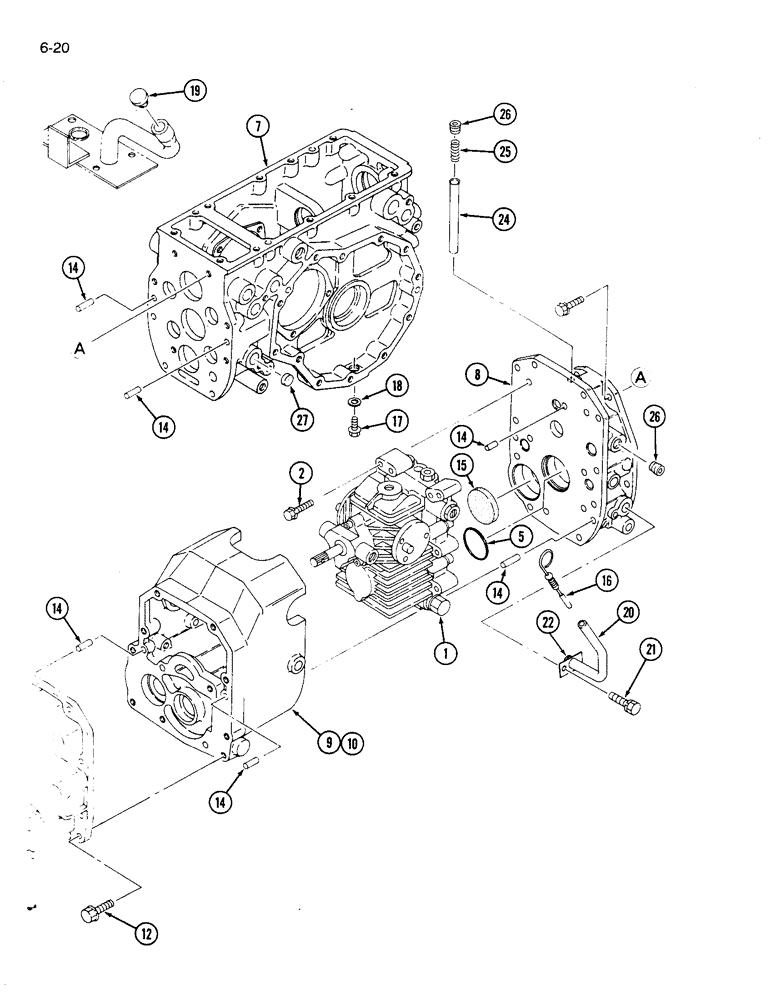

Запчасти Case IH 1120 (6-20) - HYDROSTATIC TRANSMISSION HOUSING (06) - POWER TRAIN

1

1991276C1

UNIT

HYDROSTATIC TRANSMISSION ASSEMBLY

1шт.

2

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

hex

6шт.

892-11010

LOCK WASHER,M10

6шт.

5

1962520C1

O-RING

56 mm ID

1шт.

7

1991229C1

CASE

HOUSING transmission

1шт.

8

1991277C1

CASE

HOUSING section, transmission

1шт.

9

1991278C1

COVER

hydrostatic transmission, used on MFD tractors

1шт.

10

1991279C1

COVER

hydrostatic transmission, for 2 wheel drive tractors

1шт.

12

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

26шт.

892-11010

LOCK WASHER,M10

26шт.

14

837-10020

DOWEL,M10 x 20

M10 x 20

6шт.

15

1963242C1

SEAL ASSY.

PLUG rubber, for 2 wheel drive tractors

1шт.

16

1961923C1

GAUGE ASSY.

DIPSTICK fluid level

1шт.

17

1992844C1

PLUG

2шт.

18

1963085C1

SEALING WASHER

seal

2шт.

19

1991814C1

CAP

oil

1шт.

20

1992319C1

TUBE

DIPSTICK TUBE ASSEMBLY

1шт.

21

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

22

1282749C1

O-RING

O-RING, 12 mm ID

1шт.

24

1992576C1

TUBE

1шт.

25

1992577C1

SPRING

1шт.

26

444699

PLUG,Hex Soc, 3/8"-18

pipe, hex socket head, 3.8 inch PT

1шт.

127

1962638C1

SEAL

CAP seal, for 2 wheel drive tractors

1шт.
