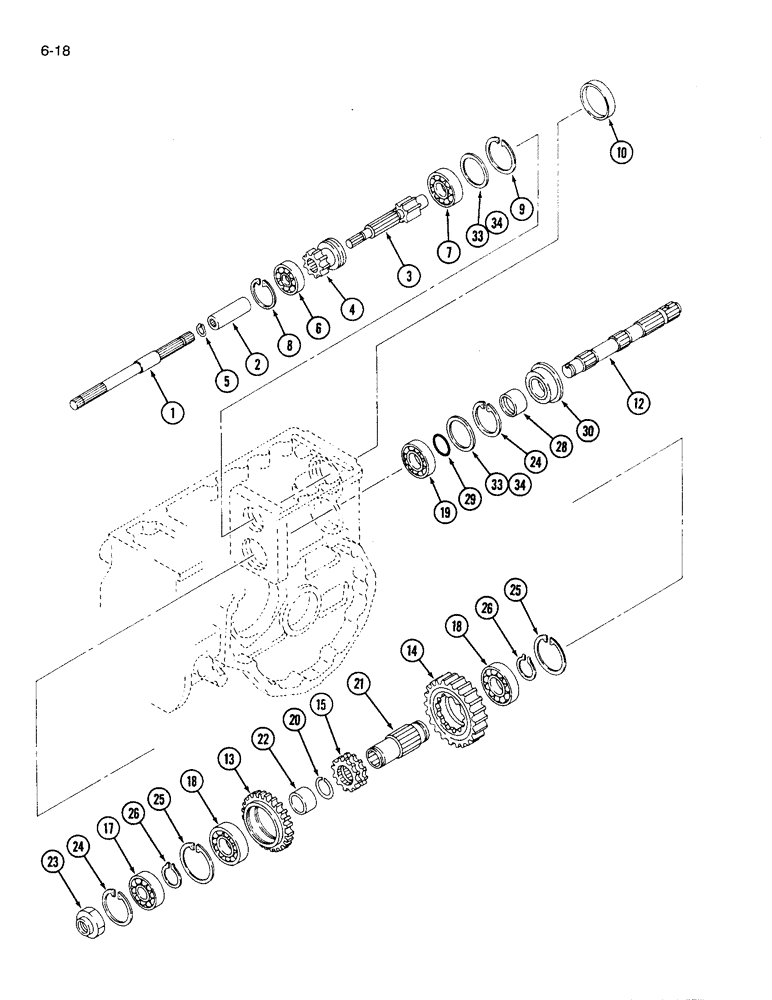

Запчасти Case IH 1120 (6-18) - TRANSMISSION LIVE PTO SHAFT AND GEARS (06) - POWER TRAIN

1

1992575C1

SHAFT

PTO

1шт.

2

1991265C1

COUPLING

shaft

1шт.

3

1991266C1

SHAFT

PTO drive

1шт.

4

1991267C1

GEAR

17 tooth

1шт.

5

933328R1

SNAP RING,M16, Ext

RING retaining

1шт.

6

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

7

1271864C91

CRANKSHAFT BEARING

BALL BEARING ASSEMBLY

1шт.

8

933032R1

SNAP RING,M52, Int

RING retaining, internal, 56 mm OD

1шт.

9

933108R1

SNAP RING,M62, Int

RING retaining, internal, 66.74 mm OD

1шт.

10

1963242C1

SEAL ASSY.

PLUG rubber

1шт.

12

1991268C1

SHAFT

PTO

1шт.

13

1991269C1

GEAR

41 tooth

1шт.

14

1991270C1

GEAR

48 tooth

1шт.

15

1991271C1

GEAR

clutch

1шт.

17

1271864C91

CRANKSHAFT BEARING

BALL BEARING ASSEMBLY

1шт.

18

1271859C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

19

1271858C91

BALL BEARING

ASSEMBLY

1шт.

20

1991272C1

RING

retaining

1шт.

21

1991273C1

SHAFT

COLLAR splined

1шт.

22

1991274C1

COLLAR

1шт.

23

1962038C1

NUT

hex, special, 25 mm - 1.5

1шт.

24

933108R1

SNAP RING,M62, Int

RING retaining, internal, 66.74 mm OD

2шт.

25

933076R1

SNAP RING,M72, Int

RING retaining, internal, 76 mm OD

2шт.

26

933029R1

SNAP RING,M35, Ext

RING retaining, external, 32 mm OD

2шт.

28

1991275C1

BUSHING

1шт.

29

1269878C1

O-RING

O-RING, 30 mm ID

1шт.

30

1275073C1

OIL SEAL

SEAL oil

1шт.

1273013C2

STRIPPER PACKAGE

KIT Shim, power takeoff shaft

1шт.

33

NSS

NOT SOLD SEPARAT

SHIM

1шт.

34

NSS

NOT SOLD SEPARAT

SHIM

1шт.
