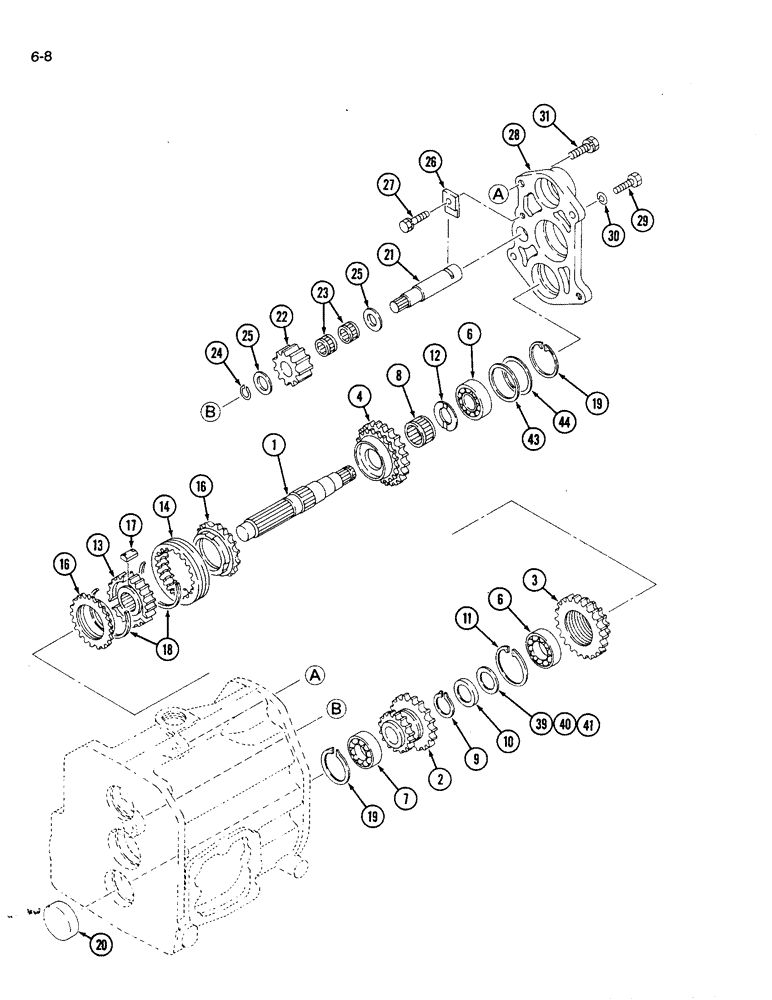

Запчасти Case IH 1120 (6-08) - MECHANICAL TRANSMISSION MAIN SHAFT AND GEARS (06) - POWER TRAIN

1

1991237C1

SHAFT

main

1шт.

2

1991238C1

GEAR

22 and 30 tooth

1шт.

3

1991239C1

GEAR

36 tooth

1шт.

4

1991240C1

GEAR

36 tooth

1шт.

6

1271857C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

7

1991241C1

BALL BEARING

BEARING ASSEMLY

1шт.

8

1273329C91

NEEDLE BEARING

NEEDLE BEARING ASSEMBLY

1шт.

9

933086R1

SNAP RING,M30, Ext

RING - retaining, external, 28 mm

1шт.

10

1991242C1

COLLAR

1шт.

11

1991910C1

RING

retaining

1шт.

12

1273579C1

WASHER

grooved, 42 mm OD

1шт.

13

1991243C1

HUB

gear

1шт.

14

1269516C1

GEAR WHEEL

GEAR, 36 tooth

1шт.

16

1282619C1

SYNCHRONIZER

transmission

2шт.

17

1282620C1

KEY

gear

3шт.

18

1282621C1

VALVE SPRING

SPRING retaining

2шт.

19

933032R1

SNAP RING,M52, Int

RING retaining, internal, 56 mm ID

1шт.

20

1962637C1

SEAL

CAP seal, for machines equipped with 2 wheel drive

1шт.

21

1991244C1

SHAFT

main, rear

1шт.

22

1991245C1

GEAR

19 tooth

1шт.

23

1991246C1

NEEDLE BEARING

BEARING ASSEMBLY

2шт.

24

933123R1

SNAP RING,M20, Ext

RING retaining, external, 18 mm ID

1шт.

25

1991247C1

SLEEVE CYLINDER

SHIM

2шт.

26

1991248C1

PLATE

BRACKET plate

1шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

28

1991249C1

COVER

housing

1шт.

29

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

2шт.

30

892-11010

LOCK WASHER,M10

2шт.

31

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

2шт.

892-11010

LOCK WASHER,M10

2шт.

1991179C1

SHIM

KIT Shim, Includes Ref. 39, 40 and 41

1шт.

39

NSS

NOT SOLD SEPARAT

SHIM

1шт.

40

NSS

NOT SOLD SEPARAT

SHIM

1шт.

41

NSS

NOT SOLD SEPARAT

SHIM

1шт.

1991605C1

SHIM KIT

KIT Shim, Includes Ref. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SHIM

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM

1шт.
