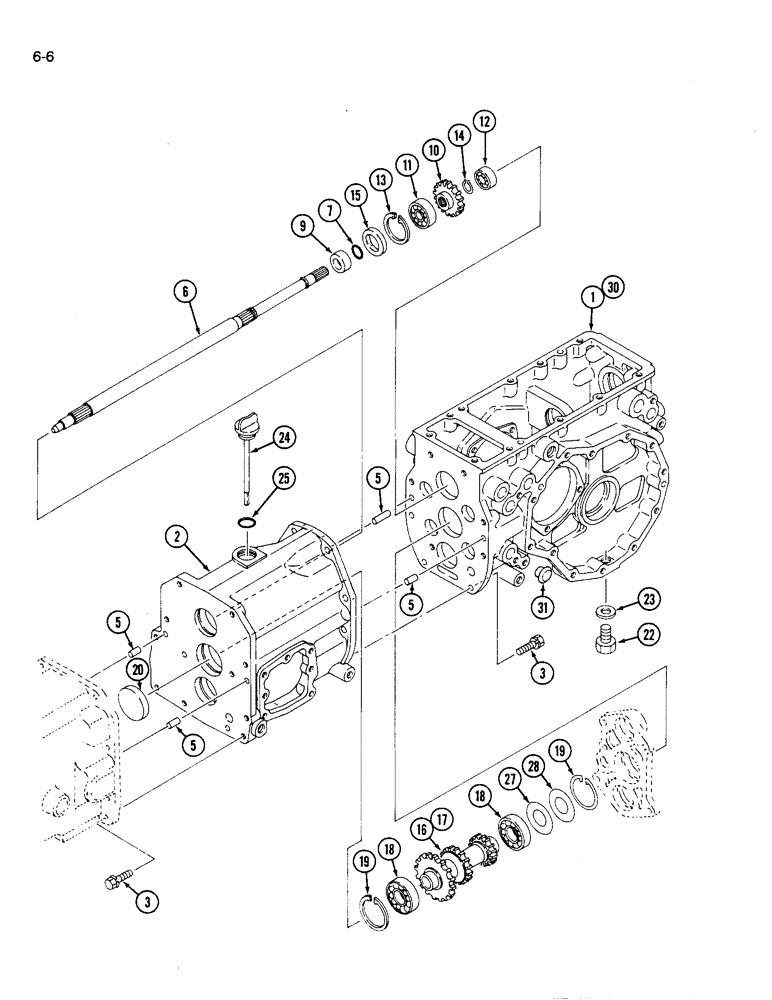

Запчасти Case IH 1120 (6-06) - MECHANICAL TRANSMISSION DRIVE SHAFT AND HOUSING (06) - POWER TRAIN

1

1991229C1

CASE

HOUSING transmission, not used with creeper speed

1шт.

2

1991230C1

CASE

HOUSING transmission, center section

1шт.

3

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 35 mm

16шт.

892-11010

LOCK WASHER,M10

16шт.

5

837-10020

DOWEL,M10 x 20

M10 x 20

4шт.

6

1991231C1

SHAFT

drive, transmission

1шт.

7

1991232C1

O-RING,0.864" ID x 1.004" OD x 0.07"

1шт.

9

1991233C1

BUSHING

1шт.

10

1991234C1

GEAR

24 tooth

1шт.

11

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

1шт.

12

1273764C91

BALL BEARING

BALL BEARING ASSEMBLY

1шт.

13

933032R1

SNAP RING,M52, Int

RING retaining, internal, 56 mm OD

1шт.

14

933123R1

SNAP RING,M20, Ext

RING retaining, external, 18 mm ID

1шт.

15

1991235C1

OIL SEAL

oil

1шт.

16

1992316C1

GEAR

20, 26 and 35 tooth, used on 2 wheel drive tractors

1шт.

17

1991236C1

GEAR

20, 26 and 35 tooth, not used on 2 wheel drive tractors

1шт.

18

1271858C91

BALL BEARING

ASSEMBLY

2шт.

19

933108R1

SNAP RING,M62, Int

RING retaining, internal, 66.74 mm OD

1шт.

20

1963242C1

SEAL ASSY.

PLUG rubber, for machines equipped with 2 wheel drive

1шт.

22

1992844C1

PLUG

2шт.

23

1963085C1

SEALING WASHER

seal

2шт.

24

1273778C3

PLUG

DIPSTICK fluid level

1шт.

125

1269877C1

O-RING

28 mm ID

1шт.

1273013C2

STRIPPER PACKAGE

KIT Shim, Includes Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM

1шт.

30

1992565C1

CASE

HOUSING transmission, used with creeper speed

1шт.

31

1962638C1

SEAL

CAP seal, not used with creeper speed

1шт.
