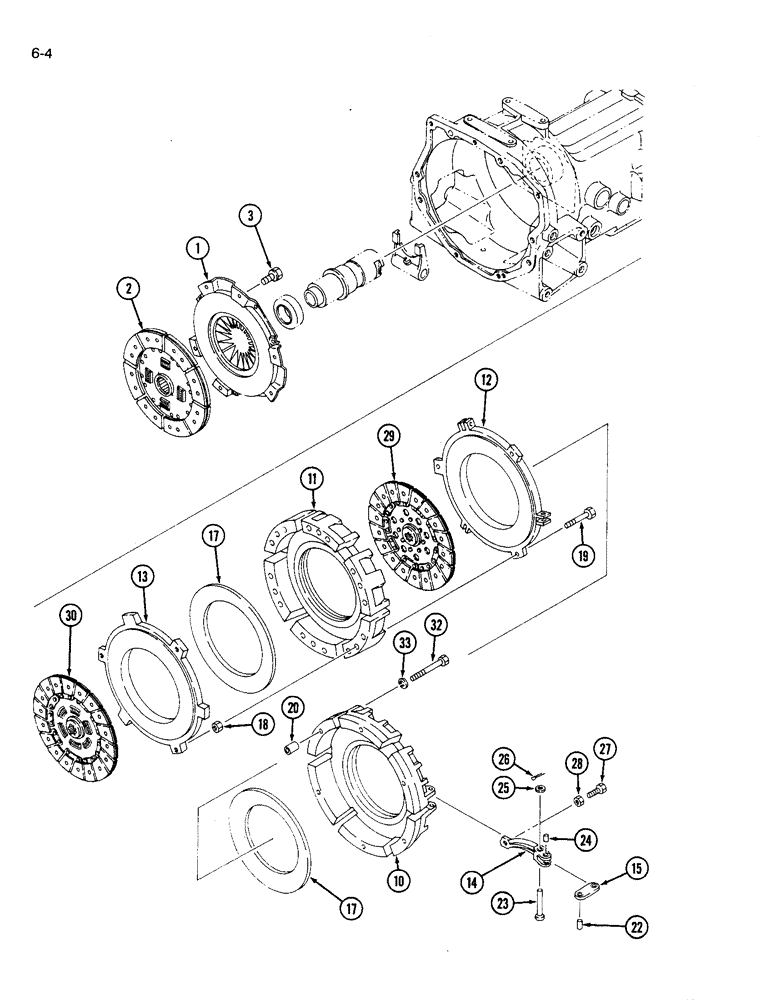

Запчасти Case IH 1120 (6-04) - CLUTCH (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1273254C1
COVER ASSY
CLUTCH COVER ASSEMBLY, single gear
1шт.
1273254C1R
REMAN-CLUTCH PLATE
Remanufactured, CLUTCH PLATE, N.A. Only
1шт.
1
1273254C1C
CORE-CLUTCH PLATE
Return Number, Cover Assembly, Clutch, N.A. Only
1шт.
1346877C1R
REMAN-CLUTCH DISC
Remanufactured, CLUTCH PLATE, N.A. Only
1шт.
1
1346877C1C
CORE-CLUTCH DISC
Return number - For N.A. only
1шт.
2
1991228C1
DISC
CLUTCH DISK ASSEMBLY, single gear
1шт.
3
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
BOLT hex, 8 mm x 20 mm, Single gear
6шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , Single gear M8
6шт.
1991851C1
CLUTCH ASSEMBLY
CLUTCH ASSEMBLY, Includes Ref. 10 - 30, dual gear
1шт.
10
1992548C1
COVER
COVER clutch, dual gear
1шт.
11
1992549C1
COVER
COVER clutch, dual gear
1шт.
12
1992550C1
PLATE
PLATE pressure, clutch dual gear
1шт.
13
1992551C1
PLATE
PLATE pressure, clutch dual gear
1шт.
14
1992552C1
LEVER
LEVER release, clutch dual gear
3шт.
15
1992553C1
ROD
ROD release lever, clutch dual gear
3шт.
17
1992554C1
DIAPHRAGM
DIAPHRAGM spring, clutch dual gear
2шт.
18
1992555C1
NUT
NUT, clutch dual gear
3шт.
19
1992556C1
BOLT
BOLT, clutch dual gear
3шт.
20
1992557C1
PIN
PIN, clutch dual gear
3шт.
22
1992558C1
PIN
PIN, clutch dual gear
3шт.
23
1992559C1
PIN
PIN, clutch dual gear
3шт.
24
1992560C1
PIN
PIN, clutch dual gear
3шт.
25
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
WASHER flat, 9 x 17 x 1.6 mm, Clutch dual gear
3шт.
26
782-2516
PIN split, clutch dual gear
3шт.
27
1992561C1
BALL
BOLT adjusting, clutch dual gear
3шт.
28
1992562C1
NUT
NUT, clutch dual gear
3шт.
29
1992563C1
CLUTCH DISC
CLUTCH DISK CLUTCH DISC ASSEMBLY, dual gear
1шт.
30
1992564C1
CLUTCH DISC
CLUTCH DISK CLUTCH DISC ASSEMBLY, dual gear
1шт.
33
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , Clutch dual gear M8
6шт.
Выбрано товаров: 30
