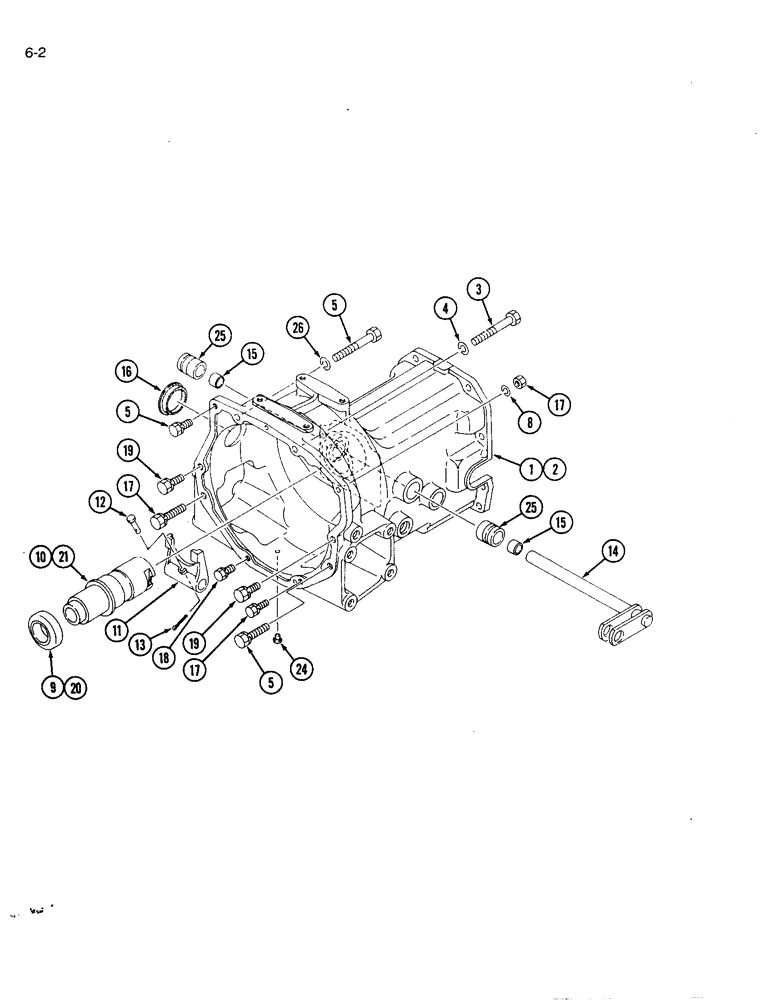

Запчасти Case IH 1120 (6-02) - CLUTCH HOUSING, MECHANICAL AND HYDROSTATIC TRANSMISSION (06) - POWER TRAIN

1

1991222C1

HOUSING

clutch, for machines equipped with mechanical transmission

1шт.

2

1991223C1

HOUSING

clutch, for machines equipped with hydrostatic transmission

1шт.

13

514-846

BOLT,Hex, M12 x 1.25 x 90mm, Cl 8.8

hex, 12 - 1.25 x 90 mm

1шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

825-1410

NUT,M10, Cl 8

1шт.

8

892-11010

LOCK WASHER,M10

1шт.

9

1273237C91

BEARING,40mm ID x 70mm OD x 20mm W

CLUTCH RELEASE BEARING ASSEMBLY

1шт.

10

1991848C1

HUB

clutch release, used on dual gear machines

1шт.

11

1991225C1

LEVER

FORK clutch release

1шт.

12

1992842C1

CLEVIS PIN

PIN clevis

1шт.

13

732-2516

COTTER PIN,M2.5 x 16

PIN cotter

1шт.

14

1991226C1

SHAFT

clutch release

1шт.

15

1963609C1

BUSHING

clutch shaft

2шт.

16

1992314C1

CAP

PLUG

1шт.

17

514-855

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

18

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

1шт.

19

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 12 - 1.25 x 30 mm

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

1991845C1

BALL BEARING

BEARING clutch release, not used on dual gear machines

1шт.

21

1991224C1

HUB

clutch release, not used on dual gear machines

1шт.

24

1282586C1

CYLINDER END CAP

CAP housing

1шт.

25

1992547C1

BOSS

2шт.

26

892-11010

LOCK WASHER,M10

2шт.
