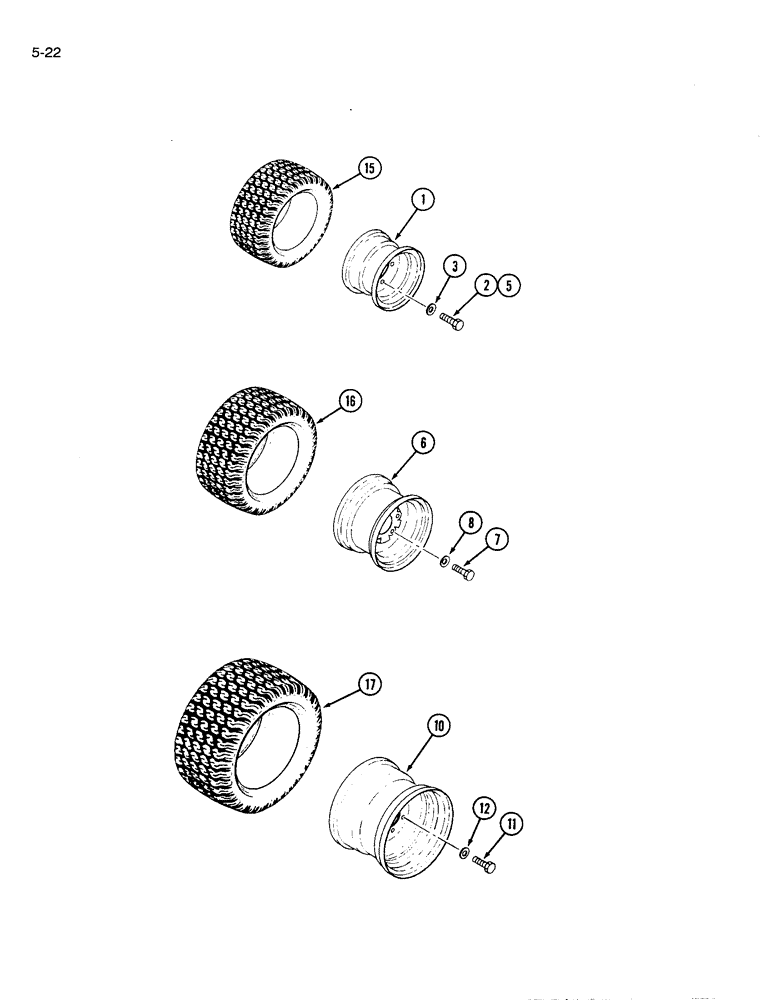

Запчасти Case IH 1120 (5-22) - FRONT WHEELS, TURF TIRES (05) - STEERING

1

1963774C1

RIM

WHEEL, front half, inner, for 20 x 8.00-10 tire, 2 wheel drive tractor

2шт.

1

1963775C1

RIM

WHEEL, front half, outer, for 20 x 8.00-10 tire, 2 wheel drive tractor

2шт.

2

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

hex, 14 - 1.5 x 25 mm, 2 wheel drive tractor

8шт.

3

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 14 mm, hardened, 2 wheel drive tractor

8шт.

4

387841R91

VALVE

wheel, 2 wheel drive tractor

2шт.

5

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2WD tractor Hex, M10 x 1.25 x 20, 8.8, Full Thd

12шт.

892-11010

LOCK WASHER,M10

2WD tractor M10

12шт.

825-11410

NUT,M10 x 1.25, Cl 8

2WD tractor M10 x 1.25, Cl 8

12шт.

15

NSS

NOT SOLD SEPARAT

TIRE, front, 20 x 8.00-10, 4 ply, turf, 2 wheel drive tractor

2шт.

6

1988182C1

WHEEL

front, 12 x 7 JA , for 23 x 8.50-12 tire, MFD tractor

2шт.

7

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

MFD tractor Hex, M12 x 1.25 x 25, 8.8, Full Thd

10шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

MFD tractor M13.5 x 24.5 x 3, HT

10шт.

9

387841R91

VALVE

wheel, MFD tractor

2шт.

16

NSS

NOT SOLD SEPARAT

TIRE, front, 23 x 8.50-12, 4 ply, turf, MFD tractor

2шт.

10

1988199C1

WHEEL

rear, 15 x 10LB, for 33 x 12.50-12 tire

2шт.

11

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT hex, 14 - 1/5 x 30 mm, rear tires

12шт.

12

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 14 mm, hardened, rear tires

12шт.

13

387897R91

VALVE STEM

VALVE wheel, rear tires

2шт.

17

NSS

NOT SOLD SEPARAT

TIRE, rear, 32 x 12.50-15, 4 ply, turf

2шт.
