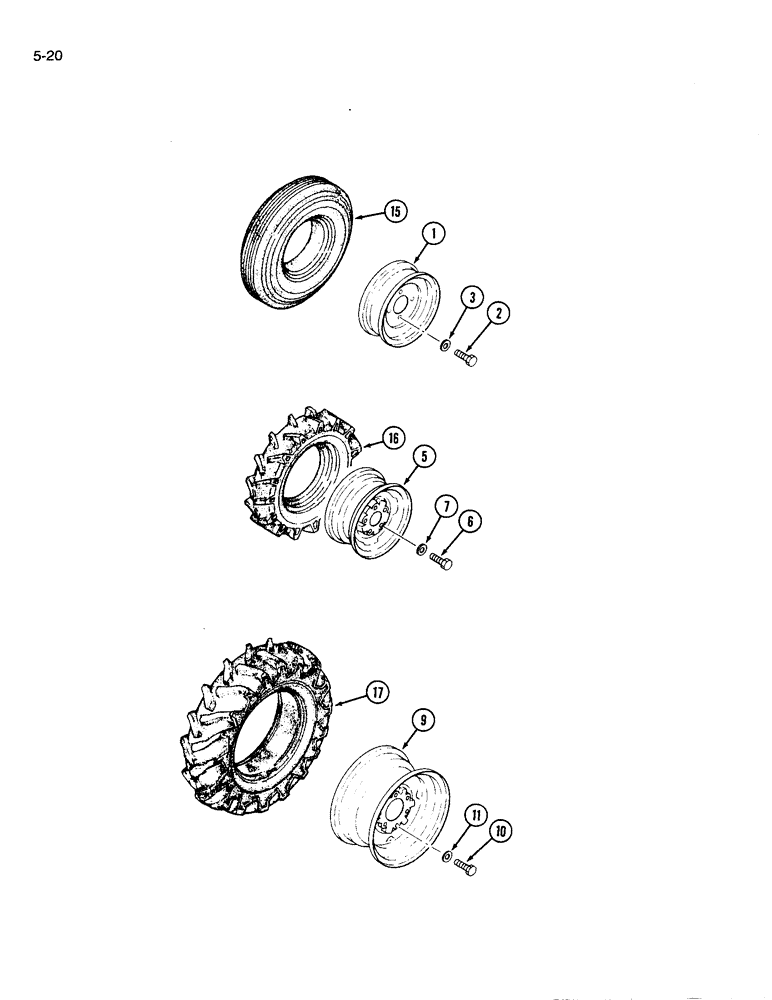

Запчасти Case IH 1120 (5-20) - FRONT WHEELS, AGRICULTURAL TIRES (05) - STEERING

1

1963726C1

WHEEL

front, 12 x 3, for 4.00-12 F2 tire, 2 wheel drive tractor

2шт.

2

514-916

BOLT,Hex, M14 x 1.5 x 25mm, Cl 8.8, Full Thd

hex, 14 - 1.5 x 25 mm, 2 wheel drive tractor

8шт.

3

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 14 mm, hardened, 2 wheel drive tractor

8шт.

4

387841R91

VALVE

wheel, 2 wheel drive tractor

2шт.

15

NSS

NOT SOLD SEPARAT

TIRE, front, 4.00-12, 4 ply, agricultural, 2 wheel drive tractor

2шт.

5

1988180C1

WHEEL

front, 12 x 5JA, for 6-12 R1 tire, MFD tractor

2шт.

6

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

MFD tractor Hex, M12 x 1.25 x 25, 8.8, Full Thd

10шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

MFD tractor M13.5 x 24.5 x 3, HT

10шт.

8

387841R91

VALVE

wheel, MFD tractor

2шт.

16

NSS

NOT SOLD SEPARAT

TIRE, front, 6-12, 4 ply, agricultural, MFD tractor

2шт.

9

1988181C1

RIM

WHEEL, rear, 16 x 8LB, for 9.5-16 R1 tire, rear wheels

2шт.

10

514-917

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT hex, 14 - 1.5 x 30 mm, rear wheels

12шт.

11

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

flat, 14 mm, hardened, rear wheels

12шт.

12

387841R91

VALVE

wheel, rear wheels

2шт.

17

NSS

NOT SOLD SEPARAT

TIRE, rear, 9.5-16, agricultural, rear wheels

2шт.
