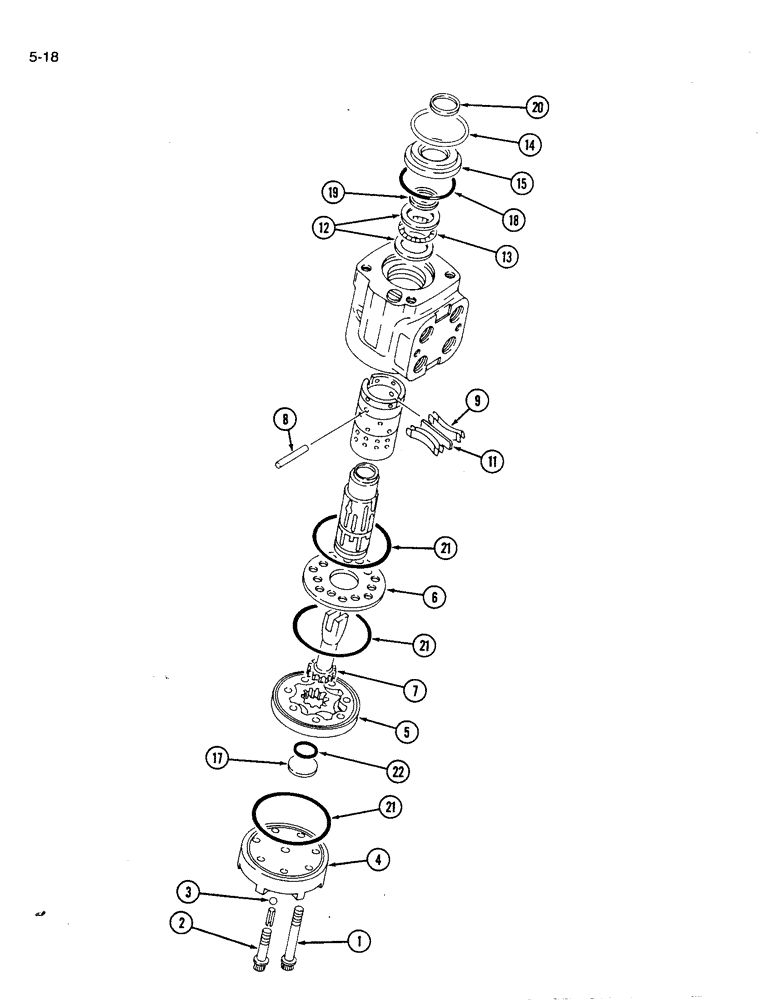

Запчасти Case IH 1120 (5-18) - STEERING UNIT (05) - STEERING

1991196C1

STEERING ASSY

UNIT steering, Includes Ref. 1 - 17

1шт.

1

1992723C1

SCREW

6шт.

2

1992724C1

SCREW

RETAINER SCREW ASSEMBLY

1шт.

3

1992725C1

BALL

steel

1шт.

4

1992726C1

COVER

steering unit

1шт.

5

1992727C1

ROTOR

steering unit

1шт.

6

1992728C1

PLATE

SPACER plate

1шт.

7

1992729C1

PINION

GEAR drive

1шт.

8

1992730C1

PIN

steering unit

1шт.

9

1992731C1

SPRING

alignment

4шт.

11

1992732C1

SPRING

flat

2шт.

12

1992733C1

BEARING, ROLLER

BEARING ASSEMBLY

2шт.

13

1992734C1

BEARING, NEEDLE

BEARING needle

1шт.

14

1992735C1

RING

retaining

1шт.

15

1992736C1

BUSHING

1шт.

17

1992737C1

PLUG

1шт.

1992738C1

SEAL KIT

Seal, Includes Ref. 18 - 22

1шт.

18

1992739C1

O-RING

1шт.

19

1992740C1

OIL SEAL

SEAL oil

1шт.

20

1992743C1

WASHER

SEAL dust

1шт.

21

1992741C1

O-RING

3шт.

22

1992742C1

O-RING

1шт.
