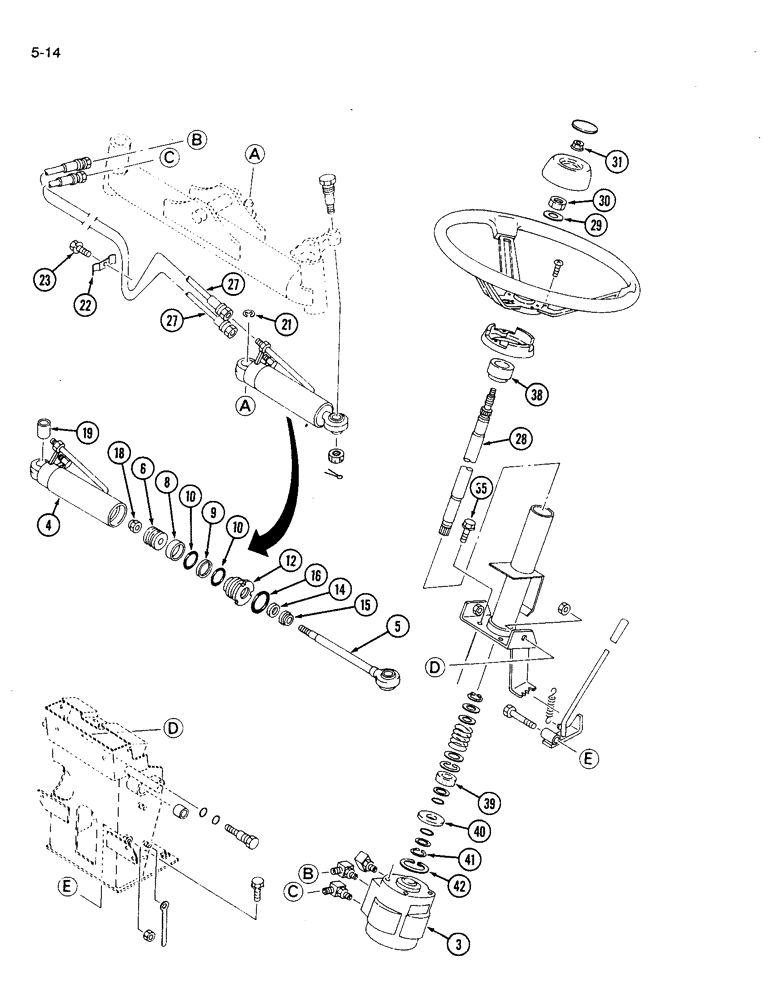

Запчасти Case IH 1120 (5-14) - STEERING SYSTEM AND COLUMN, TWO WHEEL DRIVE AND MFD TRACTORS (05) - STEERING

3

1991196C1

STEERING ASSY

UNIT steering

1шт.

1991197C1

CYLINDER

STERRING CYLINDER ASSEMLBY, Includes Ref. 4 - 19

1шт.

4

1991198C1

TUBE

HOUSING cylinder, steering

1шт.

5

1991199C1

ROD

cylinder

1шт.

6

1991200C1

PISTON

cylinder

1шт.

1991201C1

SEAL KIT

Seal, Includes Ref. 8, 9 and 10

1шт.

8

1991202C1

RING

wear

1шт.

9

1991203C1

O-RING

1шт.

10

1992746C1

RING

retaining

1шт.

12

1991204C1

CASE

RETAINER cylinder end

1шт.

1991205C1

SEAL KIT

Seal, Includes Ref. 14, 15 and 16

1шт.

14

1991206C1

SEAL

rod

1шт.

15

1991207C1

SEAL

COVER dust

1шт.

16

1991208C1

O-RING

1шт.

18

825-11412

NUT,M12 x 1.25, Cl 8

hex, 12 mm - 1.25

2шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

2шт.

19

1991209C1

BUSHING

2шт.

21

933355R1

CIRCLIP,M20

E-RING retaining, required on 2 wheel drive tractors

1шт.

22

1991210C1

CLAMP

BRACKET

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

26

825-13424

NUT,M24 x 2, Cl 8

1шт.

27

1991212C1

HYDRAULIC HOSE

2шт.

28

1991218C1

SHAFT

steering column

1шт.

29

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

30

1269797C1

TUBE NUT

NUT hex jam, 16 mm

1шт.

31

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

34

1991216C1

STEERING COLUMN

COLUMN steering

1шт.

35

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

892-11010

LOCK WASHER,M10

4шт.

38

1273665C1

BUSHING

column

1шт.

39

1992543C1

OIL SEAL

SEAL oil

1шт.

40

1992544C1

WASHER

1шт.

41

933235R1

SNAP RING,M40, Int

RING retaining

1шт.

42

933123R1

SNAP RING,M20, Ext

RING retaining, external, 18 mm ID

1шт.
