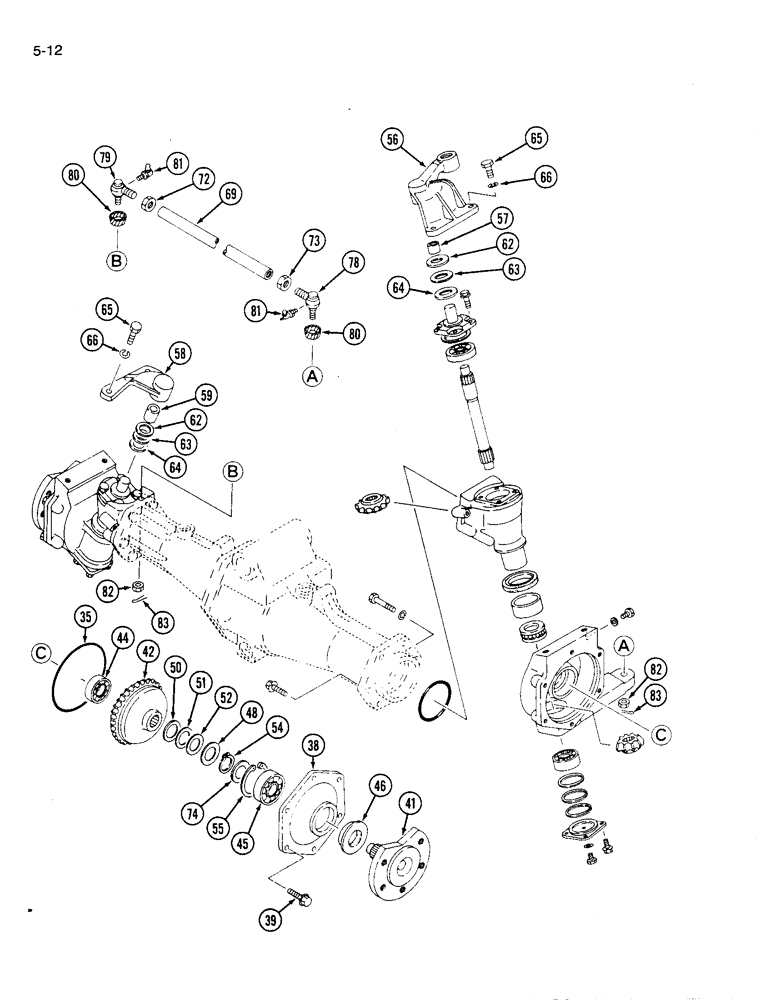

Запчасти Case IH 1120 (5-12) - FRONT AXLE FINAL DRIVE AND TIE ROD (05) - STEERING

35

1992542C1

O-RING,1.925" ID x 2.131" OD x 0.103"

2шт.

38

1991190C1

COVER

housing

2шт.

39

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

892-11010

LOCK WASHER,M10

10шт.

41

1992296C1

SHAFT

wheel

2шт.

42

1991191C1

GEAR

bevel, 33 tooth

2шт.

44

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

45

1271858C91

BALL BEARING

ASSEMBLY

1шт.

46

1273188C1

OIL SEAL

SEAL oil

2шт.

48

1273166C1

WASHER

flat

2шт.

1273165C2

SHIM KIT

KIT Shim, front axle, Includes Ref. 50, 51 and 52

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM wheel shaft, 0.15 mm

1шт.

51

NSS

NOT SOLD SEPARAT

SHIM wheel shaft, 0.20 mm

1шт.

52

NSS

NOT SOLD SEPARAT

SHIM wheel shaft, 0.40 mm

1шт.

54

933086R1

SNAP RING,M30, Ext

RING - retaining, external, 28 mm

2шт.

55

933108R1

SNAP RING,M62, Int

RING retaining, internal, 66.74 mm OD

2шт.

56

1991192C1

ARM

pivot, left

1шт.

57

1273285C1

SPACER

BUSHING axle pivot

1шт.

58

1991193C1

ARM

pivot, right

1шт.

59

1273285C1

SPACER

BUSHING axle pivot

1шт.

1273542C2

SHIM

KIT Shim, steering arm, Includes Ref. 62, 63 and 64

1шт.

62

NSS

NOT SOLD SEPARAT

SHIM pivot arm, 1.4 mm

1шт.

63

NSS

NOT SOLD SEPARAT

SHIM pivot arm, 1.2 mm

1шт.

64

NSS

NOT SOLD SEPARAT

SHIM pivot arm, 0.8 mm

1шт.

65

1991129C1

DIODE

BOLT hex

4шт.

66

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

1991194C1

TIE-ROD

TIE ROD ASSEMBLY, Includes Ref. 69 - 73

1шт.

69

1991195C1

ROD

tie

1шт.

1273546C91

END ASSY.

TIE ROD END ASSEMBLY, right, Includes Ref. 79, 80 and 81

1шт.

1273547C91

END ASSY.

TIE ROD END ASSEMBLY, left, Includes Ref. 78 and 80 - 83

1шт.

72

1273544C1

NUT

hex, special, 17 mm

1шт.

73

1273545C1

NUT

hex, special, left hand thread, 17 mm

1шт.

74

1273133C1

WASHER

thrust, Includes Ref. 78 - 83

2шт.

78

NSS

NOT SOLD SEPARAT

END rod, left

1шт.

79

NSS

NOT SOLD SEPARAT

END rod, right

1шт.

80

1273548C1

COVER ASSY

COVER dust

1шт.

81

1273649C1

FITTING

grease, extra short, straight, 1/4-18 PT

1шт.

82

1273549C1

NUT

castle, 12 mm

1шт.

83

732-3220

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

1шт.
