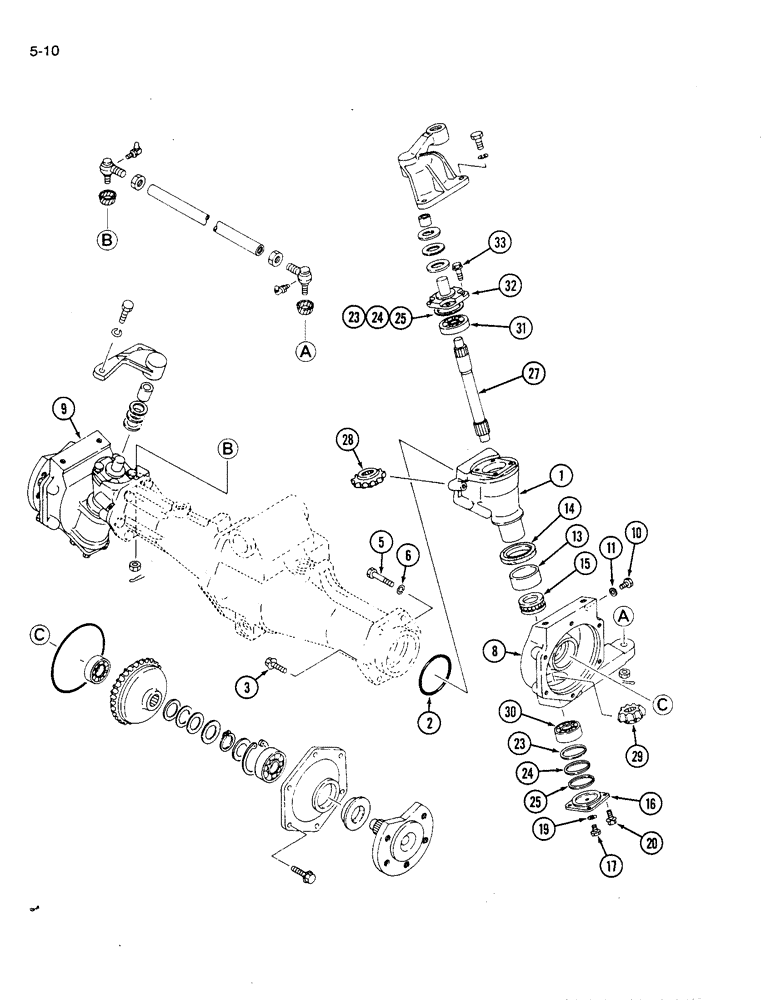

Запчасти Case IH 1120 (5-10) - FRONT AXLE FINAL DRIVE AND TIE ROD, MDFD TRACTORS (05) - STEERING

1

1991184C1

CASE

HOUSING king pin

2шт.

2

1269887C1

O-RING

O-RING, 75 mm ID

2шт.

3

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

10шт.

892-11010

LOCK WASHER,M10

10шт.

5

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

8

1991185C1

CASE

HOUSING final drive, left

1шт.

9

1991186C1

CASE

HOUSING final drive, right

1шт.

10

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT drain plug

2шт.

11

1992268C1

SEALING WASHER

drain

2шт.

13

1992295C1

BUSHING

housing

2шт.

14

1962548C1

OIL SEAL

SEAL oil

2шт.

15

1271868C91

BALL BEARING,25 mm ID x 42 mm OD x 11 mm

THRUST BALL BEARING ASEMBLY

2шт.

16

1273161C1

COVER ASSY

COVER housing, lower

2шт.

17

1269630C1

BOLT,M8 x 1.25 x 12mm

BOLT drain plug

2шт.

19

1992268C1

SEALING WASHER

drain

2шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

1991605C1

SHIM KIT

KIT Shim, Includes Ref. 23, 24 and 25

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM

1шт.

25

NSS

NOT SOLD SEPARAT

SHIM

1шт.

27

1991188C1

SHAFT

king pin

2шт.

28

1992540C1

PINION

GEAR pinion, 14 tooth

2шт.

29

1991189C1

PINION

GEAR pinion, 13 tooth

2шт.

30

1271862C91

BEARING, BALL

BALL BEARING ASSEMBLY

4шт.

31

1991825C1

BALL BEARING,20 mm ID x 52 mm OD x 15 mm

ASSEMBLY

2шт.

32

1992541C1

HOLDER

bearing, upper

2шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

8шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.
