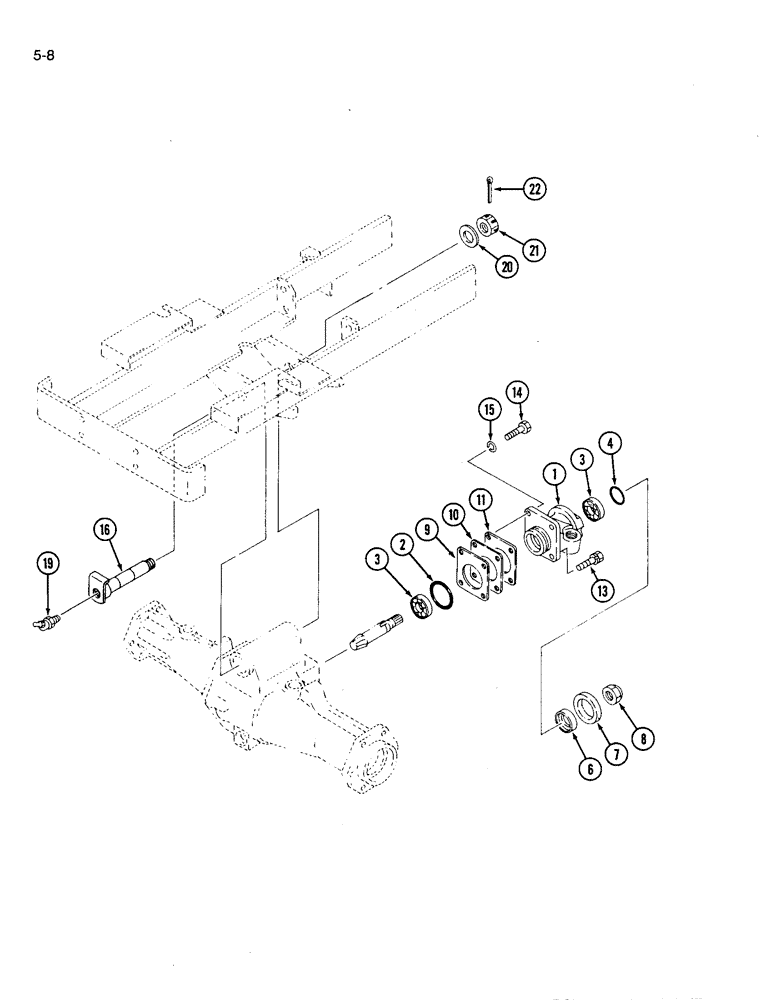

Запчасти Case IH 1120 (5-08) - FRONT AXLE MOUNTING AND PINION HOUSING (05) - STEERING

1

1992620C1

CASE

HOISING pinion

1шт.

2

1991173C1

O-RING,53mm ID x 56mm OD x 2mm

1шт.

3

1991174C1

BALL BEARING

ball

2шт.

4

1991175C1

OIL SEAL

oil

1шт.

6

1991176C1

BUSHING

pinion shaft

1шт.

7

1962521C1

O-RING

22 mm ID

1шт.

8

1991177C1

NUT

hex

1шт.

1991652C1

SHIM

KIT Shim, Includes Ref. 9, 10 and 11

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM pinion shaft, 0.1 mm

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM pinion shaft, 0.2 mm

1шт.

11

NSS

NOT SOLD SEPARAT

SHIM pinion shaft, 0.4 mm

1шт.

13

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

3шт.

892-11010

LOCK WASHER,M10

3шт.

14

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

1991155C1

PIN

center section, axle

1шт.

17

1273563C1

SHIM

25 x 39 x 1 mm

1шт.

19

1991183C1

FITTING

grease

1шт.

20

1992396C1

PLATE

WASHER

1шт.

21

1992745C1

NUT

hex

1шт.

22

732-5040

COTTER PIN,M5 x 40

PIN cotter, 5 x 40 mm

1шт.
