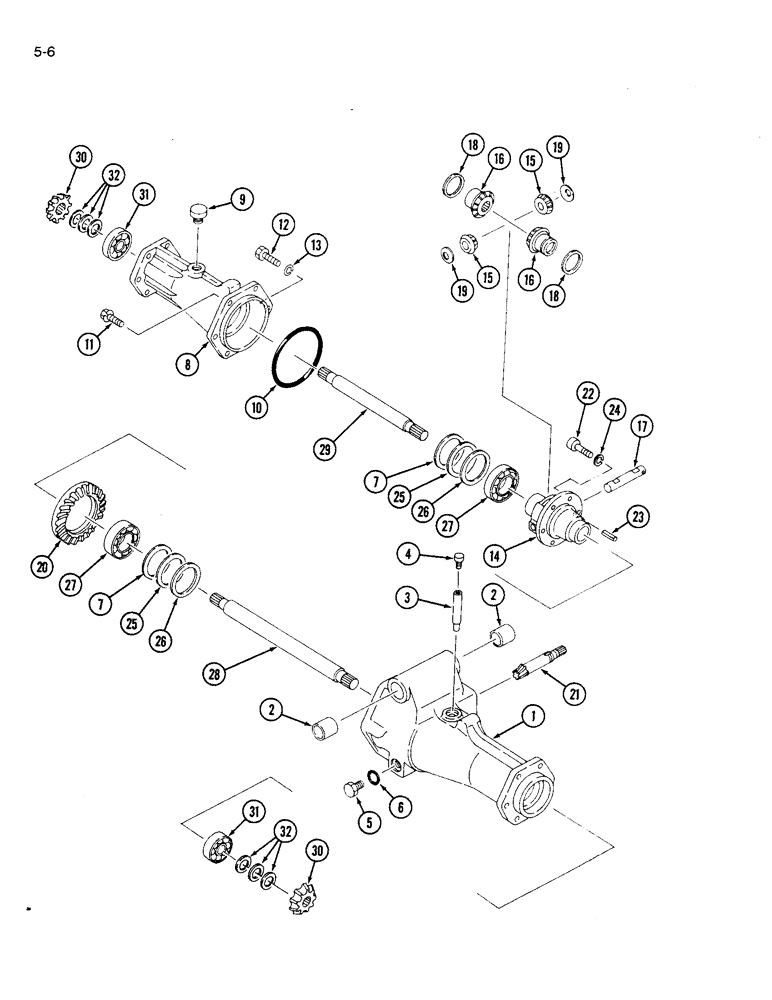

Запчасти Case IH 1120 (5-06) - FRONT AXLE SHAFTS, HOUSING AND DIFFERENTIAL, MFD TRACTORS (05) - STEERING

1991608C1

AXLE, FRONT

AXLE ASSEMBLY, front, MFD tractors, Includes Ref. 1 - 32

1шт.

NSS

NOT SOLD SEPARAT

AXLE HOUSING ASSEMLBY, front, Includes Ref. 1 and 2

1шт.

1

1991157C1

HOUSING

front axle, left

1шт.

2

1273226C1

BUSHING

housing, front axle

2шт.

3

1992538C1

TUBE

vent plug

1шт.

4

1273287C1

PLUG

vent

1шт.

5

1991159C1

PLUG

drain

1шт.

6

1991160C1

SEALING WASHER

GASKET drain plug

1шт.

7

1992292C1

SLEEVE CYLINDER

LINER bearing

1шт.

8

1991161C1

HOUSING

front axle, right

1шт.

9

1991162C1

PLUG

drain

1шт.

10

1991163C1

O-RING,0.987" ID x 1.193" OD x 0.103"

1шт.

11

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, 10 - 1.25 x 30 mm

5шт.

892-11010

LOCK WASHER,M10

5шт.

12

1273202C1

BOLT,Hex, M10 x 1.25 x 35mm

BOLT shoulder

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

1991164C1

CASE ASSY.

DIFFERENTIAL ASSEMBLY, Includes Ref. 14 - 24

1шт.

14

1991165C1

CASE

HOUSING differential

1шт.

15

1269483C1

GEAR WHEEL

GEAR pinion, 10 tooth

2шт.

16

1269479C1

GEAR WHEEL

GEAR side, 16 tooth

2шт.

17

1269465C1

SHAFT HOUSING

SHAFT pinion gear

1шт.

18

1269467C1

THRUST WASHER

thrust

2шт.

19

1269466C1

THRUST WASHER

thrust

2шт.

1991166C1

GEAR

SET Pinion and Ring Gear, Includes Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT pinion

1шт.

22

1991167C1

BOLT

6шт.

23

838-1640

LOCK PIN,M6 x 40, Slotted

PIN spring

1шт.

24

1991168C1

WASHER

6шт.

25

1992293C1

SLEEVE CYLINDER

LINER bearing

1шт.

26

1992294C1

SLEEVE CYLINDER

LINER bearing

1шт.

27

1271854C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

28

1991171C1

SHAFT

differential, left

1шт.

29

1991172C1

SHAFT

differential, right

1шт.

30

1992539C1

PINION

GEAR pinion, 13 tooth

2шт.

31

1271864C91

CRANKSHAFT BEARING

BALL BEARING ASSEMBLY

2шт.

32

1273293C1

SHIM

KIT Shim, axle shaft

1шт.

NSS

NOT SOLD SEPARAT

SHIM axle shaft, 0.1 mm

1шт.

NSS

NOT SOLD SEPARAT

SHIM axle shaft, 0.2 mm

1шт.

NSS

NOT SOLD SEPARAT

SHIM axle shaft, 0.4 mm

1шт.
