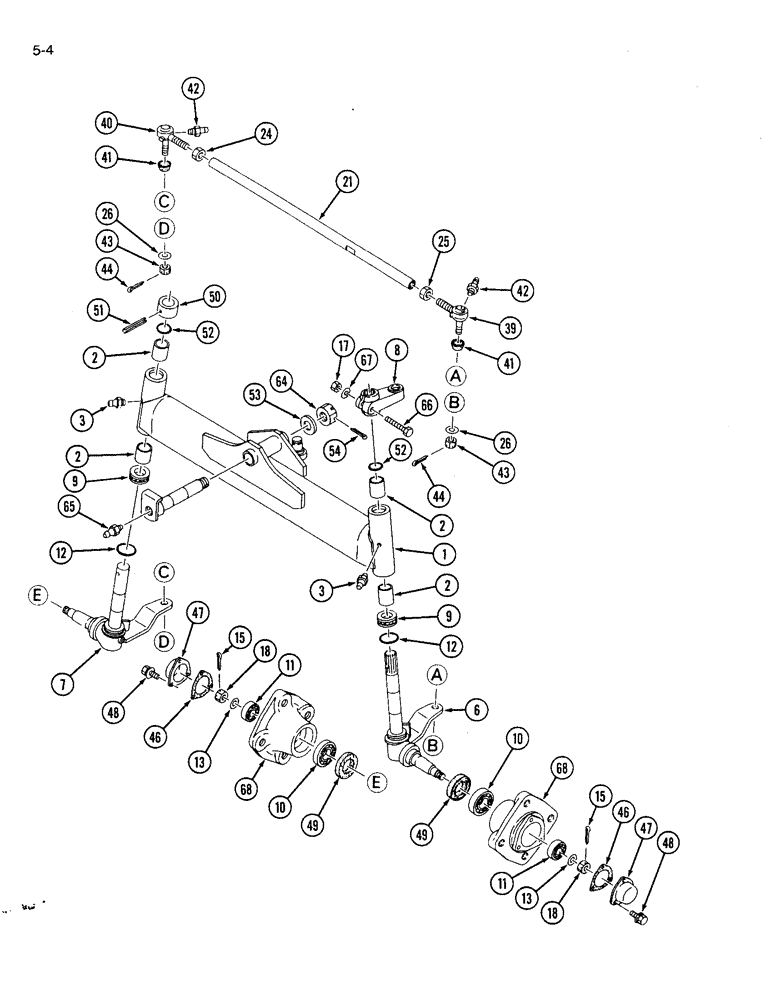

Запчасти Case IH 1120 (5-04) - NONADJUSTABLE FRONT AXLE (05) - STEERING

1991143C1

CENTER AXLE

AXLE ASSEMBLY, front, Includes Ref. 1, 2 and 3

1шт.

1

1991144C1

CENTRALIZER

AXLE center section

1шт.

2

1269752C1

BUSHING

spindle

4шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

6

1991145C1

KNUCKLE

SPINDLE axle, left

1шт.

7

1991146C1

KNUCKLE

SPINDLE axle, right

1шт.

8

1991147C1

ARM

pivot, axle

1шт.

9

1271899C91

BEARING, BALL,26 mm ID x 43.5 mm OD x 15.25 mm

THRUST BALL BEARING ASSEMBLY

2шт.

10

1271857C91

BEARING, BALL

BALL BEARING ASSEMBLY

2шт.

11

1271862C91

BEARING, BALL

BALL BEARING ASSEMLBY

2шт.

12

1992290C1

O-RING,2.614" ID x 2.754" OD x 0.07"

2шт.

13

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

2шт.

15

732-4032

COTTER PIN,M4 x 32

PIN split

2шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

1271877C1

NUT

castle, 15 mm

2шт.

1991151C1

TIE-ROD

AXLE TIE ROD ASSEMBLY, front, Includes Ref. 21 - 44

1шт.

21

1991152C1

TUBE

ROD tie

1шт.

24

1273544C1

NUT

hex, speical, 17 mm

1шт.

25

1273545C1

NUT

hex, special, left hand thread, 17 mm

1шт.

26

1991153C1

WASHER

lock

2шт.

1273546C91

END ASSY.

TIE ROD END ASSEMBLY, right, Includes Ref. 40 - 44

1шт.

1273547C91

END ASSY.

TIE ROD END ASSEMBLY, left, Includes Ref. 39 and 41 - 44

1шт.

39

NSS

NOT SOLD SEPARAT

SOCKET rod end, left

1шт.

40

NSS

NOT SOLD SEPARAT

SOCKET rod end, right

1шт.

41

1273548C1

COVER ASSY

COVER dust

2шт.

42

1273649C1

FITTING

grease, extra short, straight, 1/4-8 PT

2шт.

43

1273549C1

NUT

castle, 12 mm

2шт.

44

732-3220

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

2шт.

46

1271891C1

GASKET

hub cap

2шт.

47

1269749C1

CYLINDER END CAP

CAP hub

2шт.

48

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

49

1992291C1

OIL SEAL

SEAL oil

2шт.

50

1992536C1

BOSS

1шт.

51

838-1848

LOCK PIN,M8 x 48 Slotted

PIN slotted spring, 8 x 48 mm

1шт.

52

1962505C1

O-RING

cap sealing, 25 mm ID

2шт.

53

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 ID x 44 x 5 mm, hardened

1шт.

54

732-5040

COTTER PIN,M5 x 40

PIN cotter, 5 x 40 mm

1шт.

64

1992810C1

NUT

hex

1шт.

65

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

66

514-722

BOLT,Hex, M10 x 1.25 x 55mm, Cl 8.8

hex

1шт.

67

892-11010

LOCK WASHER,M10

1шт.

68

1962613C1

HUB CAP

HUB wheel, front

2шт.
