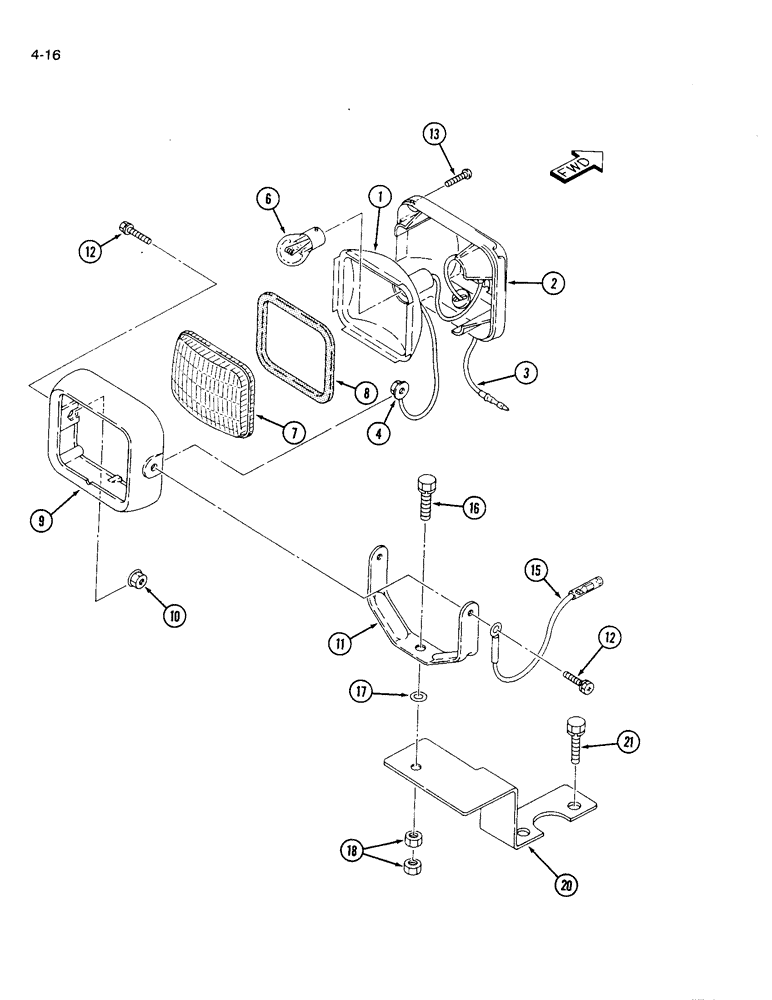

Запчасти Case IH 1120 (4-16) - WORK LIGHT AND MOUNTING (04) - ELECTRICAL SYSTEMS

1992701C1

LAMP

WORK LAMP ASSEMBLY, Includes Ref 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP HOLDER

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING lamp

1шт.

3

NSS

NOT SOLD SEPARAT

WIRE electrical

1шт.

4

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

6

1992704C1

BULB

lamp

1шт.

7

1992705C1

BRACKET

lens housing

1шт.

8

1992828C1

GASKET

lens

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING lens

1шт.

10

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

892-1106

LOCK WASHER,M6

1шт.

11

1992705C1

BRACKET

housing

1шт.

12

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

BLOT hex, 6 mm - 1 x 16 mm, Grade 10.9

2шт.

13

1992830C1

SELF-TAP SCREW

tapping

4шт.

15

1992706C1

HARNESS

wiring

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

18

825-1408

NUT,M8, Cl 8

2шт.

20

1992707C1

BRACKET

mounting

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 12 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.
