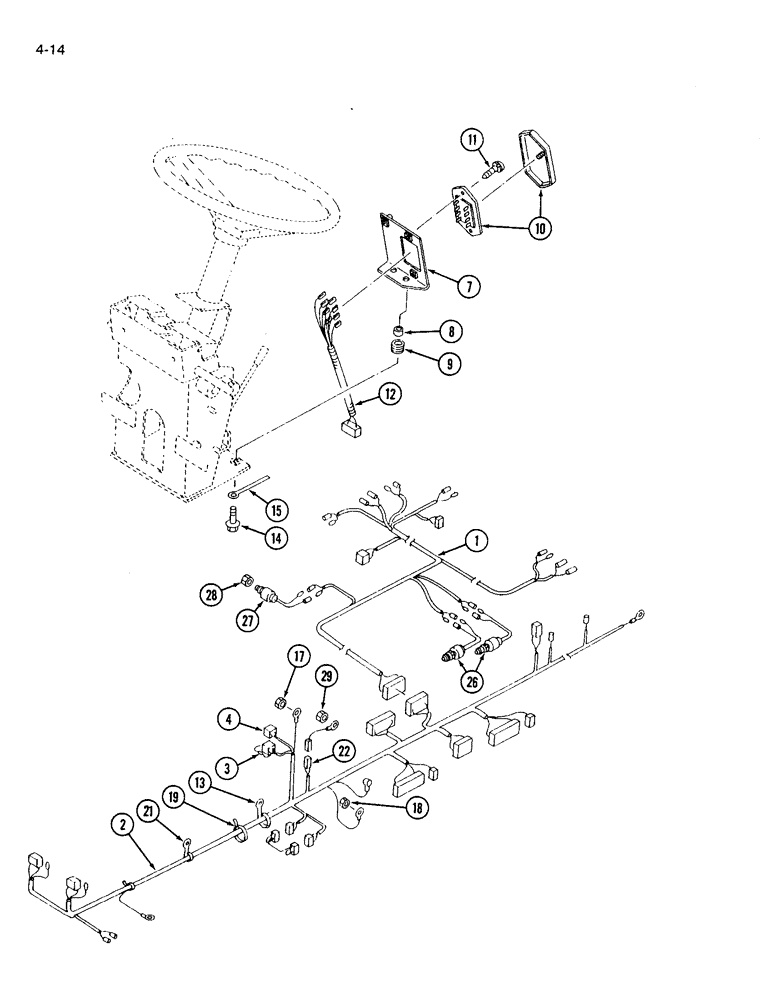

Запчасти Case IH 1120 (4-14) - WIRING HARNESS SYSTEM (04) - ELECTRICAL SYSTEMS

1

1991132C1

HARNESS

WIRING HARNESS ASSEMBLY

1шт.

1991127C1

HARNESS

ELECTRICAL HARNESS ASSEMBLY, Includes Ref. 2, 3 and 4

1шт.

2

NSS

NOT SOLD SEPARAT

HARNESS electrical

1шт.

3

1992526C1

LINK

WIRE fusible

1шт.

4

1991129C1

DIODE

DOIDE

1шт.

7

1992529C1

BRACKET

fuses

1шт.

8

1992530C1

SPACER

2шт.

9

117961

GROMMET,3/8" ID x 27/32" x .062"

light harness

2шт.

10

1963559C1

BOX

HOLDER fuse

1шт.

223-27

FUSE,20 Amp, Type 3AG

20 amperes, 3AG

2шт.

117142

FUSE,10 Amp, Type 3AG

10 ampere

2шт.

11

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

12

1991122C1

HARNESS

wiring

1шт.

13

1963135C1

CLAMP

fusible link

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

15

1962981C1

CLAMP

wire

2шт.

17

824-1405

NUT,M5, Cl 5

1шт.

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

18

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

21

1962981C1

CLAMP

2шт.

22

1992532C1

HARNESS

wiring

1шт.

26

1991138C1

NEUTRAL START SWITCH

SWITCH ASSEMBLY

2шт.

27

1991139C1

SENSOR

SWITCH ASSEMBLY

1шт.

28

192534C1

NUT

1шт.

29

825-1408

NUT,M8, Cl 8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.
