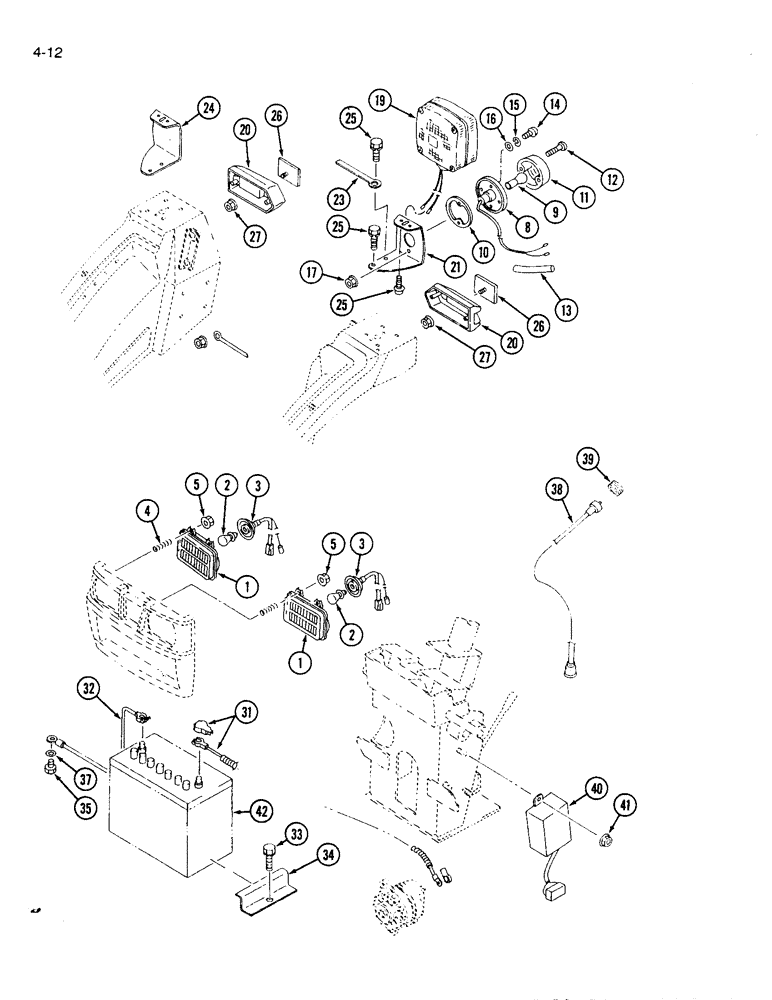

Запчасти Case IH 1120 (4-12) - BATTERY AND LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1271730C91
LIGHT
HEAD LAMP ASSEMBLY, Includes Ref. 1, 2 and 3
2шт.
1
NSS
NOT SOLD SEPARAT
UNIT sealed beam
2шт.
2
1271731C1
BULB
head lamp
1шт.
3
NSS
NOT SOLD SEPARAT
SOCKET bulb
2шт.
4
1271733C1
VALVE SPRING
SPRING headlight adjusting
6шт.
5
824-1405
NUT,M5, Cl 5
6шт.
892-11005
LOCK WASHER,M5
6шт.
1271739C91
LIGHT
TAIL LAMP ASSEMBLY, Includes Ref. 8 - 16
1шт.
8
NSS
NOT SOLD SEPARAT
SOCKET bulb
1шт.
9
142450
BULB,C2R, #67, 13.5V
1шт.
10
NSS
NOT SOLD SEPARAT
GASKET tail lamp
1шт.
11
NSS
NOT SOLD SEPARAT
LENS tail lamp
1шт.
12
NSS
NOT SOLD SEPARAT
SCREW
2шт.
13
NSS
NOT SOLD SEPARAT
TUBING
1шт.
14
NSS
NOT SOLD SEPARAT
SCREW
2шт.
15
NSS
NOT SOLD SEPARAT
WASHER lock
2шт.
16
NSS
NOT SOLD SEPARAT
WASHER flat
2шт.
17
824-1405
NUT,M5, Cl 5
2шт.
892-11005
LOCK WASHER,M5
2шт.
19
91887C91
LIGHT ASSY.
SIGNAL LIGHT ASSEMBLY
2шт.
A41264
BULB,#1156, 12V
2шт.
92-11025
LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk
4шт.
20
REF
INSTRUCTION
COVER, See Section 9, Fender and Steps
2шт.
21
1991133C1
BRACKET
lamp, left
1шт.
23
1275499C1
CLAMP
harness retaining
4шт.
24
1991134C1
BRACKET
lamp, right
1шт.
25
614-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
6шт.
892-11008
LOCK WASHER,8mm ID
2шт.
26
1271744C1
REFLECTOR
red
2шт.
27
825-1106
NUT,Hex, M6, Cl 8
2шт.
892-11006
LOCK WASHER,M6
2шт.
31
1962370C1
CABLE PULLING GRIP
POSITIVE BATTERY CABLE ASSEMBLY
1шт.
32
99184C1
CABLE PULLING GRIP
CABLE battery ground
1шт.
33
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
2шт.
892-11008
LOCK WASHER,8mm ID
2шт.
34
1992347C1
BRACKET
battery holddown
2шт.
35
1962561C1
BOLT (SPREADER),M8 - 1.25 x 25mm
2шт.
37
892-11008
LOCK WASHER,8mm ID
2шт.
38
1991123C1
CABLE
tachometer
1шт.
39
1991124C1
GROMMET
1шт.
40
1991039C1
UNIT
LIGHT, WARNING Flasher
1шт.
41
825-1406
NUT,M6, Cl 8
2шт.
892-11006
LOCK WASHER,M6
2шт.
42
B4550
BATTERY, DRY
BATTERY, Replaces A186034
1шт.
Выбрано товаров: 45
