(4-10) - INSTRUMENT CLUSTER AND SWITCHES

Запчасти Case IH 1120 (4-10) - INSTRUMENT CLUSTER AND SWITCHES (04) - ELECTRICAL SYSTEMS

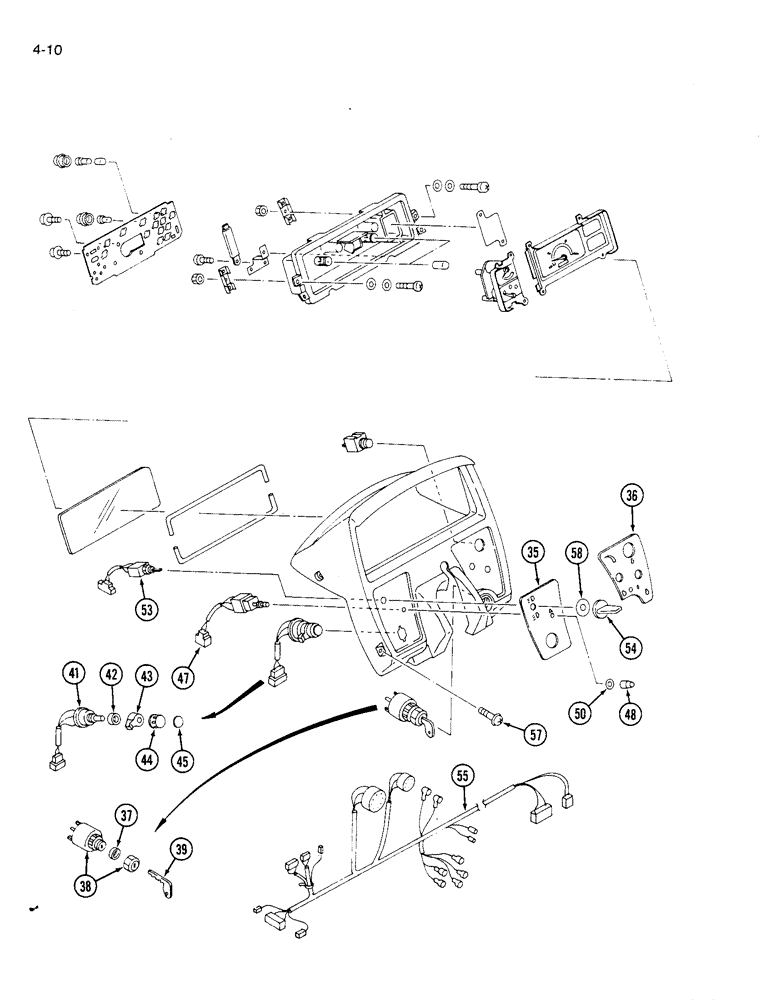

Схема запчастей Case IH 1120 - (4-10) - INSTRUMENT CLUSTER AND SWITCHES (04) - ELECTRICAL SYSTEMS
58
42
36
39
45
47
44
43
38
57
53
54
50
35
55
41
37
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

35

1991120C1

LABEL

instrument panel, left

1шт.

36

1991121C1

LABEL

LABLE instrument panel, right

1шт.

1991035C1

SWITCH

IGNITION SWITCH ASSEMBLY, Includes Ref. 37, 38 and 39

1шт.

37

1963152C1

MISC PACKAGING

PACKING starter switch

1шт.

38

1991036C1

SWITCH

PACKING ignition

1шт.

39

1961805C1

KEY, IGNITION

KEY ignition

2шт.

1991096C1

SWITCH

Includes Ref. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING switch assembly

1шт.

42

1992519C1

SPECIAL NUT

RING nut

1шт.

43

1992520C1

LEVER ASSY.

FLASHER lever

1шт.

44

1992521C1

KNOB

lighting

1шт.

45

1992522C1

LABEL

lighting

1шт.

1991181C1

SWITCH

hazard, Includes Ref. 47 and 48

1шт.

47

1992523C1

SWITCH

1шт.

48

1992524C1

CAP

COVER switch

1шт.

50

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

53

1991214C1

SWITCH

lights, hi-lo

1шт.

54

1992280C1

BOOT

COVER switch

1шт.

55

1992281C1

HARNESS

wiring

1шт.

57

540-702

SCREW,Cross Pan Hd, M6 x 12

pan head cross, recessed, 6 x 12 mm

4шт.

58

1992805C1

PACKING

SEAL rubber

1шт.
