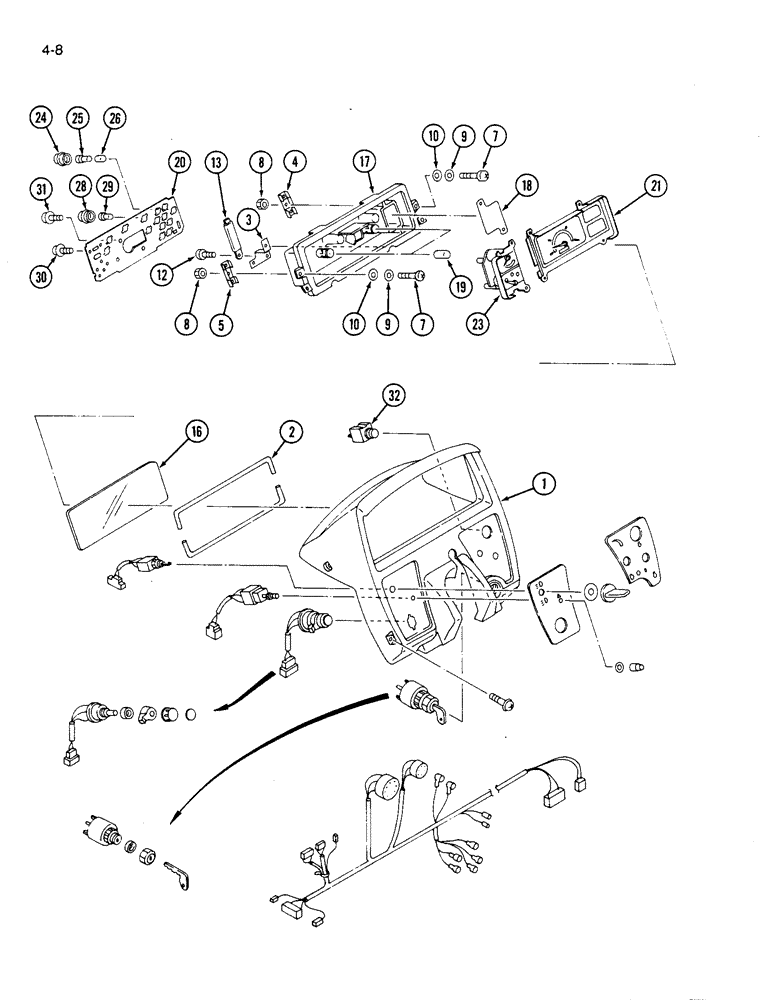

Запчасти Case IH 1120 (4-08) - INSTRUMENT CLUSTER, FUSES AND SWITCHES (04) - ELECTRICAL SYSTEMS

1991115C1

PANEL

INSTRUMENT CLUSTER PANEL ASSEMBLY, Includes Ref. 1 - 31

1шт.

1

1991116C1

PANEL

enclosure, instrument cluster

1шт.

2

1992273C1

PACKING

SEAL packing

1шт.

3

1992274C1

BRACKET

mounting

2шт.

4

1992275C1

BRACKET

instrument panel, left

1шт.

5

1992276C1

BRACKET

instrument panel, right

1шт.

7

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

8

825-1405

NUT,M5, Cl 8

4шт.

9

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

192277C1

SUPPORT

SCREW

8шт.

13

1992278C1

CLAMP

STRAP retaining

2шт.

1991117C1

METER

INSTRUMENT ASSEMBLY, Includes Ref. 16 - 31

1шт.

16

1992505C1

GLASS

instrument cover

1шт.

1992506C1

CASE ASSY.

ENCLOSURE ASSEMBLY, Includes Ref. 17, 18 and 19

1шт.

17

1992507C1

CASE

ENCLOSURE instruments

1шт.

18

1992508C1

PLATE

MONITOR instrument

1шт.

19

1992509C1

LENS

indicator

1шт.

20

1992510C1

BOARD

printed circuit

1шт.

21

1992511C1

TACHOMETER

1шт.

23

1992512C1

METER

GUAGE fuel and temperature

1шт.

1991118C1

BULB

ASSEMBLY, Includes Ref. 24, 25 and 26

4шт.

24

1992513C1

SOCKET

bulb

4шт.

25

1992514C1

BULB

4шт.

26

1992515C1

CAP

HOLDER bulb

4шт.

1991119C1

BULB

ASSEMBLY, Includes Ref. 28 and 29

10шт.

28

192516C1

SOCKET bulb

10шт.

29

1992514C1

BULB

10шт.

30

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

31

1992517C1

SCREW

2шт.

32

1273120C1

LAMP

indicator, glow plug

1шт.
