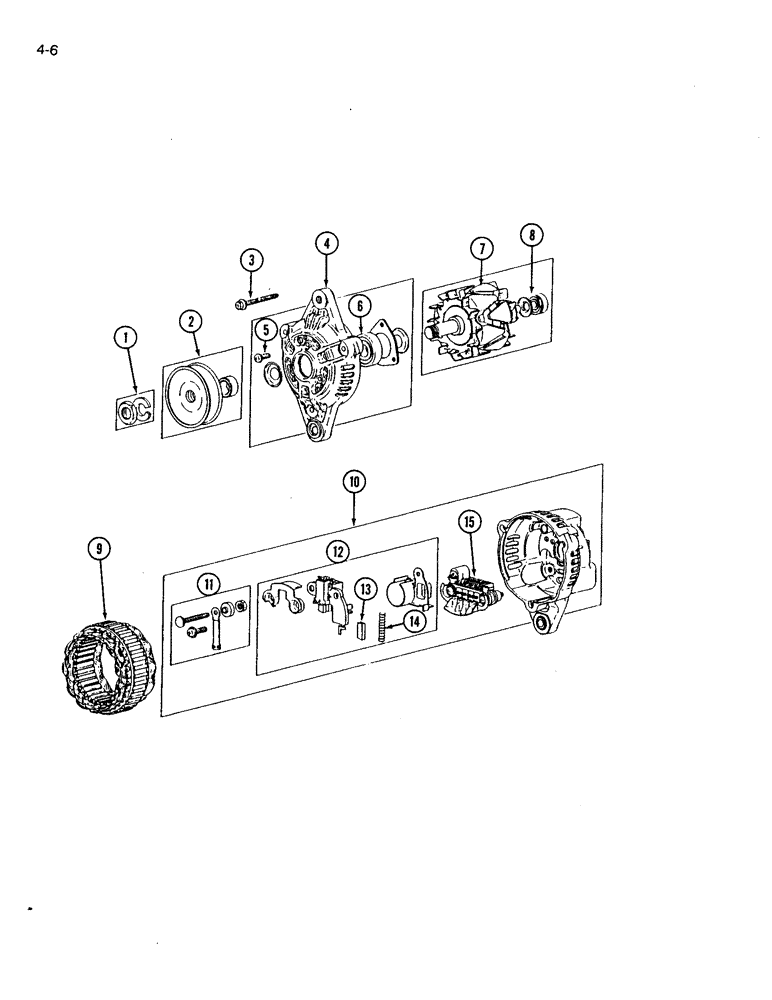

Запчасти Case IH 1120 (4-06) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

1991739C1

ALTERNATOR

ENGINE ALTERNATOR ASSEMBLY, Includes Ref. 1 - 15

1шт.

1

1962948C1

NUT

KIT Hardware, nut and washer

1шт.

2

1991054C1

PULLEY

ASSEMBLY

1шт.

3

1991742C1

BOLT (MACHINE),Set

SET Bolt

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, front, Includes Ref. 5 and 6

1шт.

5

1991056C1

SET SCREW

SET Hardware, screw

1шт.

6

1991057C1

BEARING ASSY

BEARING rotor, front

1шт.

7

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, Includes Ref. 8

1шт.

8

1991059C1

BEARING ASSY

BEARING rotor, rear

1шт.

9

NSS

NOT SOLD SEPARAT

STATOR alternator

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, rear, Includes Ref. 11, 12 and 15

1шт.

11

1991062C1

TERMINAL CONNECTOR

TERMINAL SET

1шт.

12

1991745C1

REGULATOR

ALTERNATOR REGULATOR ASSEMBLY, Includes Ref. 13 and 14

1шт.

13

1991064C1

BRUSH, COMMUTATOR

BRUSH alternator

2шт.

14

1962957C1

VALVE SPRING

SPRING brush

2шт.

15

1991065C1

RECTIFIER

ASSEMBLY

1шт.
