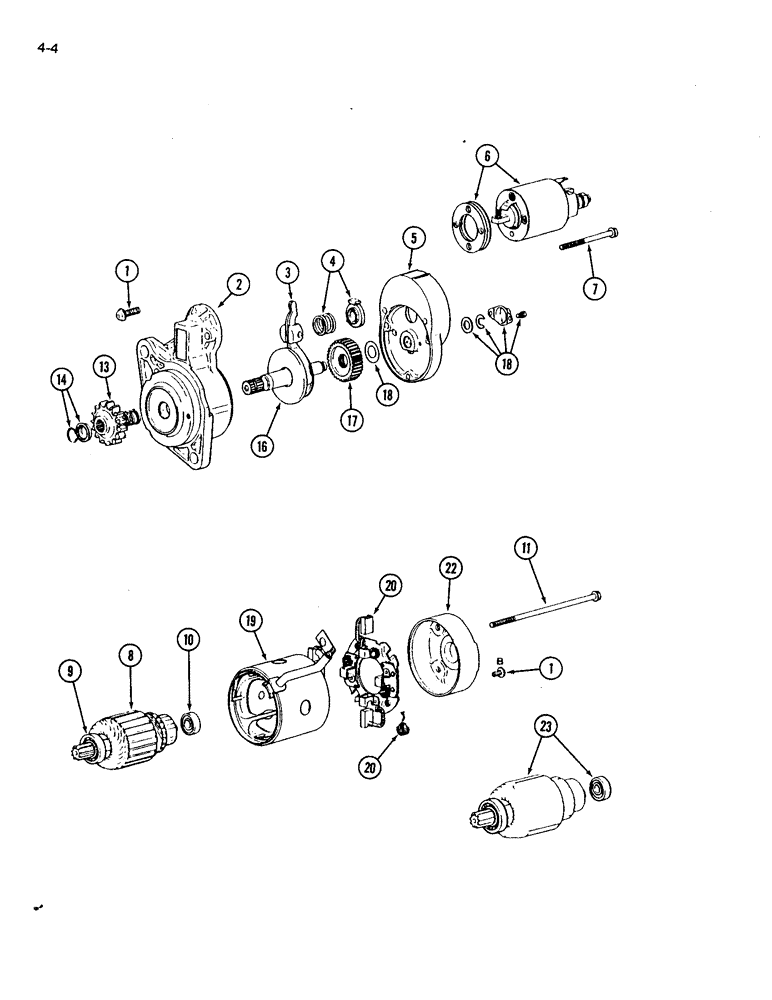

Запчасти Case IH 1120 (4-04) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1273112C91

STARTING MOTOR

ENGINE STARTER ASSEMBLY, Includes Ref. 1 - 22

1шт.

1273112C91R

REMAN-STARTER

Remanufactured STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1273112C91C

CORE-STARTER

Return Number, STARTER 12 volt, 1.4KW - For N.A. Only

1шт.

1

1962938C1

SCREW

KIT Bolt, starter

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, front

1шт.

3

NSS

NOT SOLD SEPARAT

STARTER DRIVE LEVER ASSEMBLY

1шт.

4

1962939C1

VALVE SPRING

KIT Spring, starter drive

1шт.

5

NSS

NOT SOLD SEPARAT

CENTER HOUSING ASSEMBLY

1шт.

6

1962940C1

ASSEMBLY

MAGNETIC SWITCH ASSEMBLY

1шт.

7

1962971C1

BOLT (SPREADER),M5 x 73mm

BOLT hex special, 5 x 73 mm

1шт.

8

1992768C1

COVER

STARTER ARMATURE ASSEMBLY, Includes Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING armature

1шт.

Part of Armature Bearing Kit 1273123C91

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING armature

1шт.

Part of Armature Bearing Kit 1273123C91

1шт.

11

1962972C1

BOLT

BOLT

2шт.

1962942C1

CLUTCH ASSEMBLY

CLUTCH SHAFT ASSEMBLY, Includes Ref. 13 - 18

1шт.

13

1962943C1

PINION

GEAR drive, Includes Ref. 14

1шт.

14

1962944C1

STOP

DRIVE GEAR STOP ASSEMBLY

1шт.

1962945C1

GEAR WHEEL

GEAR SET clutch, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

CLUTCH PINION SHAFT ASSEMBLY, Order 1962945C1

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR drive, Order 1962945C1

1шт.

18

1962946C1

COVER ASSY

KIT Housing Hardware

1шт.

19

NSS

NOT SOLD SEPARAT

FIELD COIL YOKE ASSEMBLY

1шт.

20

1273124C91

KIT

BRUSH HOLDER KIT starter

1шт.

NSS

NOT SOLD SEPARAT

BRUSH HOLDER ASSEMBLY, Order 1273124C91

1шт.

NSS

NOT SOLD SEPARAT

SPRING brush, Order 1273124C91

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, rear

1шт.

23

1273123C91

KIT

KIT Armature Bearing, Includes: Ref. 9 and 10

1шт.
