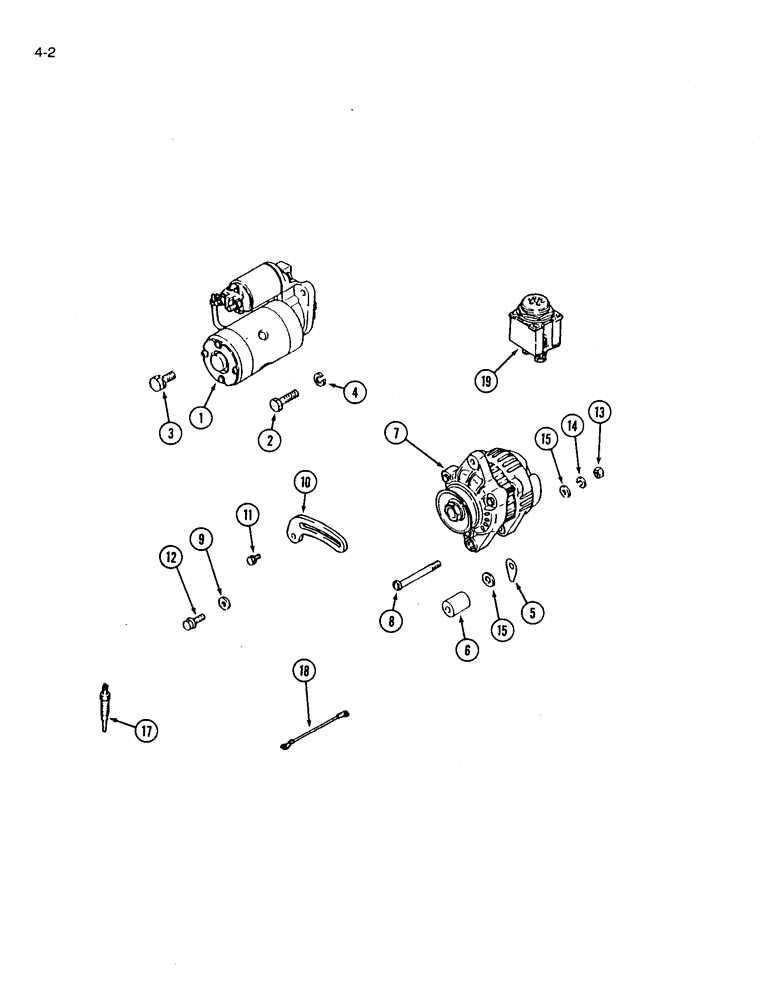

Запчасти Case IH 1120 (4-02) - STARTER MOUNTING, ALTERNATOR MOUNTING, GLOW PLUG (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ENGINE STARTER ASSEMBLY, See Figure 4-04, starter mounting

1шт.

2

1992226C1

BOLT

hex, 10 x 45 mm, starter mounting

1шт.

3

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

Starter mounting Hex, M10 x 1.25 x 25, 8.8, Full Thd

1шт.

892-11010

LOCK WASHER,M10

Starter mounting M10

1шт.

4

892-11010

LOCK WASHER,M10

Starter mounting M10

1шт.

5

1273114C1

SHIM

mounting adjust, alternator mounting

1шт.

6

1991050C1

SPACER

mounting, alternator mounting

1шт.

7

REF

INSTRUCTION

ENGINE ALTERNATOR ASSEMBLY, See Figure 4-06, alternator mounting

1шт.

8

1991740C1

BOLT

hex, 8 x 82 mm, alternator mounting

1шт.

9

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, 9 x 17 x 2 mm, hardened, alternator mounting

1шт.

10

1273117C1

SUPPORT ASSY.

STRAP alternator adjust, alternator mounting

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm, alternator mounting

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

13

825-1408

NUT,M8, Cl 8

Alternator mounting M8, Cl 8

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Alternator mounting M8

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm, Alternator mounting

2шт.

17

1992825C1

GLOW PLUG

PLUG glow

3шт.

18

1273119C1

CABLE PULLING GRIP

CABLE glow plug

2шт.

19

1273120C1

LAMP

indicator, glow plug

1шт.
