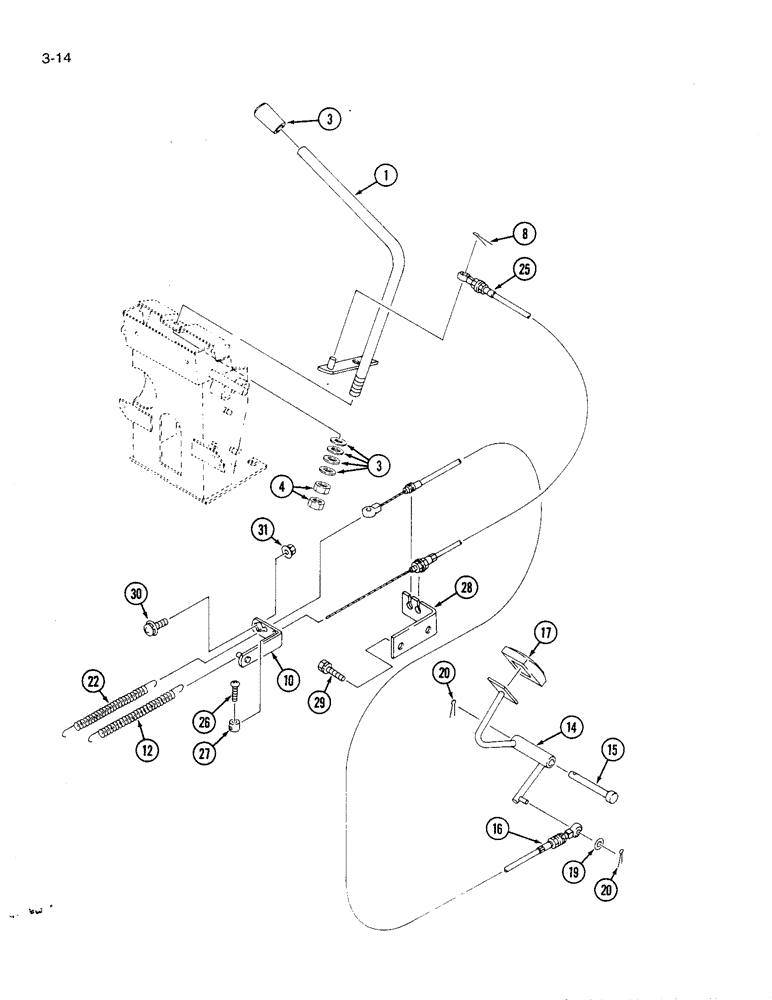

Запчасти Case IH 1120 (3-14) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1991106C1

LEVER

throttle

1шт.

2

1992271C1

GRIP

KNOB throttle lever, Replaces 1992272C1

1шт.

3

1269855C1

WASHER

spring

4шт.

4

825-11412

NUT,M12 x 1.25, Cl 8

hex, 12 mm - 1.25

2шт.

8

732-2516

COTTER PIN,M2.5 x 16

PIN cotter

1шт.

10

1991109C1

PLATE

connector, cable

1шт.

12

1991111C1

SPRING

used on machines equipped with mechanical transmission

2шт.

12

1991111C1

SPRING

used on machines equipped with hydrostatic transmission

1шт.

14

1991112C1

PEDAL

foot throttle

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

15

1991126C1

PIN

foot throttle

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

16

1991113C1

CABLE

throttle

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

17

1992272C1

PEDAL

COVER pedal

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

20

732-2516

COTTER PIN,M2.5 x 16

PIN hair

2шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

22

1991294C1

SPRING

compression

1шт.

Not required for machines equipped with hydrostatic transmission.

1шт.

25

1991107C1

CABLE

control

1шт.

26

1963249C1

SCREW

1шт.

27

1963248C1

GASKET

NUT

1шт.

28

1991108C1

BRACKET

cable

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

540-703

SCREW,Cross Pan Hd, M6 x 12, 8.8

pan head, cross recess, 6 x 12 mm

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

31

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.
