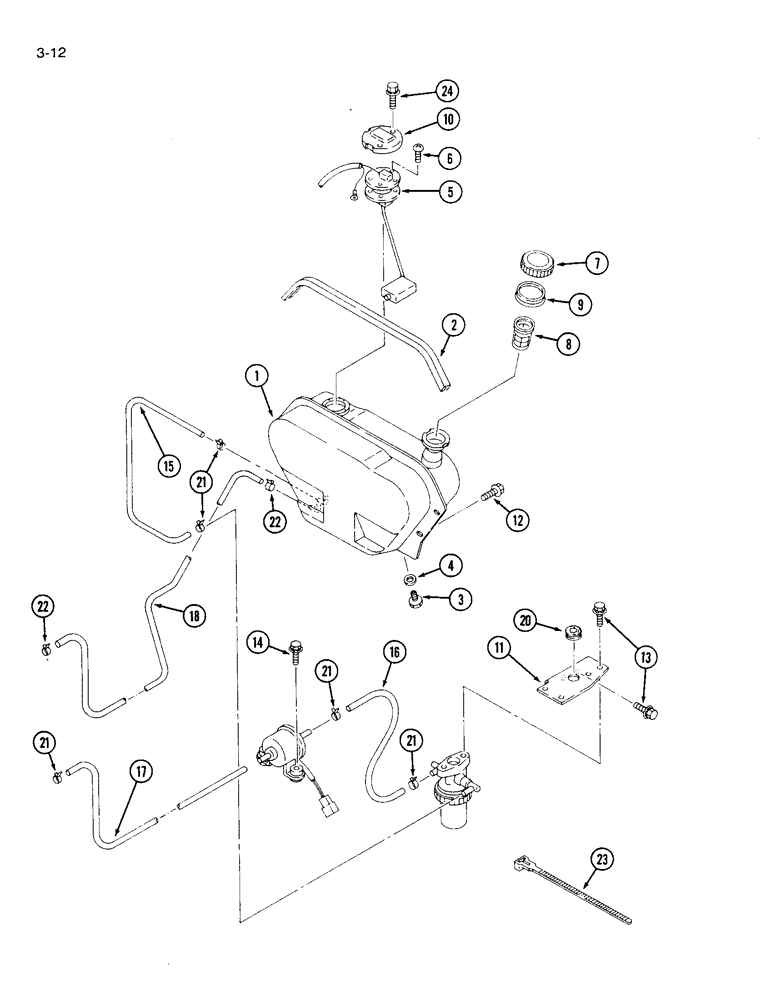

Запчасти Case IH 1120 (3-12) - FUEL TANK SYSTEM (03) - FUEL SYSTEM

1991092C1

TANK

FUEL TANK ASSEMBLY, Includes Ref. 1 - 10

1шт.

1

1991093C1

FUEL TANK

TANK fuel

1шт.

2

1991094C1

ORNAMENTAL STRIP

BAND fuel tank

2шт.

3

1269630C1

BOLT,M8 x 1.25 x 12mm

PLUG drain

1шт.

4

1992268C1

SEALING WASHER

drain

1шт.

5

1269633C1

GAUGE ASSY.

FUEL LEVER SENDER UNIT ASSEMBLY

1шт.

6

30512R1

SCREW,Cross Pan Hd, M4 x 12

4 x 12 mm, phc, class 4.8

3шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

3шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

3шт.

7

99395C1

CAP ASSY.

CAP fuel tank

1шт.

8

1269628C2

STRAINER ELEMENT

STRAINER fuel

1шт.

9

1269627C1

SEAL

fuel tank cap

1шт.

10

1992263C1

COVER

fuel unit

1шт.

11

1992264C1

BRACKET

fuel filter

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

13

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

892-11010

LOCK WASHER,M10

3шт.

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

3шт.

14

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

1991097C1

FUEL HOSE,6.00 mm ID x 400.00 mm

6.00 mm ID x 400.00 mm

1шт.

16

1991098C1

FUEL HOSE

1шт.

17

1992811C1

HOSE

fuel

1шт.

18

1991100C1

FUEL HOSE

1шт.

20

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

1-1/8 x 1-3/4 x 7/16 inch

1шт.

21

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

6шт.

22

214-1306

CLAMP hose

2шт.

23

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

5шт.

24

840-1414

SCREW,Pan, Cl 4.8

pan, 4 x 14 mm

2шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

2шт.
