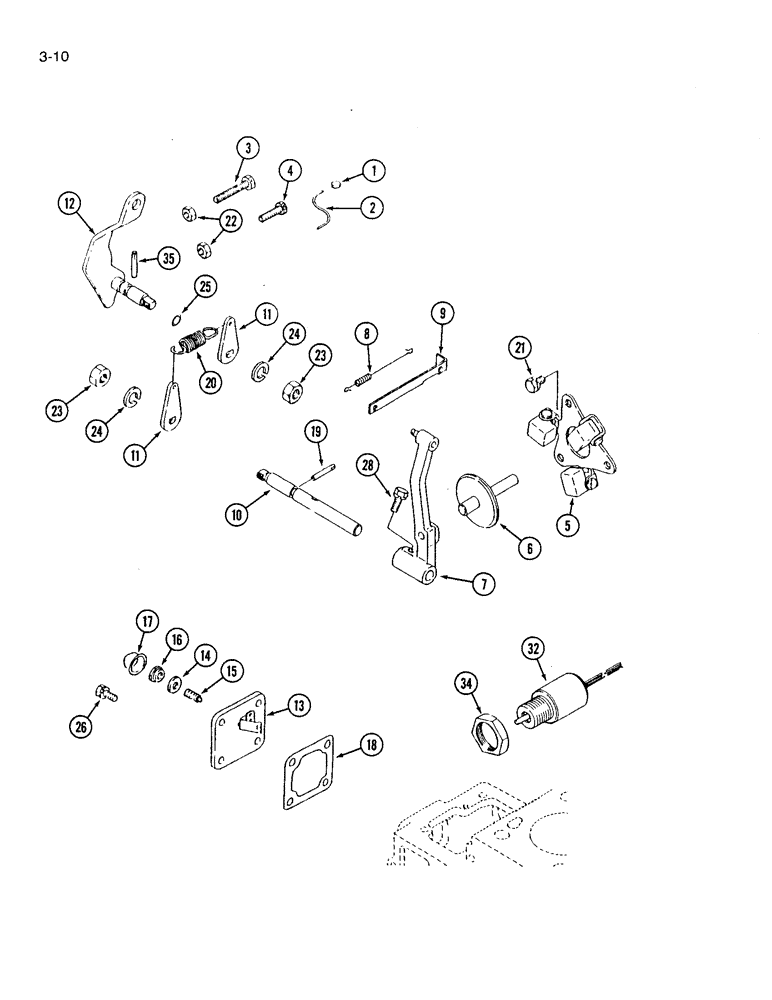

Запчасти Case IH 1120 (3-10) - GOVERNOR CONTROLS (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

SEAL lock wire

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE lock

1шт.

3

1271819C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 35mm

BOLT high speed set

1шт.

4

1271830C1

BOLT,Set, Drilled Hex Hd, M6 x 1 x 20mm

BOLT hex, drilled head, 6 x 20 mm

1шт.

5

1273034C1

WEIGHT

GOVERNOR WEIGHT ASSEMBLY

1шт.

6

1273035C1

SHAFT HOUSING

SLIDING SHAFT ASSEMBLY

1шт.

7

1273036C1

LEVER

GOVERNOR LEVER ASSEMBLY

1шт.

8

1273037C1

VALVE SPRING

SPRING tie rod

1шт.

9

1273038C1

SUPPORT ASSY.

ROD tie

1шт.

10

1273039C1

SHAFT HOUSING

SHAFT governor

1шт.

11

1273040C1

ARM

spring

2шт.

12

1991032C1

LEVER ASSY.

SPEED CONTROL LEVER ASSEMBLY

1шт.

13

1991033C1

COVER

TIE ROD COVER ASSEMBLY, Includes Ref. 14, 15 and 16

1шт.

14

1273044C1

SEALING WASHER

SEAL washer

1шт.

15

1273045C1

ADJUSTMENT SCREW,M6 x 17mm

SCREW adjusting

1шт.

16

1273046C1

NUT

special

1шт.

17

1273047C1

CYLINDER END CAP

CAP sealing

1шт.

18

1991034C1

GASKET

cover

1шт.

19

1271831C1

AXLE PIN

PIN grooved

1шт.

20

1273049C1

VALVE SPRING

SPRING governor

1шт.

21

614-6010

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

3шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

22

825-1406

NUT,M6, Cl 8

2шт.

23

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

1271836C1

O-RING,6.8mm ID x 1.9mm Width

O-RING, 7 mm ID

1шт.

26

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

with washer, 6 x 14 mm

4шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

28

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

with washer, 6 x 14 mm

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

32

1991037C1

SOLENOID

RELAY solenoid

1шт.

34

1273055C1

NUT

hex, 30 mm

1шт.

35

1963634C1

AXLE PIN

PIN grooved, 3 x 20 mm

1шт.
