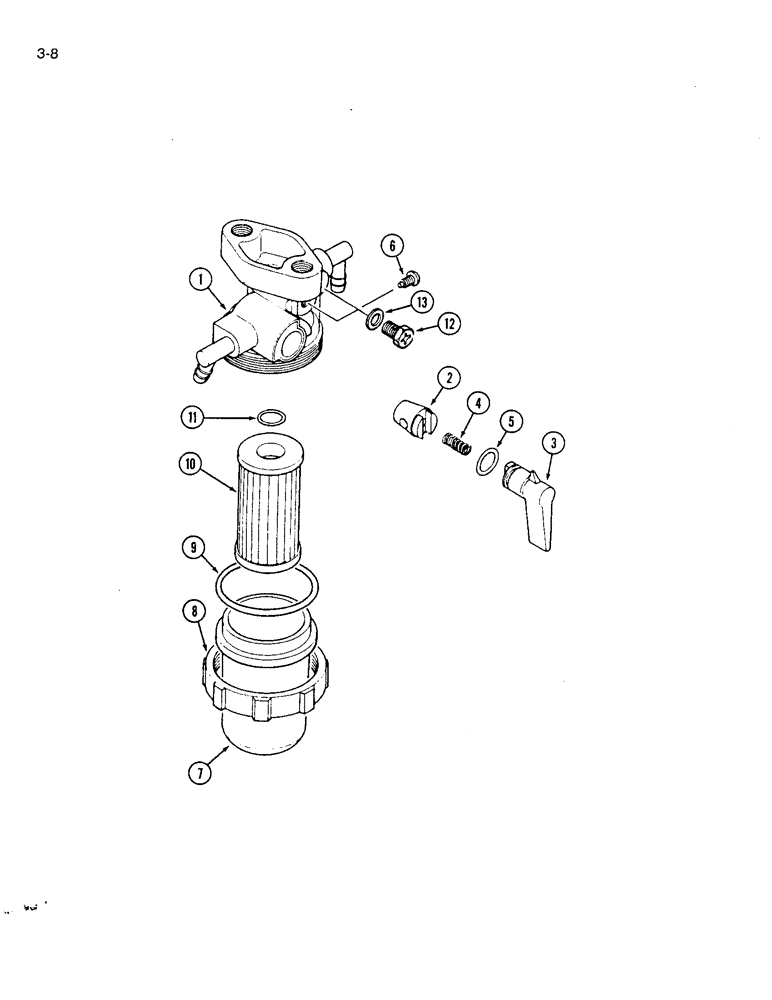

Запчасти Case IH 1120 (3-08) - FUEL FILTER (03) - FUEL SYSTEM

1992767C1

FILTER ASSY

FUEL FILTER ASSEMBLY, Includes Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

BODY filter

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE filter

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER valve

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING valve

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW

1шт.

7

NSS

NOT SOLD SEPARAT

CUP filter

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ring

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING filter cup

1шт.

Part of Fuel Filter Element Kit P/N 1273082C1

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT fuel filter

1шт.

Part of Fuel Filter Element Kit P/N 1273082C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING element

1шт.

Part of Fuel Filter Element Kit P/N 1273082C1

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW air vent

2шт.

13

NSS

NOT SOLD SEPARAT

GASKET air vent

2шт.

1273082C1

KIT

Element, fuel filter, Includes Ref. 9, 10 and 11

1шт.
