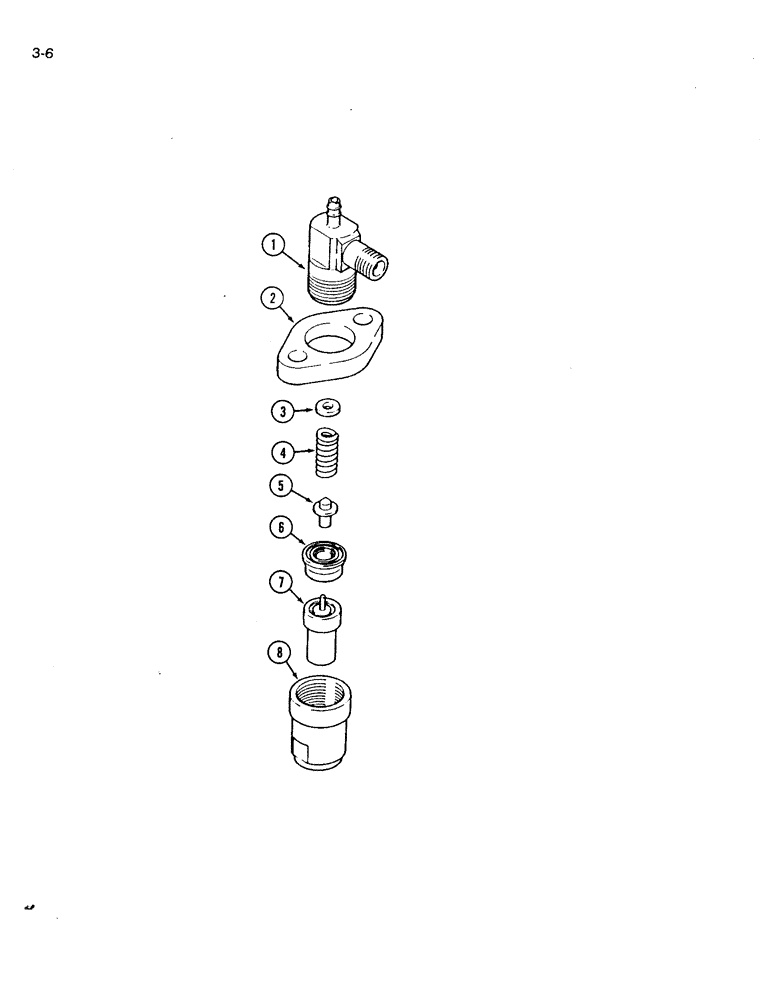

Запчасти Case IH 1120 (3-06) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1271999C1

NOZZLE INJECTION

FUEL INJECTION NOZZLE AND HOLDER ASSEMBLY, new, Includes Ref. 1 - 8

3шт.

1

NSS

NOT SOLD SEPARAT

BODY injector

1шт.

2

NSS

NOT SOLD SEPARAT

FLANGE holder

3шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 0.10 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 0.90 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.00 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.10 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.20 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.30 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.35 mm

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER adjusting, 1.40 mm

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING pressure

3шт.

5

NSS

NOT SOLD SEPARAT

PIN pressure

3шт.

6

NSS

NOT SOLD SEPARAT

STOP nozzle assembly

3шт.

7

NSS

NOT SOLD SEPARAT

TIP nozzle assembly

3шт.

8

NSS

NOT SOLD SEPARAT

CAP nut, nozzle end

3шт.
