(3-04) - FUEL INJECTION PUMP

Запчасти Case IH 1120 (3-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

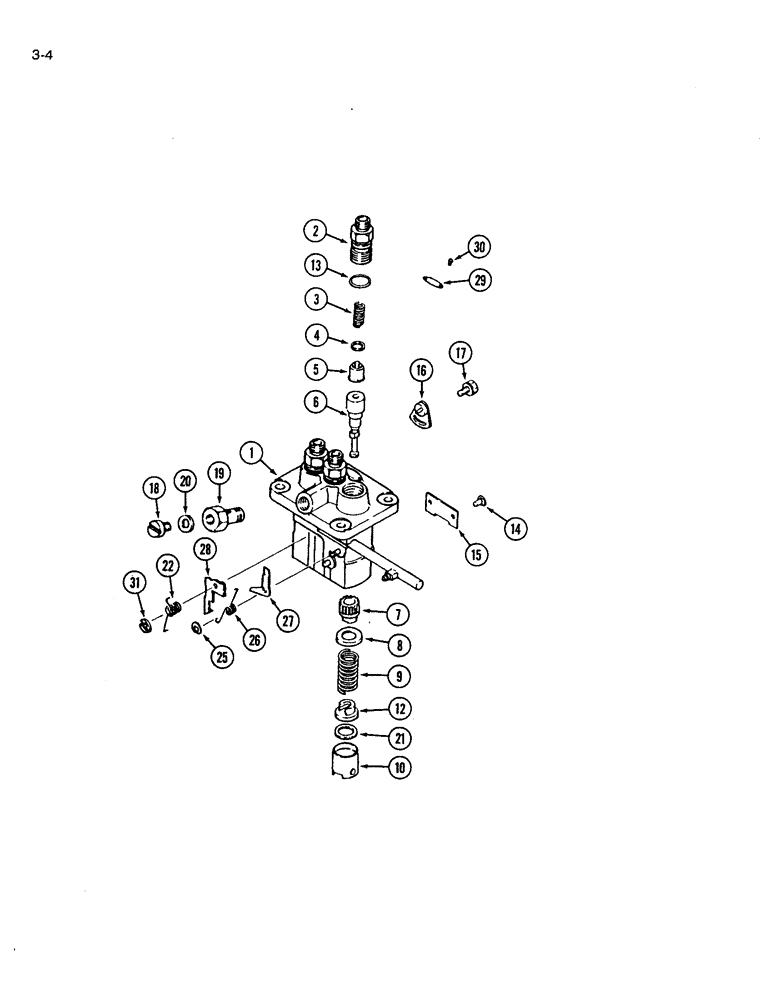

Схема запчастей Case IH 1120 - (3-04) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
13
4
5
16
25
21
31
20
10
7
19
27
1
2
14
18
15
3
30
12
17
6
28
8
29
22
9
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1992803C1

PUMP

FUEL INJECTION PUMP ASSEMBLY, Includes Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

INJECTION PUMP HOUSING ASSEMBLY

1шт.

2

1273499C1

NOZZLE HOLDER

HOLDER delivery valve

3шт.

3

1273500C1

VALVE SPRING

SPRING delivery valve

3шт.

4

1991031C1

GASKET

delivery valve

3шт.

5

1273503C1

LOCK VALVE

DELIVERY VALVE ASSEMBLY

3шт.

6

NSS

NOT SOLD SEPARAT

PUMP ELEMENT ASSEMLBY

3шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE plunger control

3шт.

8

NSS

NOT SOLD SEPARAT

SEAT spring, upper

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING pump plunger

3шт.

10

NSS

NOT SOLD SEPARAT

PUMP TAPPET ASSEMBLY

3шт.

11

NSS

NOT SOLD SEPARAT

CONTROL PACK ASSEMBLY

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT spring, lower

3шт.

13

1273511C1

O-RING

O-RING

3шт.

14

NSS

NOT SOLD SEPARAT

PIN tappet guide

3шт.

15

NSS

NOT SOLD SEPARAT

PLATE

1шт.

16

NSS

NOT SOLD SEPARAT

ADJUSTING PLATE ASSEMBLY

2шт.

17

NSS

NOT SOLD SEPARAT

BOLT with washer

2шт.

18

1273516C1

SCREW

Bleed

1шт.

19

1273517C1

SCREW

hollow

1шт.

20

1273518C1

WASHER

breather

1шт.

21

NSS

NOT SOLD SEPARAT

SHIM plate

1шт.

22

1273519C1

VALVE SPRING

SPRING return

1шт.

25

1273359C1

RING

E-RING pump

1шт.

26

1962908C1

VALVE SPRING

SPRING, Replaces 1992806C1, Includes Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE set

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE set

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

30

NSS

NOT SOLD SEPARAT

RIVET

2шт.

31

1962757C1

CIRCLIP

E-RING pump

1шт.
