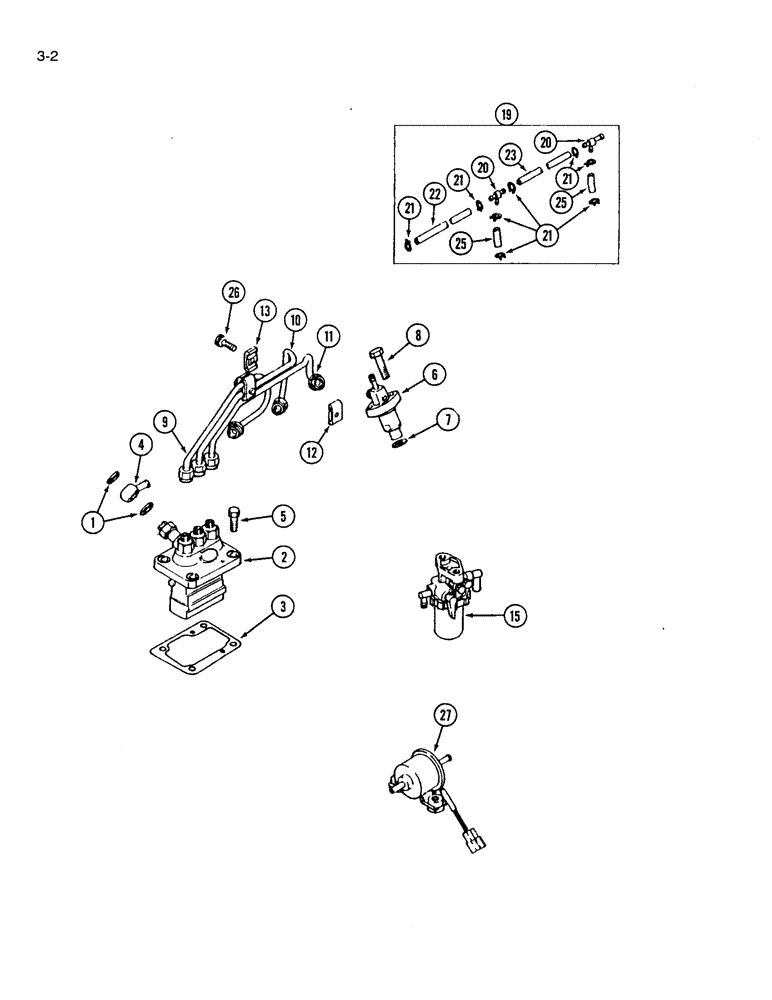

Запчасти Case IH 1120 (3-02) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

1271994C1

SEALING WASHER

SEAL washer

2шт.

2

1992803C1

PUMP

FUEL INJECTION PUMP ASSEMBLY

1шт.

3

1275096C1

KIT

Shim, injection pump adjusting

1шт.

4

1271998C1

TEE

union

1шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

4шт.

6

REF

INSTRUCTION

FUEL INJECTION NOZZLE ASSEMBLY, See Figure 3-06

3шт.

7

1273000C1

GASKET

nozzle holder

3шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

6шт.

9

1273001C1

FUEL TUBE

FUEL INJECTION TUBE ASSEMBLY, No. 1 cylinder

1шт.

10

1273002C1

FUEL TUBE

FUEL INJECTION TUBE ASSEMBLY, No. 2 cylinder

1шт.

11

1273003C1

FUEL TUBE

FUEL INJECTION TUBE ASSEMBLY, No. 3 cylinder

1шт.

12

1273004C1

CLAMP

injection tubes

2шт.

13

1273005C1

CLAMP

injection tubes

2шт.

15

REF

INSTRUCTION

FUEL FILTER ASSEMBLY, See Figure 3-08

1шт.

19

1992804C1

PIPE ASSY.

FUEL RETURN PIPE ASSEMBLY, Includes Ref. 20 - 25

1шт.

20

1273011C1

TEE

fuel, leak off

2шт.

21

214-1304

HOSE CLAMP,#4, 1/4", Spring

CLAMP hose

8шт.

22

1991025C1

HOSE

rubber, 4 ID x 80 mm

1шт.

After old parts are exhausted use P/N 74812C1

1шт.

23

1991026C1

HOSE

rubber, 4 ID x 110 mm

1шт.

After old parts are exhausted use P/N 74812C1

1шт.

25

1991028C1

PLASTIC-RUBBER TUBE

HOSE rubber, 4 ID x 35 mm

1шт.

After old parts are exhausted use P/N 74812C1

1шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

27

1991029C1

PUMP

FUEL PUMP ASSEMBLY, See Figure 3-04

1шт.
