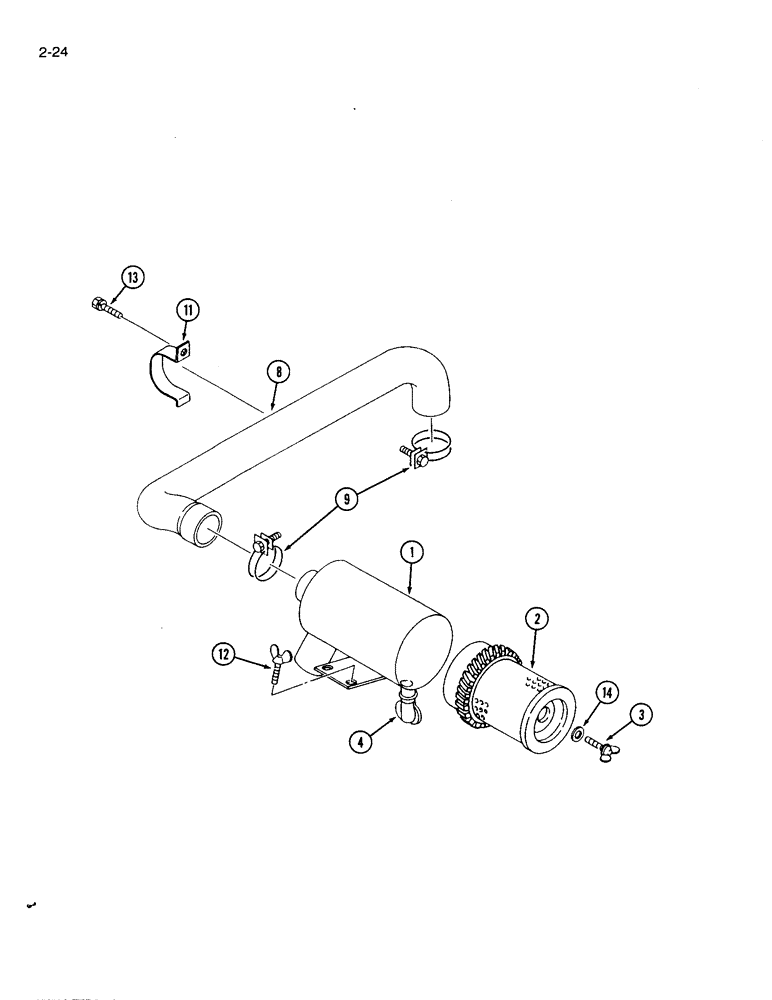

Запчасти Case IH 1120 (2-24) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1991085C1

AIR CLEANER

ASSEMBLY, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY air cleaner, Order 1991085C1

1шт.

2

1991087C1

ELEMENT

air cleaner

1шт.

3

1269653C1

BOLT

BOLT wing

1шт.

4

1992504C1

VALVE

air cleaner

1шт.

8

1991088C1

INTAKE AIR HOSE

HOSE air cleaner

1шт.

9

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP hose, No. 32 type F

2шт.

11

1991091C1

CLAMP

hose

1шт.

12

1963274C1

THUMB SCREW

BOLT wing

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.
