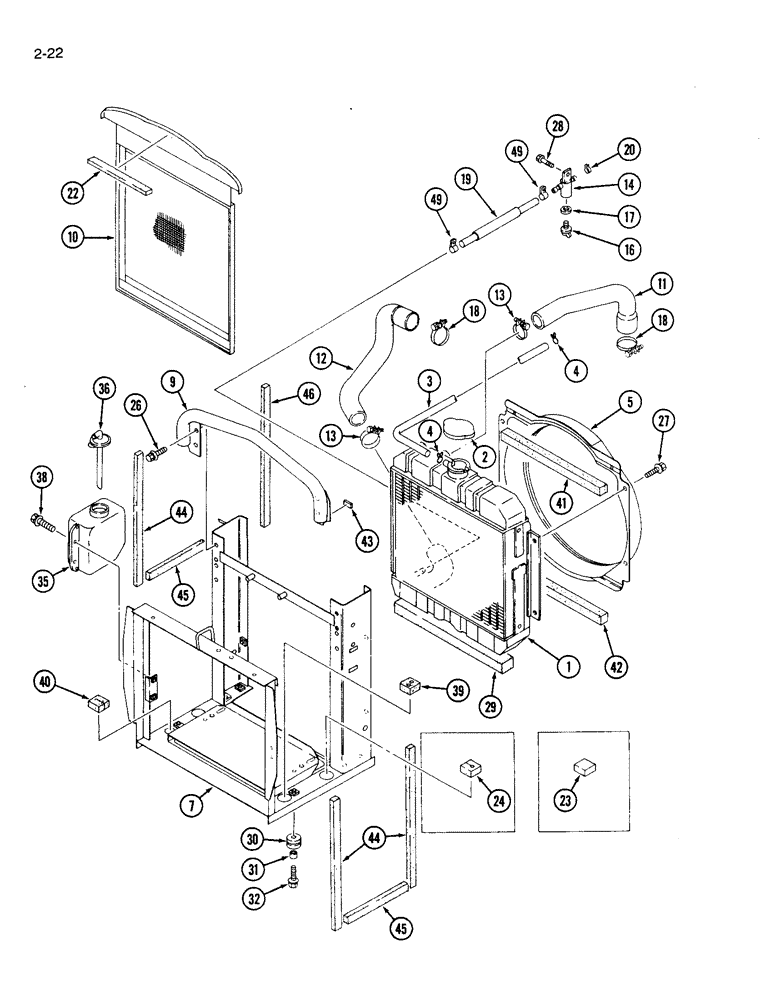

Запчасти Case IH 1120 (2-22) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1991071C1

RADIATOR

ENGINE RADIATOR ASSEMBLY, Includes Ref. 1 - 4

1шт.

1

1991072C1

RADIATOR

BODY radiator

1шт.

2

1961825C1

RADIATOR CAP

CAP radiator

1шт.

3

1992621C1

HOSE

radiator overflow

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, #4, 0.25/0.62 Type M Worm

2шт.

5

1991074C1

SHROUD

fan

1шт.

7

1991075C1

BRACKET

radiator, hydrostatic transmission

1шт.

9

1992267C1

FRAME

BRACKET front frame

1шт.

10

1991077C1

GRILLE

SCREEN radiator

1шт.

11

1991078C1

RADIATOR HOSE

Upper

1шт.

12

1991079C1

RADIATOR HOSE

Lower

1шт.

13

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP hose

2шт.

14

1269622C1

TEE

radiator drain

1шт.

16

1275078C1

LOCK VALVE

VALVE drain cock

1шт.

17

1275077C1

GASKET

drain cock

1шт.

18

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

19

1992500C1

PIPE

water

1шт.

20

1269644C1

CLAMP

hose

1шт.

22

1992501C1

CUSHION

sealing

1шт.

23

1991083C1

CUSHION

sealing, mechanical transmission

2шт.

24

1991084C1

CUSHION

sealing, hydrostatic transmission

2шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

27

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 x 20 mm

4шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, 8 mm x 20 mm

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

2шт.

29

1991095C1

CUSHION

sealing

1шт.

30

1991579C1

GROMMET

6шт.

31

1269821C1

SPACER

COLLAR retaining

6шт.

32

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 25 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

6шт.

1961821C1

TANK

OVERFLOW TANK ASSEMBLY, Includes Ref. 35 and 36

1шт.

35

1963348C1

TANK

overflow, radiator

1шт.

36

1963349C1

CAP

tank, overflow

1шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

2шт.

39

1992502C1

CUSHION

sealing

1шт.

40

1992503C1

CUSHION

sealing

1шт.

41

1992403C1

SEAL

strip

1шт.

42

1992681C1

SEAL

CUSHION rubber

1шт.

143

1992682C1

SEAL

CUSHION rubber

1шт.

44

1992765C1

CUSHION

radiator

3шт.

45

1992766C1

CUSHION

rubber

2шт.

46

1992795C1

CUSHION

rubber

1шт.

49

214-1506

HOSE CLAMP,11.18mm - 19.81mm

CLAMP hose

2шт.
