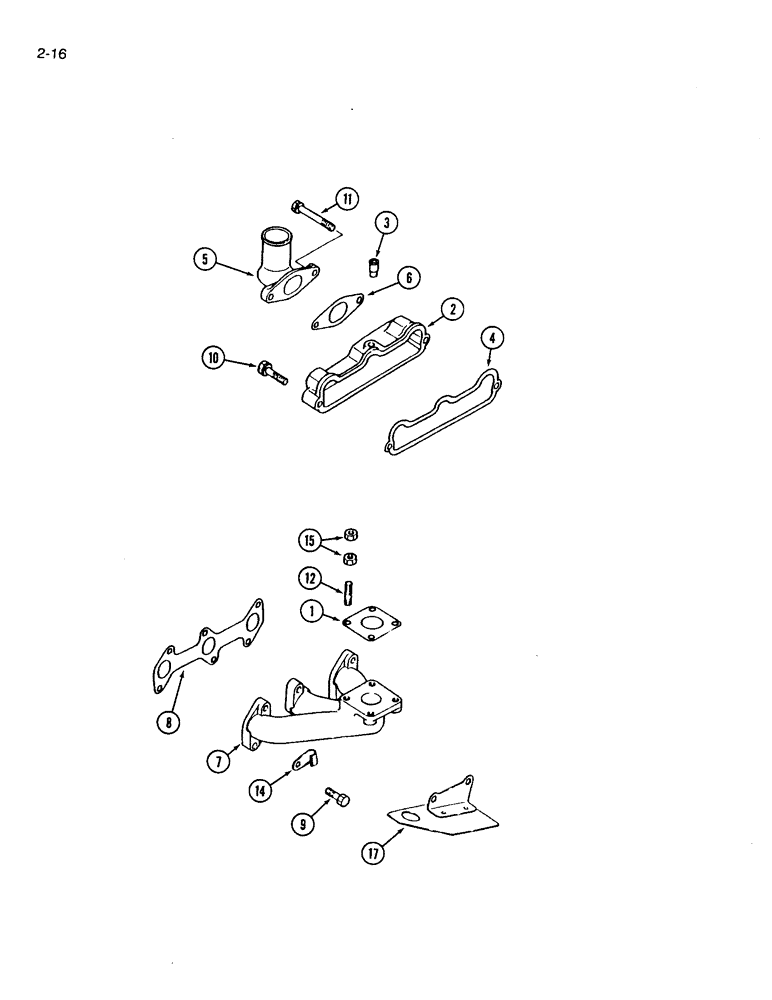

Запчасти Case IH 1120 (2-16) - INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

1

1991047C1

GASKET

exhaust, Serial Range: manifold-muffler

1шт.

2

1273106C91

MANIFOLD

INTAKE MANIFOLD ASSEMBLY, Includes Ref. 3

1шт.

3

1271925C1

TUBE,7 mm ID, 10.8 mm OD, 75 mm Length

breather hose

1шт.

4

1273107C1

MANIFOLD GASKET

intake manifold

1шт.

5

1273108C1

ELBOW UNION

ELBOW inlet

1шт.

6

1273109C1

GASKET

inlet elbow

1шт.

7

1991048C1

MANIFOLD

exhaust

1шт.

8

1991049C1

MANIFOLD GASKET

exhaust manifold

1шт.

9

614-8028

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

hex, 8 x 28 mm

5шт.

10

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

12

1273129C1

STUD

muffler mounting, 8 x 25 mm

4шт.

14

351009R1

CLIP

tachometer cable

1шт.

15

1282956C2

NUT

hex special, 8 mm

8шт.

17

1992768C1

COVER

starter

1шт.
