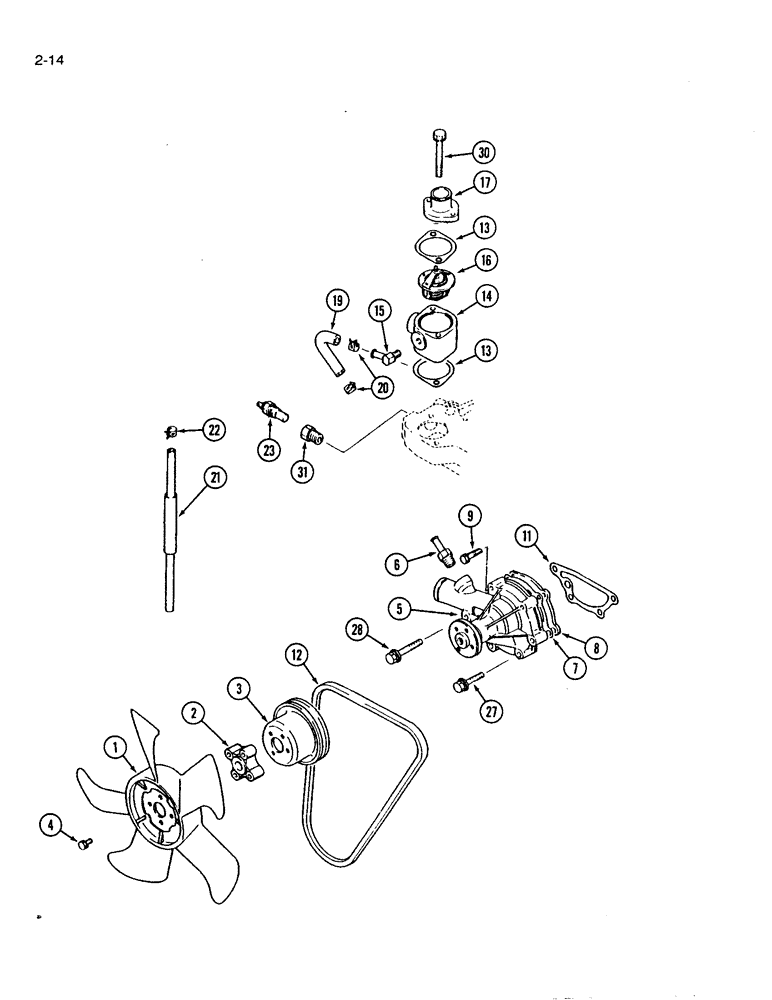

Запчасти Case IH 1120 (2-14) - WATER PUMP (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1962910C1
FAN
cooling
1шт.
2
1991052C1
STRAP
SPACER fan
1шт.
3
1273084C1
PULLEY
water pump
1шт.
4
814-6075
BOLT,Hex, M6 x 1 x 75mm, Cl 8.8
hex, 6 x 75 mm
4шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
4шт.
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
5
1273085C91
PUMP
WATER PUMP ASSEMBLY, Includes Ref. 6 - 9
1шт.
1273085C91R
REMAN-WATER PUMP
1120
1шт.
1273085C91C
CORE-WATER PUMP
Return Number
1шт.
6
1273096C1
FITTING
hose, nipple, straight, 3/8 PT
1шт.
7
NSS
NOT SOLD SEPARAT
GASKET water pump
1шт.
8
NSS
NOT SOLD SEPARAT
PLATE water pump
1шт.
9
814-6030
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
- hex, 6mm - 1.00 x 30 mm
3шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
3шт.
11
1991043C1
GASKET
water, Serial Range: pump-block
1шт.
12
1991044C1
BELT
V-BELT, Fan
1шт.
13
1273088C1
GASKET
thermostat housing
2шт.
14
1273098C1
HOUSING
thermostat
1шт.
15
1273090C1
ELBOW UNION
FITTING water outlet
1шт.
16
1273091C1
THERMOSTAT
coolant, 180 Degrees F
1шт.
17
1273092C1
FITTING
HOUSING thermostat
1шт.
19
1992823C1
HOSE ASSY.
HOSE water bypass, 150 mm long
1шт.
20
214-1308
HOSE CLAMP,#8, 1/2", Spring
CLAMP, HOSE, #8, 1/2", Spring
2шт.
21
1992807C1
HOSE ASSY.
HOSE water drain, 6 x 330 mm
1шт.
22
214-1308
HOSE CLAMP,#8, 1/2", Spring
CLAMP, HOSE, #8, 1/2", Spring
1шт.
23
1991045C1
UNIT
SENDER engine coolant temperature
1шт.
27
814-8045
BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8
hex, 8 - 1.25 x 45 mm
3шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
3шт.
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm
3шт.
28
614-8060
BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8, Full Thd
1шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm
1шт.
30
814-8070
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
HH, CL 8.8, M8 x 1.25 x 70
2шт.
892-1108
LOCK WASHER,M8
2шт.
31
1991046C1
JOINT
FITTING thermostat
1шт.
Выбрано товаров: 35
