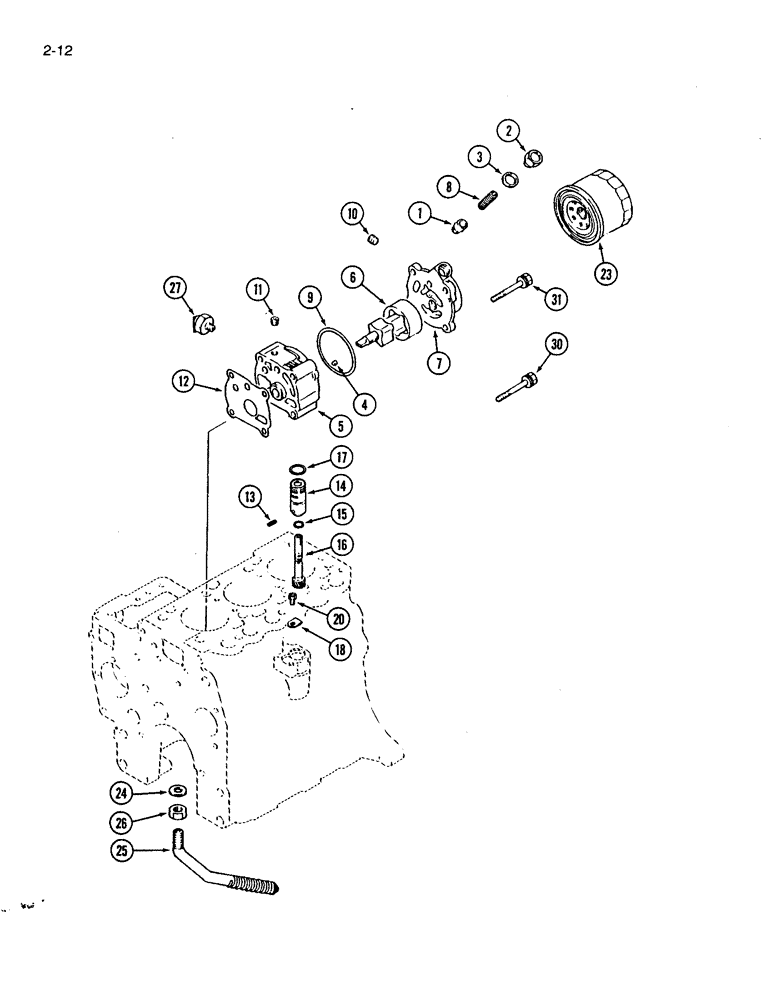

Запчасти Case IH 1120 (2-12) - OIL PUMP AND FILTER (02) - ENGINE

1273056C91

PUMP, ENGINE OIL

OIL PUMP ASSEMBLY, Includes Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER relief valve

1шт.

Part of Oil Pump Relief Valve Kit P/N 1273080C1

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

Part of Oil Pump Relief Valve Kit P/N 1273080C1

1шт.

3

1271905C1

GASKET

relief valve

1шт.

Part of Oil Pump Relief Valve Kit P/N 1273080C1

1шт.

4

NSS

NOT SOLD SEPARAT

PIN dowel

2шт.

5

NSS

NOT SOLD SEPARAT

BODY oil pump

1шт.

6

NSS

NOT SOLD SEPARAT

OIL PUMP ROTOR ASSEMBLY

1шт.

Part of Oil Pump Rotor Kit 1991041C1

1шт.

7

NSS

NOT SOLD SEPARAT

COVER oil pump

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

Part of Oil Pump Relief Valve Kit P/N 1273080C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Oil Pump Rotor Kit 1991041C1

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG pump cover

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG pump body

1шт.

12

1991040C1

GASKET

oil pump

1шт.

Part of Oil Pump Rotor Kit 1991041C1

1шт.

1273065C91

DRIVE ASSY.

SPEEDOMETER DRIVE ASSEMBLY, Includes Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

PIN spring

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE gear

1шт.

15

1271834C1

O-RING,10.3mm ID x 2.4mm Width

O-RING, 10 mm ID, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR driven

1шт.

17

1269871C1

O-RING,17.8mm ID x 2.4mm Width

18 mm ID

1шт.

18

1273068C1

BAR

speedometer drive, locking

1шт.

20

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm

1шт.

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

1275229C2

FILTER, ENGINE OIL

FILTER oil

1шт.

Alternate with filter element 104079A1

1шт.

24

1273070C1

SEALING WASHER

SEAL washer

1шт.

25

1282962C1

TUBE,140, 90 mm Length

oil screen, Includes Ref. 26

1шт.

26

1269797C1

TUBE NUT

NUT hex jam, 16 mm

1шт.

27

1273073C1

SWITCH

oil pressure

1шт.

30

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

hex, 8 - 1.25 x 65 mm

3шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

3шт.

31

827-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 10.9

ASSEMBLY

1шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

1шт.

1273080C1

KIT

Relief Valve, oil pump, Includes Ref. 1, 2, 3 and 8

1шт.

1991041C1

KIT

Rotor, oil pump, Includes Ref. 6, 9 and 12

1шт.
