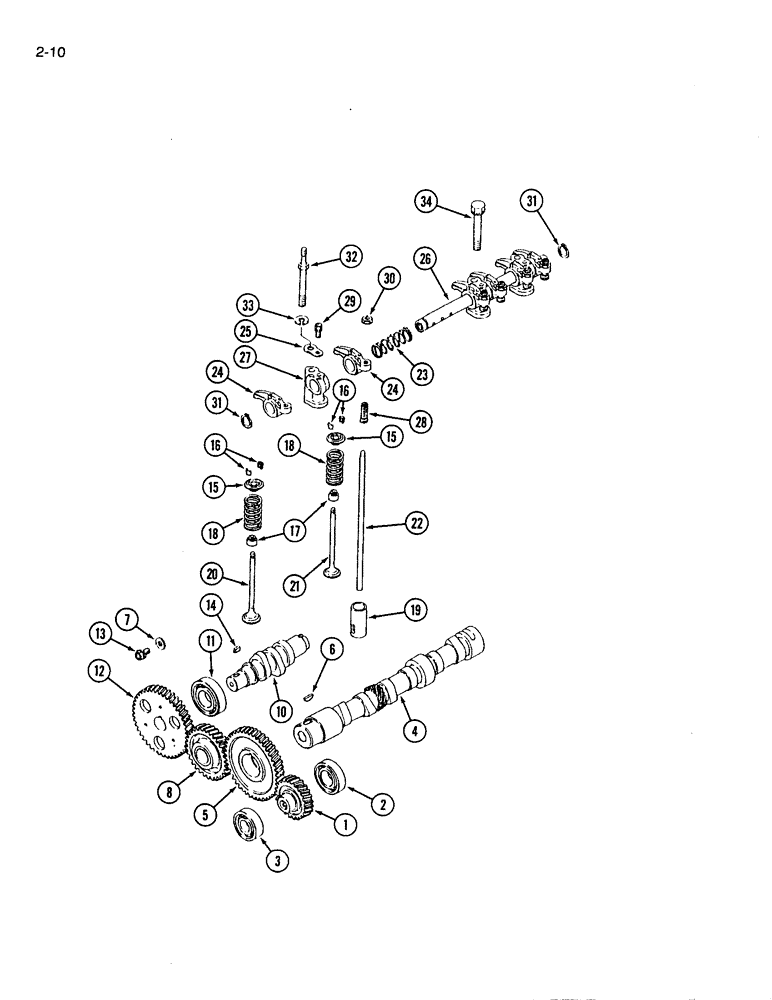

Запчасти Case IH 1120 (2-10) - CAMSHAFT, VALVE MECHANISM AND GEARS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1992827C1
PUMP
GEAR oil pump, Replaces 1991020C1
1шт.
2
1991021C1
BALL BEARING
ASSEMBLY
1шт.
3
1273146C91
BEARING, BALL,25 mm ID x 52 mm OD x 15 mm
BALL BEARING ASSEMBLY
1шт.
4
1271972C1
CAMSHAFT
engine
1шт.
5
1271973C1
GEAR WHEEL
GEAR camshaft
1шт.
6
1271974C1
KEY
woodruff, 5 x 19 mm
1шт.
7
896-11008
WASHER,9mm ID x 17mm OD x 2mm Thk
flat, 9 x 17 x 2 mm, hardened
1шт.
8
1271975C1
GEAR WHEEL
IDLER GEAR ASSEMBLY, Includes Ref.
1шт.
NSS
NOT SOLD SEPARAT
BUSHING idler gear
1шт.
10
1271976C1
CAMSHAFT
injection pump
1шт.
11
1273356C91
BEARING, BALL,28 mm ID x 58 mm OD x 16 mm
BALL BEARING ASSEMBLY
1шт.
12
1271977C1
GEAR WHEEL
GEAR injection pump
1шт.
13
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
hex, 8 - 1.25 x 16 mm
1шт.
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
14
1271978C1
BAR
KEY injection pump gear, 5 x 12 mm
1шт.
15
1271979C1
RETAINER
valve spring
6шт.
16
1271980C1
KEY
valve spring retainer lock
12шт.
17
1271981C1
SEAL
SEAL valve stem, Replaces 1271198C1
6шт.
18
1271982C1
VALVE SPRING
SPRING valve
6шт.
19
1271983C1
TAPPET
push rod
6шт.
20
1991023C1
VALVE
intake
3шт.
21
1991024C1
VALVE
exhaust
3шт.
22
1271986C1
AXLE PIN
ROD push
6шт.
23
1271987C1
VALVE SPRING
SPRING rocker arm shaft
2шт.
24
1271988C1
ARM
rocker
6шт.
25
1271989C1
WASHER
seat
2шт.
26
1271990C1
SHAFT HOUSING
ROCKER SHAFT ASSEMBLY
1шт.
27
1271991C1
BRACKET
rocker arm shaft
3шт.
28
1271992C1
ADJUSTMENT SCREW,M10 x 1.25 x 34mm
SCREW adjusting
6шт.
29
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
2шт.
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
2шт.
30
1269793C1
NUT
hex, jam, 10 mm
6шт.
31
933081R1
SNAP RING,M19, Ext
RING retaining, external, 17 mm ID
2шт.
32
1273141C1
STUD,M10 x 1.25 - M8 x 1.25 x 108mm L
special
2шт.
33
892-11010
LOCK WASHER,M10
2шт.
34
1273143C1
BOLT,Hex, M10 x 1.25 x 70mm
BOLT hex, with washer, 70 mm long
1шт.
Выбрано товаров: 36
