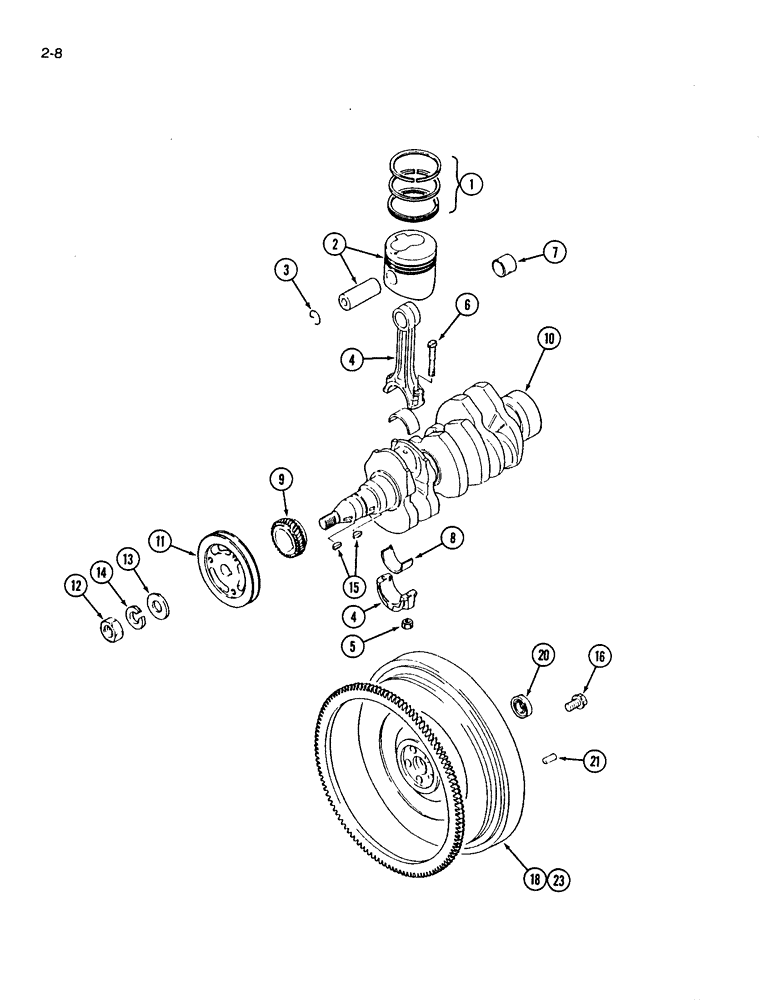

Запчасти Case IH 1120 (2-08) - PISTON, CONNECTING ROD, CRANKSHAFT AND FLYWHEEL, SINGLE AND DUAL CLUTCH (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1963646C1
RING
KIT Ring, piston, standard
3шт.
1
1963647C1
RING
KIT Ring, piston, 0.25 mm oversize
3шт.
1
1963648C1
RING
KIT Ring, piston, 0.50 mm oversize
3шт.
1
1963649C1
RING
KIT Ring, piston, 0.75 mm oversize
3шт.
2
1991014C1
PISTON
KIT Piston and Pin, standard
3шт.
2
1991015C1
PISTON ASSY.
KIT Piston and Pin, 0.25 mm oversize
3шт.
2
1991016C1
PACKAGE
KIT Piston and Pin, 0.50 mm oversize
3шт.
2
1991017C1
PISTON ASSY.
KIT Piston and Pin, 0.75 mm oversize
3шт.
3
1273079C1
RING
CLIP piston pin retainer
6шт.
4
1271952C91
ROD
CONNECTING ROD ASSEMBLY, Includes Ref. 5, 6 and 7
3шт.
5
1271953C1
NUT
connecting rod
6шт.
6
1271954C1
BOLT,M8 x 1 x 50.50mm
BOLT connecting rod
6шт.
7
1962927C1
BEARING LINER,23 mm ID x 26 mm OD x 22 mm
BEARING tapered
3шт.
8
1346690C1
BEARING SET,42.5mm ID x 45.5mm OD x 22mm W
KIT Bearing, connecting rod, standard
3шт.
8
1346691C1
BEARING SET,1.625"
KIT Bearing, connecting rod, 0.25 mm undersize
3шт.
8
1346692C1
BEARING SET
KIT Bearing, connecting rod, 0.50 mm undersize
3шт.
8
1346693C1
BEARING SET
KIT Bearing, connecting rod, 0.75 mm undersize
3шт.
9
1271963C1
GEAR WHEEL
GEAR crankshaft, front
1шт.
10
1271965C1
CRANK
SHAFT engine
1шт.
11
1991018C1
PULLEY
crankshaft
1шт.
12
1273140C1
NUT
crankshaft
1шт.
13
895-12018
WASHER,M18 x 34 x 3
flat
1шт.
14
892-11018
LOCK WASHER,M18
WASHER spring
1шт.
15
1271974C1
KEY
woodruff, 5 x 19 mm
2шт.
16
1271833C2
FLANGE BOLT,Hex Wshr Hd, M12 x 1.25 x 29mm
BOLT flywheel
5шт.
18
1991019C1
FLYWHEEL WITH GEAR
FLYWHEEL ASSEMBLY, single clutch
1шт.
1271969C1
GEAR WHEEL
GEAR ring, single clutch
1шт.
20
1273355C91
BEARING, BALL,15 mm ID x 32 mm OD x 9 mm
BALL BEARING ASSEMBLY
1шт.
21
1271835C1
AXLE PIN
PIN dowel, 8 mm OD, single clutch
3шт.
23
1992801C1
FLYWHEEL
ASSEMBLY, dual clutch
1шт.
1992802C1
RING
GEAR ring, dual clutch
1шт.
Выбрано товаров: 31
