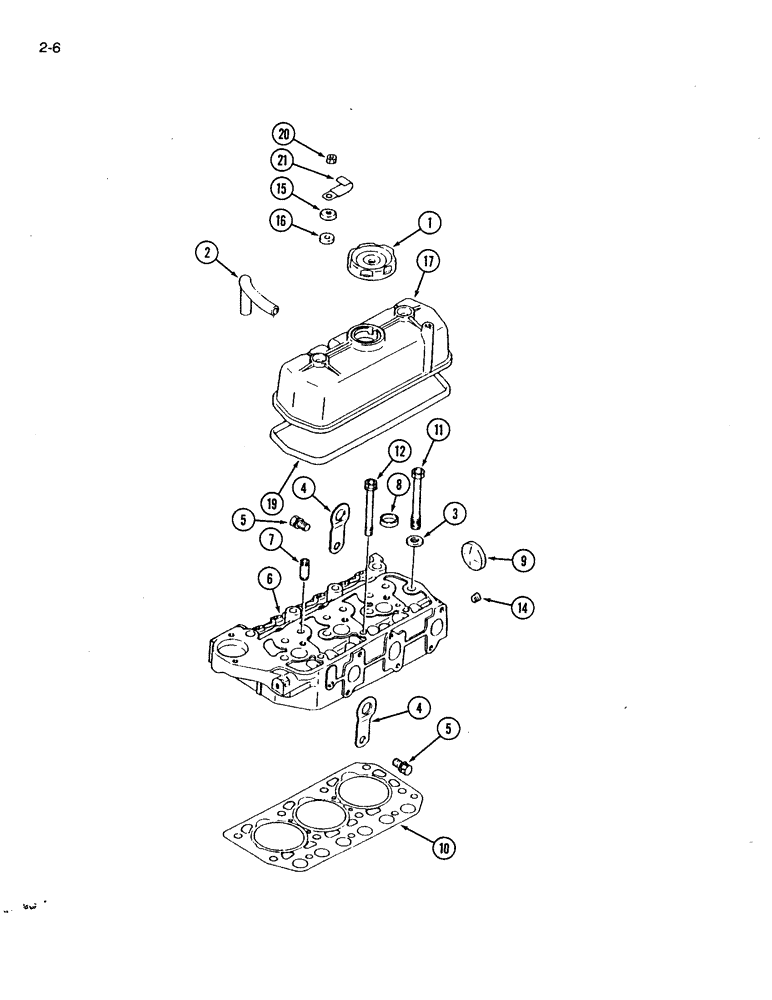

Запчасти Case IH 1120 (2-06) - CYLINDER HEAD AND COVER (02) - ENGINE

ref

1991030C1

ENGINE ASSEMBLY

1шт.

1

399725A1

PLUG

CAP oil filler

1шт.

2

1992762C1

PIPE

breather

1шт.

3

1273354C1

WASHER

head bolt, 23 mm OD

8шт.

4

1271916C1

SUPPORT ASSY.

HOOK lift

2шт.

5

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

892-11010

LOCK WASHER,M10

2шт.

6

1991013C1

CYLINDER HEAD

ASSEMBLY, Includes Ref. 7, 8 and 9

1шт.

7

1271920C1

TUBE,6.6 mm ID, 12 mm OD, 55 mm Length

GUIDE valve, intake and exhaust

6шт.

8

30591R1

PLUG,M25, Tapered

cup, 25 mm

3шт.

9

30734R1

PLUG,M45, Tapered

tapered cup, 45 mm OD

1шт.

10

1271923C1

CYLINDER HEAD GASKET

cylinder head

1шт.

11

1271828C1

BOLT,Cyl Hd, Hex, M12 x 1.25 x 98mm

BOLT cylinder head, 12 x 98 mm long

8шт.

12

1992764C1

BOLT

cylinder head, 10 x 90 mm

3шт.

14

444689

PLUG,Hex Soc, 1/8"-27, Brass

hex socket, 1/8 inch PT

1шт.

15

1273353C1

WASHER

special

2шт.

16

1273078C1

SEAL ASSY.

oil

2шт.

17

1962984C1

COVER ASSY

CYLINDER HEAD COVER ASSEMBLY

1шт.

19

1271926C1

GASKET

cover, cylinder head

1шт.

20

825-1408

NUT,M8, Cl 8

2шт.

21

351009R1

CLIP

tachometer cable

1шт.
