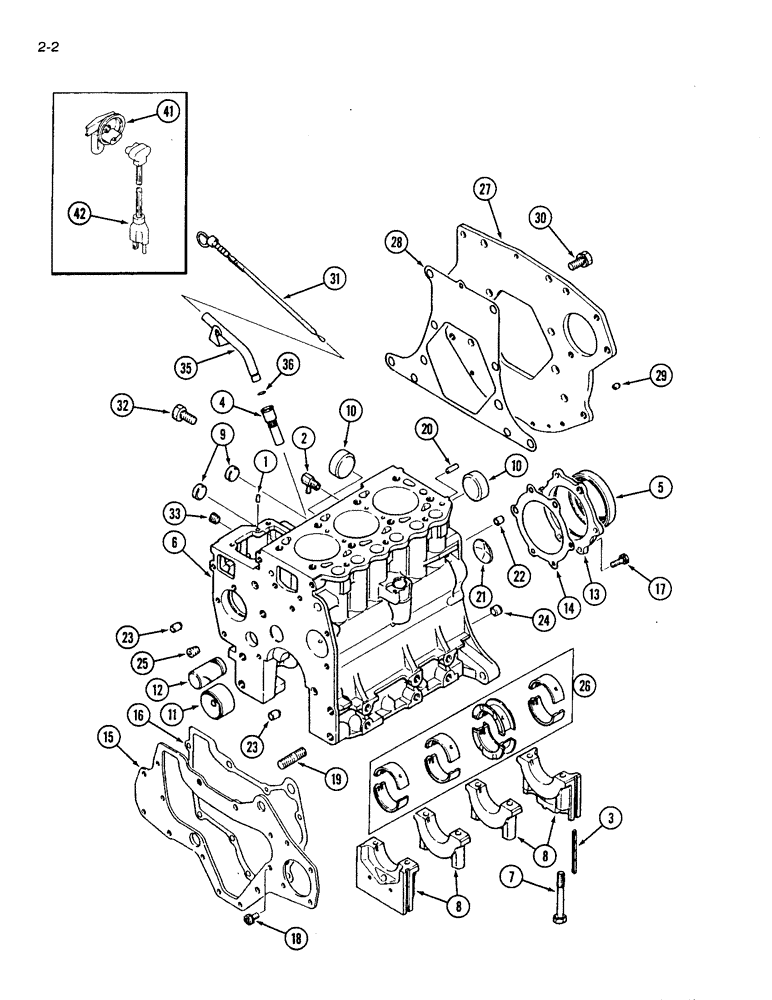

Запчасти Case IH 1120 (2-02) - CYLINDER BLOCK (02) - ENGINE

1991030C1

ENGINE ASSEMBLY

1шт.

1991030C1 is 3 cyl. K3E--14R, 64.7 Cu In., 1061 cc

1шт.

1

837-4010

DOWEL,M4 x 10

PIN dowel

2шт.

2

1271724C1

ELBOW UNION

ELBOW water drain

1шт.

3

1271776C1

SEAL

SEAL end bearing cap, side

4шт.

4

1992798C1

RETAINER

oil level gauge

1шт.

5

1273127C1

OIL SEAL

SEAL oil

1шт.

6

1287755C91

BLOCK

CYLINDER BLOCK ASSEMBLY, Includes Ref. 7 - 11

1шт.

7

1271825C1

BOLT,Hex, M10 x 1.25 x 81mm

BOLT bearing cap

8шт.

8

NSS

NOT SOLD SEPARAT

CAP bearing

1шт.

9

30591R1

PLUG,M25, Tapered

cup, 25 mm

2шт.

10

30734R1

PLUG,M45, Tapered

tapered cup, 45 mm OD

2шт.

11

1271780C1

SPACER

camshaft

1шт.

12

1271781C1

SHAFT HOUSING

SHAFT idler

1шт.

13

1271782C1

RETAINER

oil seal

1шт.

14

1991001C1

GASKET

oil

1шт.

15

1271784C1

PLATE ASSY.

PLATE front

1шт.

16

1991002C1

GASKET

front plate

1шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, 8 - 1/25 x 25 mm

6шт.

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

18

6148016

BOLT hex, 8 - 1.25 x 16 mm

3шт.

89211008

WASHER lock, 8 mm

3шт.

19

1273132C1

STUD

threaded, 14 x 30 mm

2шт.

Corresponding nut is 825-11414

1шт.

20

1271835C1

AXLE PIN

PIN, 8 mm OD

1шт.

21

1288305C1

PLUG

expansion, 40 mm

1шт.

22

1271786C1

SPACER

8 mm OD x 9 mm long

2шт.

23

1271787C1

SPACER

8 mm OD x 13 mm long

2шт.

24

1271788C1

SPACER

12 mm OD x 9 mm long

1шт.

25

444693

PLUG,Hex Soc, 1/4"-18, Brass

hex socket, automotive, 1/4-18 pipe

2шт.

26

1346680C1

BEARING SET,52 mm ID x 20 mm

SET Liner, main bearing, crankshaft, standard

1шт.

26

13466881C1

SET Liner, main bearing, crankshaft, 0.25 undersize

1шт.

26

1346682C1

BEARING SET,51.5 mm ID x 22.5 mm

SET Liner, main bearing, crankshaft, 0.50 undersize

1шт.

26

1346683C1

BEARING SET,51.25 mm ID x 23.75 mm

SET Liner, main bearing, crankshaft, 0.75 undersize

1шт.

27

1991003C1

PLATE

rear

1шт.

28

1991004C1

GASKET

rear plate

1шт.

29

1271827C1

AXLE PIN

PIN dowel, 8 mm OD x 10 mm

1шт.

30

1273131C1

BOLT,Hex, M10 x 1.25 x 40mm

BOLT hex, with washer, 12 x 28 mm

6шт.

31

1992820C1

DIPSTICK

oil level, Replaces 1991005C1

1шт.

32

1273144C1

BOLT,Hex, M12 x1.25 x 25mm

BOLT hex, 12 x 25 mm

4шт.

33

444693

PLUG,Hex Soc, 1/4"-18, Brass

hex socket, automotive, 1/4-18 pipe

1шт.

35

1992799C1

GUIDE

oil level gauge

1шт.

36

1992800C1

O-RING,8.8mm ID x 1.9mm Width

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT, block heater

1шт.

42

245564C1

ELECTRICAL WIRE

CORD ASSEMBLY, block heater

1шт.
