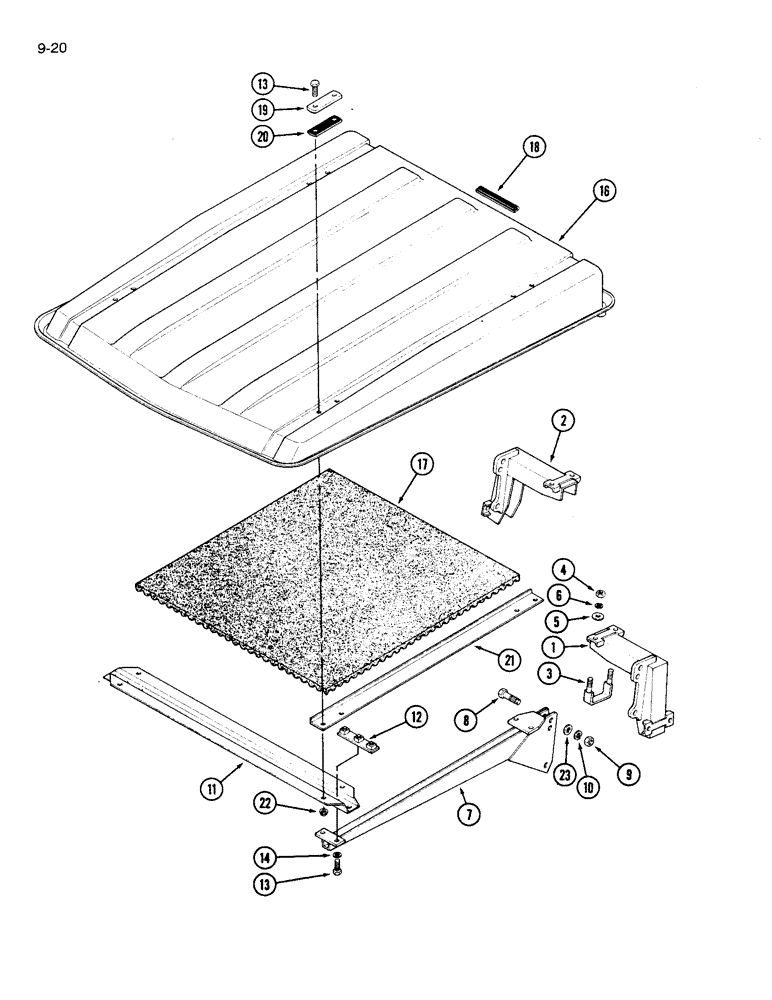

Запчасти Case IH 1120 (9-20) - SUNSHADE (09) - CHASSIS/ATTACHMENTS

99050C91

SUNSHADE ASSEMBLY, tractor, machinery item, Includes Ref. 1 - 23

1шт.

1

1962715C1

SUPPORT ASSY.

SUPPORT left

1шт.

2

1962714C1

SUPPORT ASSY.

SUPPORT right

1шт.

3

1962713C1

BOLT (SPREADER),M12 x 1.25 x 75mm

U-BOLT sunshade mounting

4шт.

4

525-5121

NUT,M12 x 1.25, Cl 8

hex, 12 mm

8шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

7

1962712C1

FUNNEL

FRAME roof

2шт.

8

514-920

BOLT,Hex, M14 x 1.5 x 20mm, Cl 8.8, Full Thd

hex, 14 mm - 1.50 x 20 mm

4шт.

9

525-5122

NUT,M14 x 1.5, Cl 8

hex, 14 mm

4шт.

10

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

4шт.

11

1962711C1

FUNNEL

FRAME roof

2шт.

12

1962710C1

CLAMP

frame

4шт.

13

514-719

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

hex, 10 mm - 1.25 x 20 mm

12шт.

14

892-11010

LOCK WASHER,M10

20шт.

16

1962709C1

ROOF

sunshade, Includes Ref. 17 and 18

1шт.

17

1962717C1

SLEEVE

LINER roof

1шт.

18

1962718C1

MOLDING

roof

1шт.

19

1962764C1

CLAMP

STRAP mounting

4шт.

20

1962765C1

MISC PACKAGING

SEAL strap

4шт.

21

1962766C1

PLATE ASSY.

FRAME liner

2шт.

22

525-5120

NUT,M10, Cl 8

hex, 10 mm

8шт.

23

895-11014

WASHER,M14 x 28 x 2.5

flat, 15.5 x 28 x 2.5 mm

4шт.
