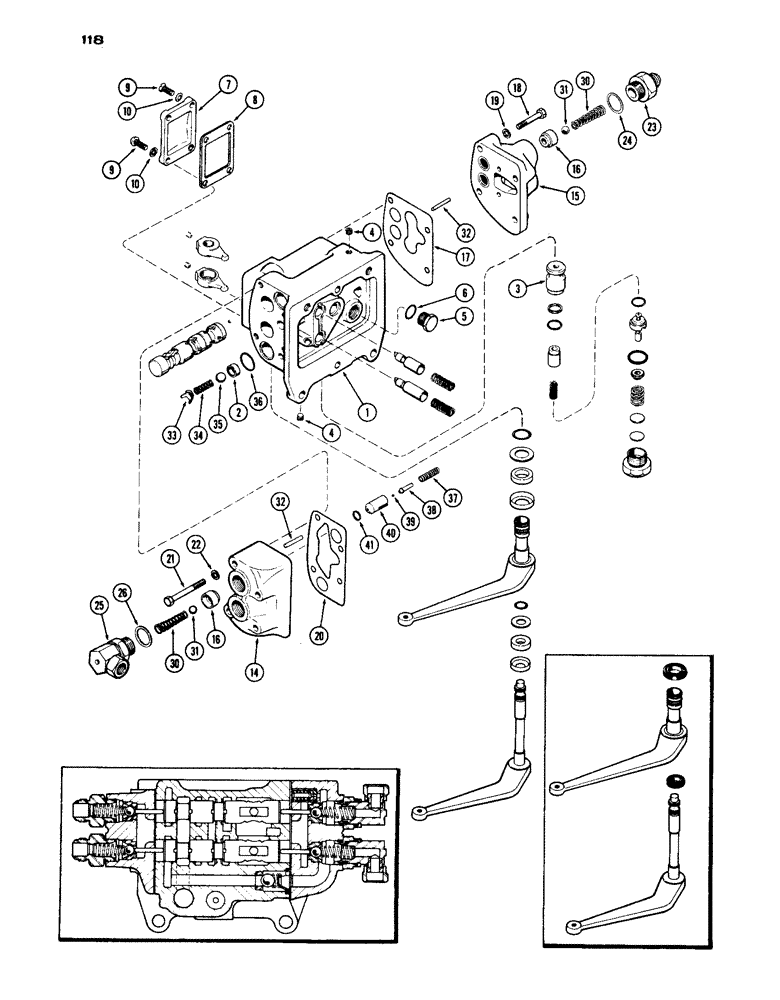

Запчасти Case IH 1030 (118) - A57571 AUXILIARY VALVE, FIRST USED TRANSMISSION SERIAL NUMBER 2219218 (06) - POWER TRAIN

A57571

VALVE

ASSY. - aux., non-float w/tag (Not Illust.)

1шт.

1

A57534

BODY

ASSY. - hyd. valve, Includes Ref: 2 - 4

1шт.

2

A57537

SEAT

- ball, check valve

4шт.

3

A57536

SLEEVE

- relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- body (1/8" P.T., hex. sckt. hd.)

4шт.

5

86512512

PLUG,7/8" - 14 ORB

- Body port., Incl. Ref: 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

7

A57552

CAP

- valve body

1шт.

8

A160690

GASKET

- cap (See Item 75)

1шт.

Part of P/N A25264 Repair Kit

1шт.

9

75-414

SCREW,Rd, 1/4" x 7/8"

- (1/4 x 7/8" N.C. rd. hd.)

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

A57565

VALVE

HEAD ASSY. - aux. valve, right hand

1шт.

15

A57564

VALVE

HEAD ASSY. - aux. valve, left hand, Includes Ref: 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - aux. valve head

2шт.

17

A57560

GASKET

- left hand head

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- L.H. head (3/8 x 2-3/4" N.C. hex.)

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A57561

GASKET

- right hand head (See Item 75)

1шт.

Part of P/N A25264 Repair Kit

1шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

RH head Hex, 3/8"-16 x 1 3/4", G5

2шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- R.H. head (3/8 x 2-1/2" N.C. hex.)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A57569

FITTING

- remote valve outlet, L.H. head

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - hyd. fitting (3/4" O.D.)

2шт.

25

A57562

ADAPTER

ASSY. - swivel, aux. valve, R.H.

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - hyd. fitting (3/4" O.D.)

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - inside, hyd. fitting (Not Illust.)

1шт.

30

A30877

SPRING

- return, ball check

4шт.

31

211-13

BALL,1/2" Dia

- hyd. valve return 1/2" Dia

4шт.

32

A57559

SPOOL

- hyd. valve aux.

4шт.

33

A27364

GUIDE

- spring, aux. valve ball check

4шт.

34

A27452

SPRING

- check, aux. valve outlet

4шт.

35

211-15

BALL,5/8" Dia

- hyd. valve body seat (5/8" steel)

4шт.

36

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - ball check spring guide

4шт.

37

A57396

SPRING

- relief valve ball

2шт.

38

A57568

GUIDE

- ball, thermal valve

2шт.

39

211-3

BALL,1/8" Dia

- (1/8" steel)

2шт.

40

A57570

SEAT

- thermal valve

2шт.

41

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal valve

2шт.
