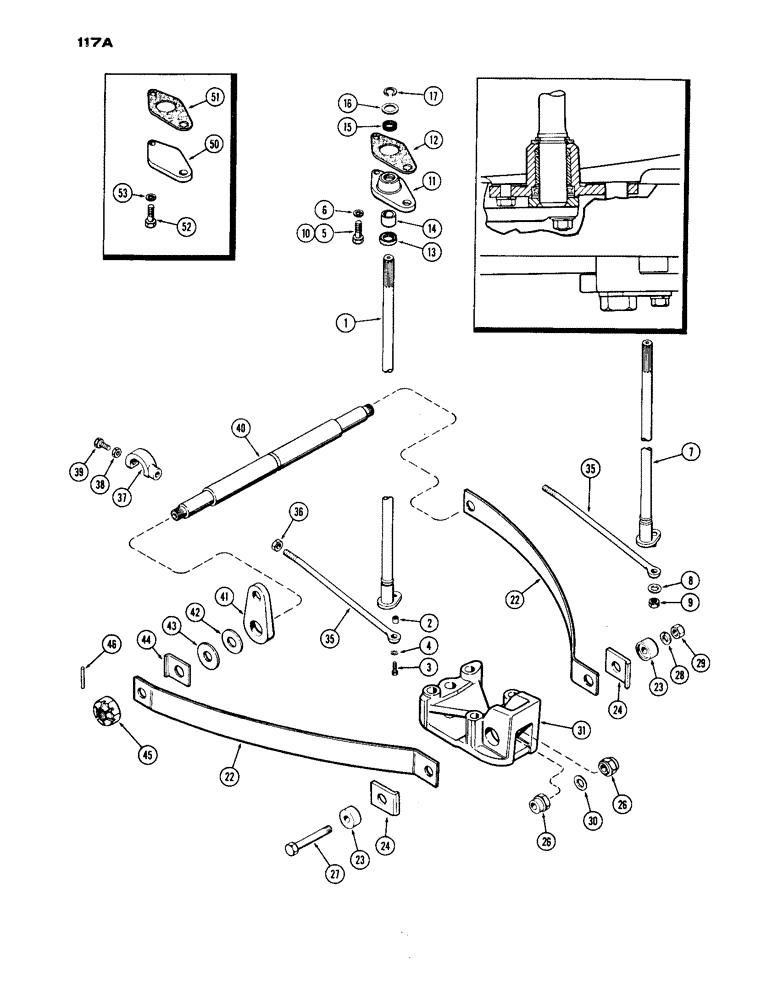

Запчасти Case IH 1030 (117C) - WISHBONE CONVERSION KIT (06) - POWER TRAIN

A57793

KIT

WISHBONE KIT, Includes Ref: 2 - 21

1шт.

2

A57581

SPRING

- wishbone

2шт.

3

A57585

WASHER

- clamp, wishbone adjusting

2шт.

4

A57584

RING

- cam adjusting

2шт.

5

A57582

CLAMP

CAM - wishbone adjusting

2шт.

6

A57583

CLAMP

- wishbone adjusting

2шт.

7

A57943

STEP BOLT

BOLT - wishbone spring cam

2шт.

8

A57956

BRACKET

- drawbar pivot pin

1шт.

9

138-2042

PIN,5/16" x 1 1/4", Coiled

clamp washer 5/16" x 1 1/4", Coiled

2шт.

10

A57587

BAR

- wishbone cross

1шт.

11

A34921

WASHER

- draft arm pivot, inner (1-1/2" I.D.)

2шт.

12

A57588

RING

- snap, wishbone cross bar

2шт.

13

A57589

PLATE

- rear, wishbone spacer

2шт.

14

A33404

NUT

- wishbone retaining

2шт.

15

138-2014

PIN,3/16" x 1 7/8", Coiled

nut retaining 3/16" x 1 7/8", Coiled

2шт.

16

15-1080

X

BOLT - drawbar bracket (5/8 x 5" N.C. hex.)

2шт.

17

15-1284

BOLT

- drawbar bracket (3/4 x 5-1/4" N.C. hex.)

1шт.

17

15-1288

BOLT - drawbar bracket (3/4 x 5-1/2" N.C. hex.)

1шт.

19

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32")

1шт.

20

A57932

PIN

- pivot, drawbar

1шт.

21

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32")

1шт.
