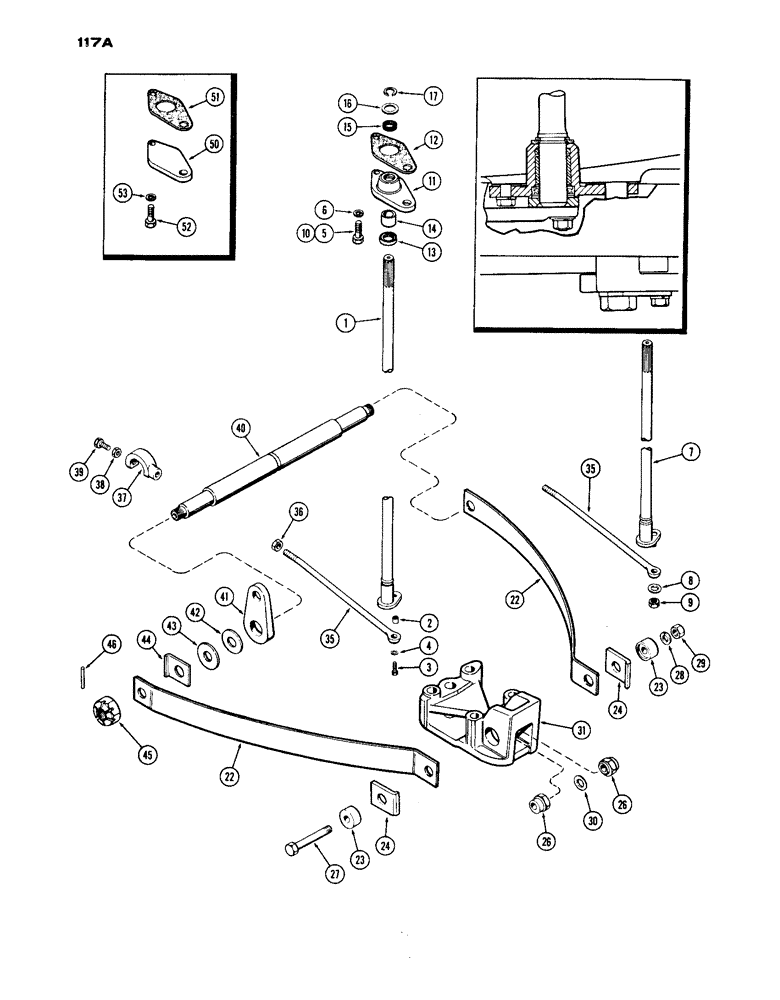

Запчасти Case IH 1030 (117A) - DRAFT-O-MATIC LOWER SENSING LINKAGE, USED PRIOR TO TRANSMISSION SERIAL NUMBER 2221982 (06) - POWER TRAIN

1

A34834

SHAFT

- draft signal (1st used trac. ser. no. 8302912)

1шт.

2

A34836

SPACER

- signal arm (1st used trac. ser. no. 8302912)

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Spacer Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" std. Wrot)

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Support (used w/ A34834 shaft) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

A33395

SHAFT

- draft signal (used prior to trac. ser. no. 8302912) (Order 1-A34834, 1-A34836, 2-92-5 & 2-13-514)

1шт.

8

95-6

WASHER,3/8"

- link, (7/16 x 1 x 5/64")

1шт.

9

131-590

LOCK NUT

NUT - (3/8" N.C. flex-loc)

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support, used w/ A33395 shaft Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

11

A32203

BUSHING

SUPPORT - signal shaft

1шт.

12

A32210

GASKET

- support

1шт.

13

A23903

OIL SEAL

- oil (1 x 1-1/2 x 1/4")

1шт.

14

A31082

BUSHING

BEARING - support (1 x 1-1/4 x 1")

1шт.

15

A9394

RING

QUAD RING - support (1 x 1-1/4 x 9/64")

1шт.

16

B18275

WASHER

- signal shaft (1-1/32 x 1-1/2")

1шт.

17

A33315

RING

- snap, signal shaft ret.

1шт.

22

A34597

VALVE SPRING

SPRING - wishbone (See Note)

2шт.

23

A34463

SPACER - wishbone adj.

2шт.

24

A34748

SPACER - wishbone spring

2шт.

26

A34750

CAM

- eccentric, wishbone adj. L.H. or R.H. (Replaces A34465)

2шт.

27

113-729

X

BOLT - wishbone (3/4 x 5" N.C. hex.)

1шт.

28

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

29

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex.)

1шт.

30

195-45

WASHER,3/4"

1шт.

30

A26436

WASHER - cam adjusting (25/32 x 1-3/8 x 18 Ga.)

1шт.

31

A34460

BRACKET - drawbar (See Fig. 148)

1шт.

35

A33405

LINK

- draft signal control

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- link lock (1/2" N.C. half hex.)

1шт.

37

A33006

LOCK

- control link

1шт.

38

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. half hex.)

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Lock Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

40

A34466

BAR - cross, wishbone

1шт.

41

A32953

LINK

- cross bar

2шт.

42

A34921

WASHER

- draft arm pivot, inner (1-1/2" I.D.)

2шт.

43

A34469

WASHER - draft arm pivot, outer (1" I.D.)

2шт.

44

A34749

PLATE

- inside wishbone, rear

2шт.

45

A33404

NUT

- wishbone ret.

2шт.

46

138-2014

PIN,3/16" x 1 7/8", Coiled

nut retainer 3/16" x 1 7/8", Coiled

2шт.

50

A32387

COVER - signal shaft (used w/out hitch)

1шт.

51

A32210

GASKET

- signal shaft cover

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.
