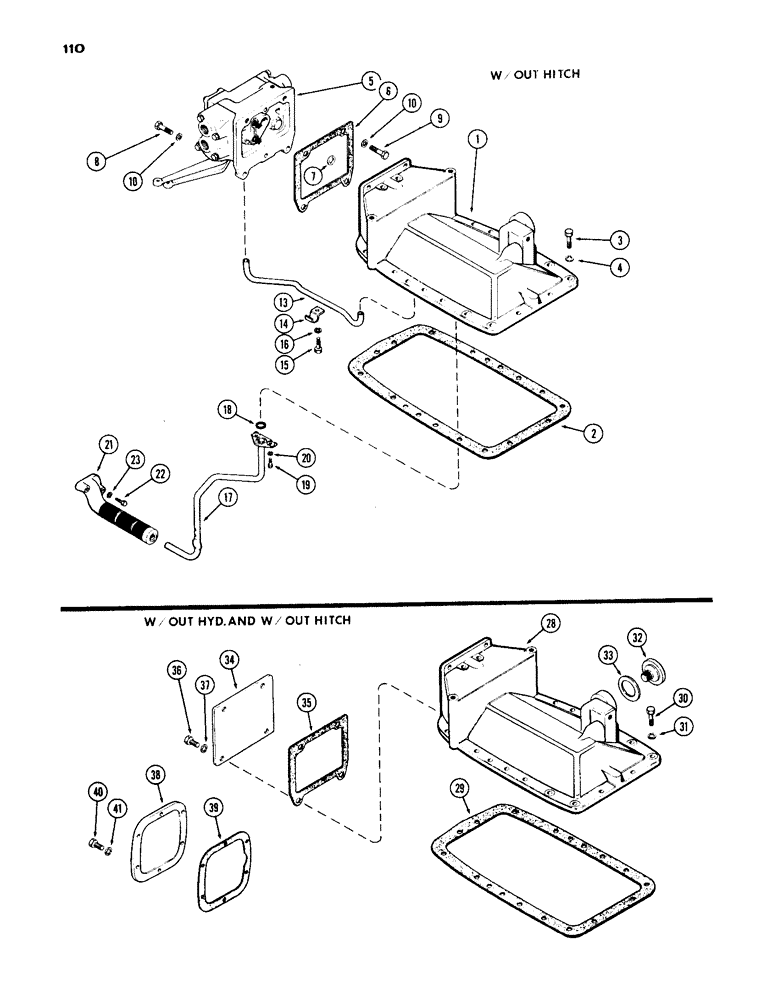

Запчасти Case IH 1030 (110) - TRANSMISSION COVERS AND HYDRAULIC CIRCUIT WITHOUT HITCH (06) - POWER TRAIN

1

A33520

COVER - trans. case, rear

1шт.

2

A32299

GASKET

- trans. case cover

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

4

92-8

LOCK WASHER,1/2"

12шт.

5

A57571

VALVE

ASSY. - auxiliary (See Fig. 118 & 120)

1шт.

5

A34699

VALVE

ASSY. - auxiliary (See Fig. 121A & 121C)

1шт.

6

A32349

GASKET

- auxiliary valve

1шт.

7

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- aux. valve (21/32 x 29/32 x 9/64")

1шт.

8

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

A33521

PIPE CLAMP

TUBE - aux., valve return

1шт.

14

A33554

CLIP - return tube

2шт.

15

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

A34481

TUBE - hyd. oil return

1шт.

18

A32343

SEAL

- return tube (47/64 x 1-13/64 x 13/64")

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Return tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A34483

ELBOW

STRAINER ASSY. - inlet elbow

1шт.

22

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

- strainer (5/16 x 2" N.C. hex.)

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

28

A33520

COVER - trans. case, rear, without hitch or hydraulics, used prior to trac. ser. no. 8310335

1шт.

29

A32299

GASKET

- trans. case cover, without hitch or hydraulics, used prior to trac. ser. no. 8310335

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover, transmission, without hitch or hydraulics, used prior to tractor S/N 8310335 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

31

92-8

LOCK WASHER,1/2"

transmission covers without hitch or hydraulics, used prior to trac. ser. no. 8310335 1/2"

12шт.

32

A32355

COVER - hyd. oil filter opening, transmission covers without hitch, used prior to trac. ser. no. 8310335

1шт.

33

A32356

GASKET - filter opening cover, transmission covers without hyd. or hitch, used prior to trac. ser. no. 8310335

1шт.

34

A32357

COVER - aux. valve opening, transmission covers without hydraulics or hitch, used prior to trac. ser. no. 8310335

1шт.

35

A32349

GASKET

- aux. valve opening cover, transmisson covers without hydraulics or hitch, used prior to trac. ser. no. 8310335

1шт.

36

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Cover, Transmission cover without hydraulics or hitch, used prior to tractor S/N 8310335

2шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- cover (1/2 x 1-1/2" N.C. hex.), transmission covers without hydraulics or hitch, used prior to tractor S/N 8310335

2шт.

37

92-8

LOCK WASHER,1/2"

transmission covers without hydraulics or hitch, used prior to trac. ser. no 8310335 1/2"

4шт.

38

A32354

COVER - hyd. pump hole, transmission covers without hitch, used prior to trac. ser. no. 8310335

1шт.

39

A32096

GASKET

- hyd. pump hole cover, transmission covers without hitch, used prior to trac. ser. no. 8310335

1шт.

40

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, transmission covers without hydraulics or hitch, used prior to trac. S/N 8310335 Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

41

92-6

LOCK WASHER,3/8"

transmission covers without hydraulics or hitch, used prior to trac. ser. no. 8310335 3/8"

6шт.
